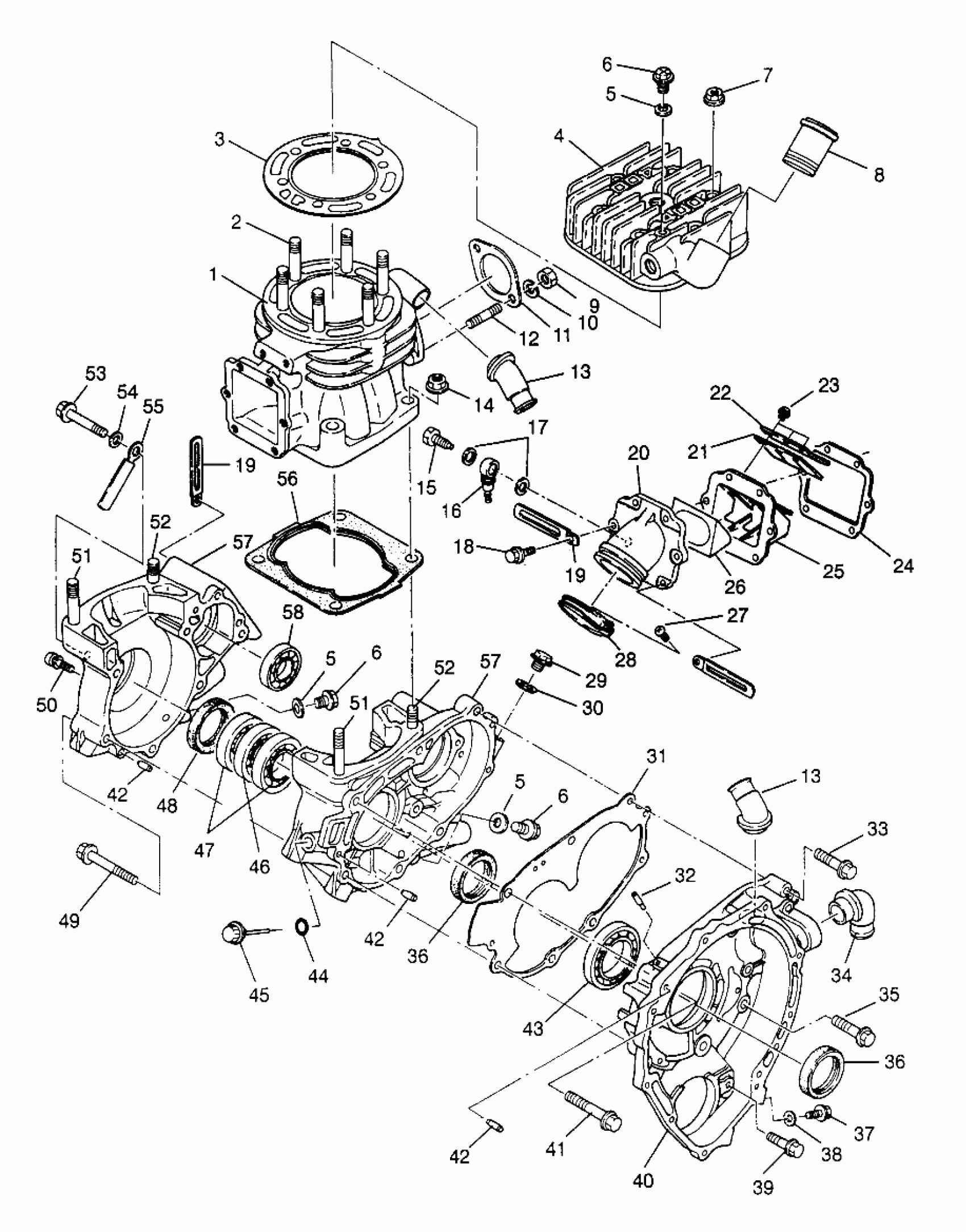

Polaris 400L 6X6 - W968740 CRANKCASE and CYLINDER 6X6 400L W968740 and 6X6 400L Norwegian N968740 (4935963596D009) Diagram

#

Description
Price

1

CYLINDER Substituted by 3086753 (Incl. 2, 12, 13)

3085276

Unavailable

2

Stud

3084138

Unavailable

3

GASKET,HEAD (Head)

3084731

Unavailable

4

HEAD, CYLINDER Substituted by 3086755 (Incl. 8)

3084730

Unavailable

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

6

PLUG, DRAIN

3083767

Unavailable

6

PLUG, DRAIN

3083767

Unavailable

6

PLUG, DRAIN

3083767

Unavailable

7

NUT-FLANGE(10)

3082910

Unavailable

8

Pipe, Water

3083452

Unavailable

9

NUT(10)

3080285

Unavailable

10

WASHER LOCK ,(10)

3080530

$3.17

11

GASKET,EXHAUST Substituted by 3084439

3084017

Unavailable

12

STUD (10)

3080016

$5.71

13

PIPE, 1 ELBOW Substituted by 3086746

3084129

$45.24

13

PIPE, 1 ELBOW Substituted by 3086746

3084129

$45.24

14

NUT-FLANGE(10)

3082911

$1.99

15

BOLT-BANJO

3083137

Unavailable

16

VALVE, CHECK

3083894

Unavailable

17

WASHER(10) Substituted by 7555998

3083138

$1.19

18

BOLT, FLANGE Substituted by 3086759

3084145

Unavailable

19

Clamp

3083590

$3.97

19

Clamp

3083590

$3.97

20

ADAPTER, CARB.

3085277

Unavailable

21

VALVE, REED(10)

3240064

Unavailable

22

Stopper

3240065

Unavailable

23

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

24

GASKET, REED VALVE,(10)

3084148

Unavailable

25

VALVE ASM., REED (Incl. 21-23)

3084147

Unavailable

26

STUFFER,(REED VALVE ASM.)

3240164

$12.39

27

SCREW,(10)

3081497

$2.38

28

BAND ASM. (Incl. 27)

3084144

Unavailable

29

PLUG Substituted by 3086749

3083453

Unavailable

30

GASKET

3082956

$4.84

31

GASKET,(CASE 3) Substituted by 3086748

3084727

Unavailable

32

Pipe, Breather

3084128

Unavailable

33

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

34

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

35

BOLT, FLANGE ,(10)

3084435

Unavailable

36

Seal, Oil

3084120

Unavailable

36

Seal, Oil

3084120

Unavailable

37

PLUG

3085152

Unavailable

38

GASKET,ALUMINUM(10)

3083482

Unavailable

39

Bolt, Flange

3084126

$1.98

40

CRANKCASE 3 Substituted by 3087149 (Incl. 13, 32, 34, 36-38, 42, 43)

3085278

Unavailable

41

Bolt, Flange

3084134

Unavailable

42

PIN, DOWEL Substituted by 3086838

3080103

$7.14

42

PIN, DOWEL Substituted by 3086838

3080103

$7.14

42

PIN, DOWEL Substituted by 3086838

3080103

$7.14

43

Bearing, Ball

3084131

Unavailable

44

O-Ring

3084733

Unavailable

45

GAUGE, OIL Substituted by 3085517 (Incl. 44)

3084732

Unavailable

46

Bearing, Ball

3084775

$43.65

47

Bearing, Ball

3084121

$39.68

48

Seal, Oil

3084725

Unavailable

49

BOLT, FLANGE Substituted by 3086742

3084125

Unavailable

50

SCREW & WASHER(10)

3084205

$3.97

51

Stud

3084118

Unavailable

51

Stud

3084118

Unavailable

52

Stud

3084119

$9.52

52

Stud

3084119

$9.52

53

Bolt, Flange

3084124

Unavailable

54

WASHER(10)

3080142

Unavailable

55

Clamp

3083384

Unavailable

56

GASKET,CYLINDER

3084729

$48.56

57

CRANKCASE ASM. Substituted by 3086740 (Incl. 5, 6, 36, 39, 42, 46-49, 51-53, 58)

3084774

Unavailable

57

CRANKCASE ASM. Substituted by 3086740 (Incl. 5, 6, 36, 39, 42, 46-49, 51-53, 58)

3084774

Unavailable

58

Bearing, Ball

3084123

Unavailable
