Partiron

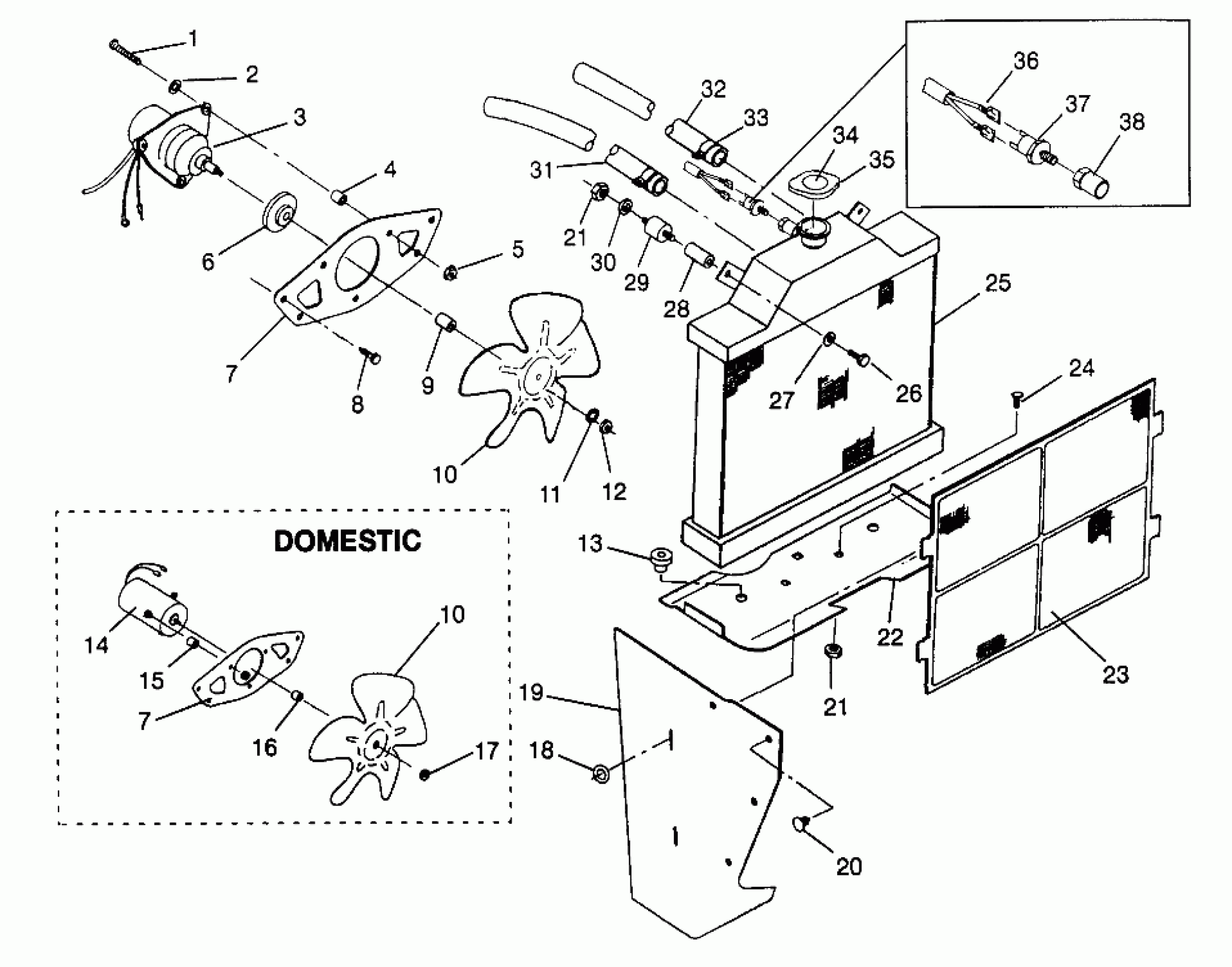

Polaris 400L 6X6 - W968740 COOLING SYSTEM 6X6 400L - W968740 and 6X6 400L Norwegian - N968740 (4935963596A011) Diagram

#

Description
Price

1

SCREW

7517221

$1.83

2

WASHER, FLAT(10)

7558201

$5.79

3

MOTOR, FAN Substituted by 3084266 (Incl. 9, 12)

2410006

Unavailable

3

MOTOR, COMPL Substituted by 3084266

3084267

Unavailable

4

SPACER, FAN BRKT.

5333073

$3.81

5

Nut

7547004

$4.76

6

COVER

3083951

Unavailable

7

BRKT,COOL.FAN,BLK

5224741-067

Unavailable

7

BRKT,COOL.FAN,BLK

5224741-067

Unavailable

8

BOLT(10)

7512232

$1.19

9

BUSHING

3083950

Unavailable

10

BLADE, FAN

5240822

$57.14

10

BLADE, FAN

5240822

$57.14

11

WASHER(10) Substituted by 7558301

7555776

$1.19

12

NUT

3083952

Unavailable

13

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

14

MOTOR,FAN,LIQ.COOLED (Domestic)

4170009

Unavailable

15

SPACER,FAN BRKT.

5432294

$3.97

16

SPACER

5333457

Unavailable

17

NUT

7542154

Unavailable

18

O RING

5410607

Unavailable

19

SHIELD,LH RADIATOR

5431188

Unavailable

19

SHIELD,RH RADIATOR

5431189

Unavailable

20

CLIP-FIR TREE,DART,6.35MM

7670090

$1.19

21

NUT-LOCK(10)

7542122

$1.19

21

NUT-LOCK(10)

7542122

$1.19

22

GUARD,LOW.RADIATOR

5222547-067

Unavailable

23

COVER,RADIATOR,W/MESH

5431610

Unavailable

24

BOLT(10)

7512193

$2.38

25

RADIATOR

1240006

Unavailable

26

SCREW(10)

7512113

$3.97

27

WASHER(10)

7552605

$5.69

28

Spacer, Mount

5020572

$8.73

29

Mount, Rubber

3110032

Unavailable

30

WASHER(10)

7558301

$1.19

31

HOSE,ENG,UPPER

5410570

$48.56

32

HOSE,LOWER ENGINE Substituted by 5411173

5410572

$97.13

33

CLAMP,HOSE,(10)

7080614

$7.14

34

DECAL(CPSC),RAD.CAP

7073068

Unavailable

35

CAP, RADIATOR Substituted by 2511270

2511189

$24.27

36

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

37

SWITCH ASM,THERMAL FAN L/C

4110189

$61.74

38

FITTING,HEX BUSH

7052116

Unavailable
