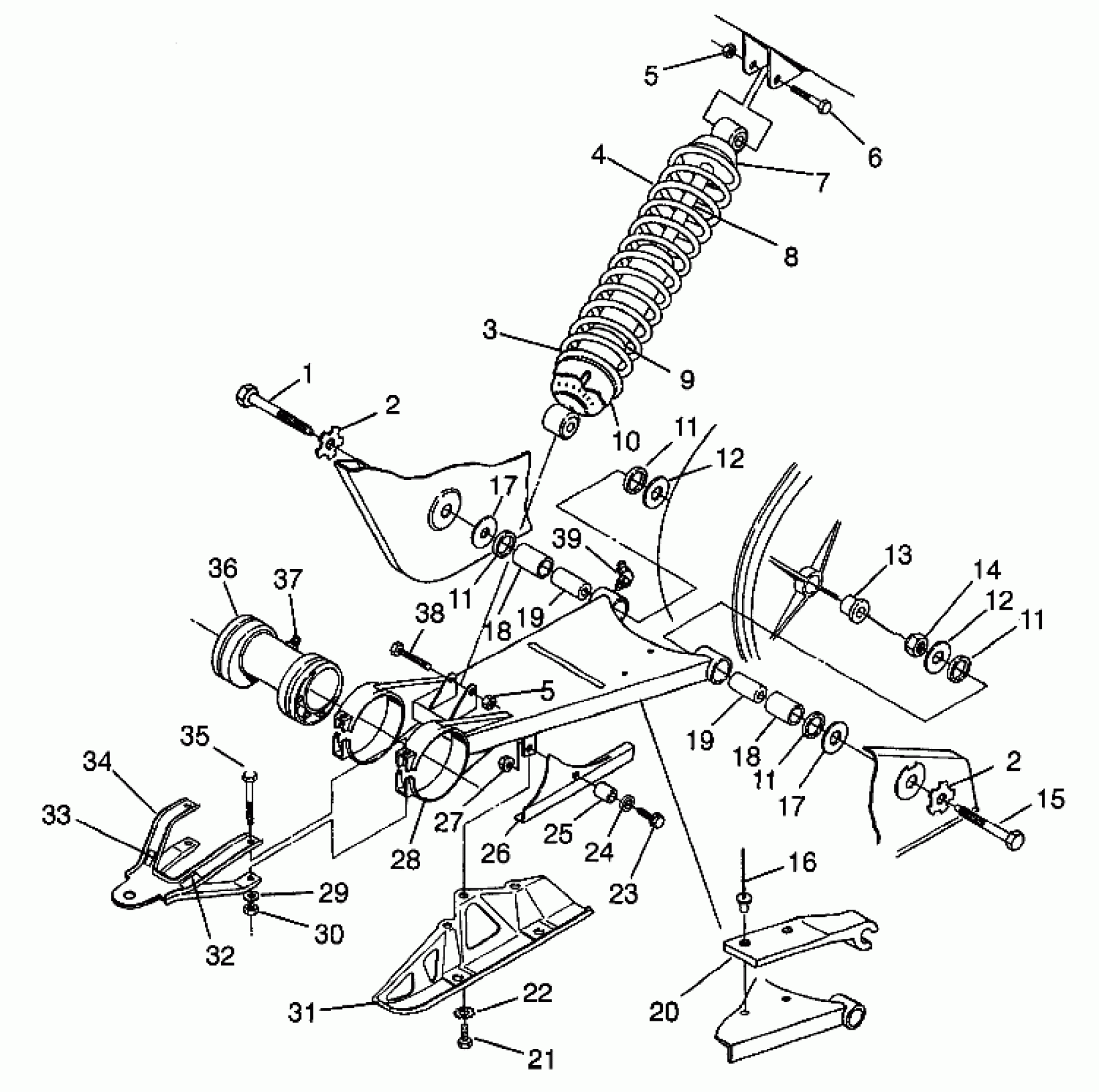

Polaris 400L 4X4 - W948140 SWING ARM/SHOCK MOUNTING 4X4 400L W948140 (4926772677B013) Diagram

#

Description
Price

1

BOLT, SHOULDER

7512701

$23.99

2

PLATE,BOLT LOCK

5220958

$35.99

2

PLATE,BOLT LOCK

5220958

$35.99

3

ADAPTER,SPRING,SEAT

5630351

Unavailable

4

SPRING,COMP,REAR

7041204-067

$64.99

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

BOLT(10)

7515415

$1.49

7

RETAINER, SHOCK

5222118

Unavailable

8

SHOCK, REAR Substituted by 7041448

7041218

$146.71

9

SLEEVE,SPRING PROTECTOR

5431032

$31.99

10

CAM,ADJUSTING SPRING

5630334

$32.37

11

SEAL,OIL

3610016

$28.32

11

SEAL,OIL

3610016

$28.32

11

SEAL,OIL

3610016

$28.32

11

SEAL,OIL

3610016

$28.32

12

WASHER(10)

7555779

Unavailable

12

WASHER(10)

7555779

Unavailable

13

Bushing, Pivot (See Pg., Ref.)

-------

Unavailable

14

NUT,CROWN LOCK(10)

7542601

Unavailable

15

BOLT, SHOULDER

7512702

Unavailable

16

RIVET(50)

7621433

$1.49

17

BUSHING, MACH.(10)

7555752

Unavailable

17

BUSHING, MACH.(10)

7555752

Unavailable

18

BEARING,SWINGARM

3576512

Unavailable

18

BEARING,SWINGARM

3576512

Unavailable

19

BUSHING,SWING ARM

5010255

Unavailable

19

BUSHING,SWING ARM

5010255

Unavailable

20

GUIDE, CHAIN

5431310

$32.37

21

SCREW(10)

7512252

Unavailable

22

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

23

SCREW-FLANGED(10)

7515304

$5.59

24

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

25

Bushing

5332828

$9.59

26

GUARD, CHAIN

5430776

$35.99

27

NUT LOCK(10)

7542321

$1.49

28

ARM, SWING (Incl. 11, 18, 39)

1580048-067

Unavailable

29

WASHER(10)

7555883

$3.99

30

NUT, LOCK,(10)

7542503

$10.39

31

GUARD, SWING ARM

1040166-067

Unavailable

32

DECAL,CHAIN TENSION Substituted by 7074752

7074177

Unavailable

33

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

34

KIT, ATV HITCH Substituted by 2873036

2200472

Unavailable

35

BOLT(10)

7512576

$7.99

36

HOUSING, AXLE

5130663

Unavailable

37

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

38

BOLT(10)

7515438

$4.79

39

FITTING, LUBE.

7080438

$10.39
