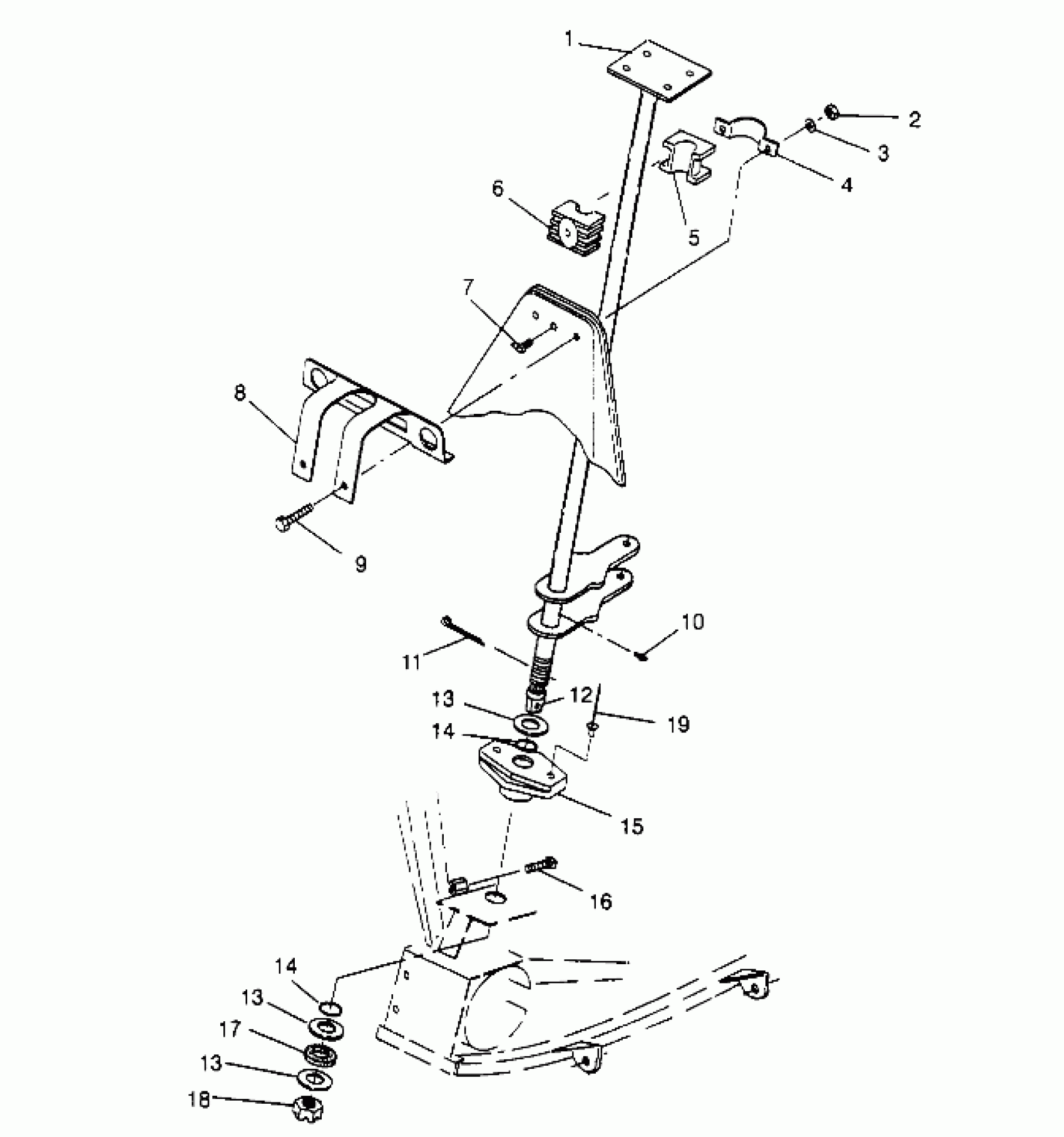

Polaris 400L 4X4 - W948140 STEERING POST ASSEMBLY 4X4 400L W948140 (4926772677B008) Diagram

#

Description
Price

1

POST,STEERING ASM. (Incl. 10,12)

1843043

Unavailable

2

NUT-5/16-18 NYLOK-Y

7542324

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

BRKT,UP.STRG.BUSH,BLK.

5222999-067

$32.37

5

BUSHING,STRG.CONSOLE Substituted by 5433416

5431572

$8.73

6

BUSHING,STRG.CONSOLE Substituted by 5433415

5431573

$8.48

7

FITTING, ZERK(10) (90o)

7080510

$5.59

8

BRKT, IGN. PANEL

5220965-067

Unavailable

9

SCREW(10)

7512310

$2.39

10

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

PIN, COTTER(10)

7661633

Unavailable

12

PLUG,GREASE,STRG.

5431574

Unavailable

13

BUSHING(10)

7555878

$7.19

13

BUSHING(10)

7555878

$7.19

13

BUSHING(10)

7555878

$7.19

14

O-RING

5410772

$5.59

14

O-RING

5410772

$5.59

15

BUSHING,LOWER STRG.

5431570

$44.99

16

SCREW, SPEC.

5020601

Unavailable

17

SPACER, STRG.POST

5431571

Unavailable

18

NUT, HEX, SLOTTED(10)

7543203

$9.59

19

RIVET, MONOBOLT (50)

7661632

$4.79
