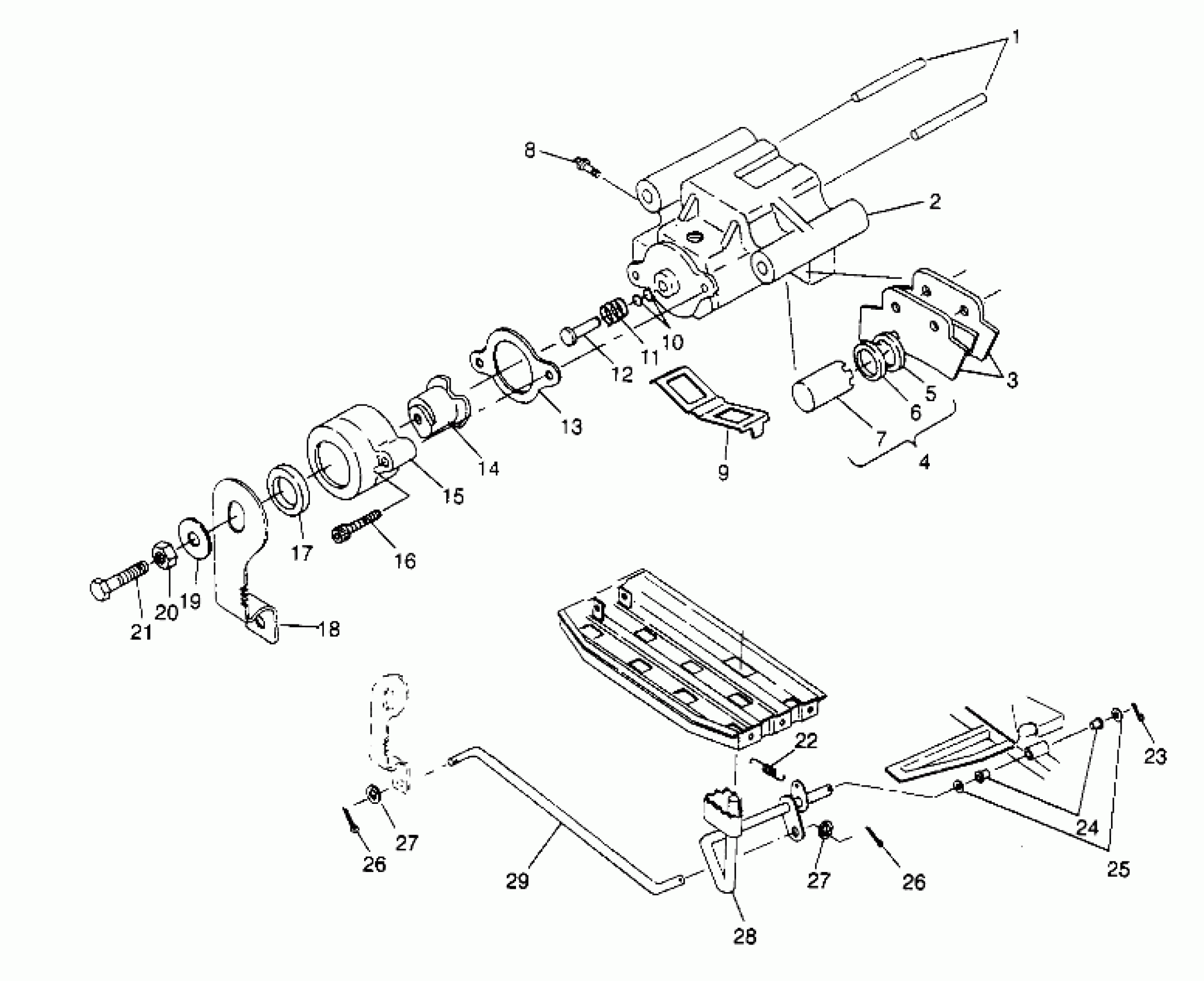

Polaris 400L 4X4 - W948140 REAR BRAKE ASSEMBLY 4X4 400L W948140 (4926772677C004) Diagram

#

Description
Price

1

PIN, DOWEL(10)

7661820

$13.99

2

CALIPER,BRAKE,MACH. Substituted by 5131117

5130946

Unavailable

3

KIT,BRAKEPAD,REAR

2200464

$31.99

4

KIT-PISTON & SEAL (Incl. 5-7)

2200463

$87.99

5

Square Ring (.134 Sq.)

-------

Unavailable

6

Square Ring (.099 Sq.)

-------

Unavailable

7

PISTON,BRAKE Substituted by 2200463

5020667

$84.93

8

SCREW,BLEEDER

7080352

$3.19

9

SPRING,ANTI-RATTLE

5222232

Unavailable

10

O RING-.364X.504X.07

5410542

Unavailable

11

SPRING,BRAKE,COMP.

7041219

$24.99

12

PIN,BRAKE CALIPER

5020666

Unavailable

13

GASKET, BRAKE

5830009

$9.99

14

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

15

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

16

SCREW(10)

7512173

Unavailable

17

SEAL, BRAKE

3610026

$7.99

18

ARM,BRAKE CALIPER

5240624

Unavailable

19

WASHER, SPRING(10)

7555828

Unavailable

20

NUT(10)

7542129

$4.79

21

BOLT

7515145

Unavailable

22

SPRING-EXHAUST(10)

7042029

$4.84

23

COTTER PIN(10)

7661401

$1.49

24

BUSHING-PEDAL PIVOT

5431107

$8.79

25

WASHER THRUST(10)

7558702

$1.59

26

PIN COTTER(10)

7661203

$1.49

26

PIN COTTER(10)

7661203

$1.49

27

WASHER(10)

7555806

$1.49

27

WASHER(10)

7555806

$1.49

28

FOOTBRAKE,BLK.

1910144-067

Unavailable

29

ROD, BRAKE

5224531

$51.99
