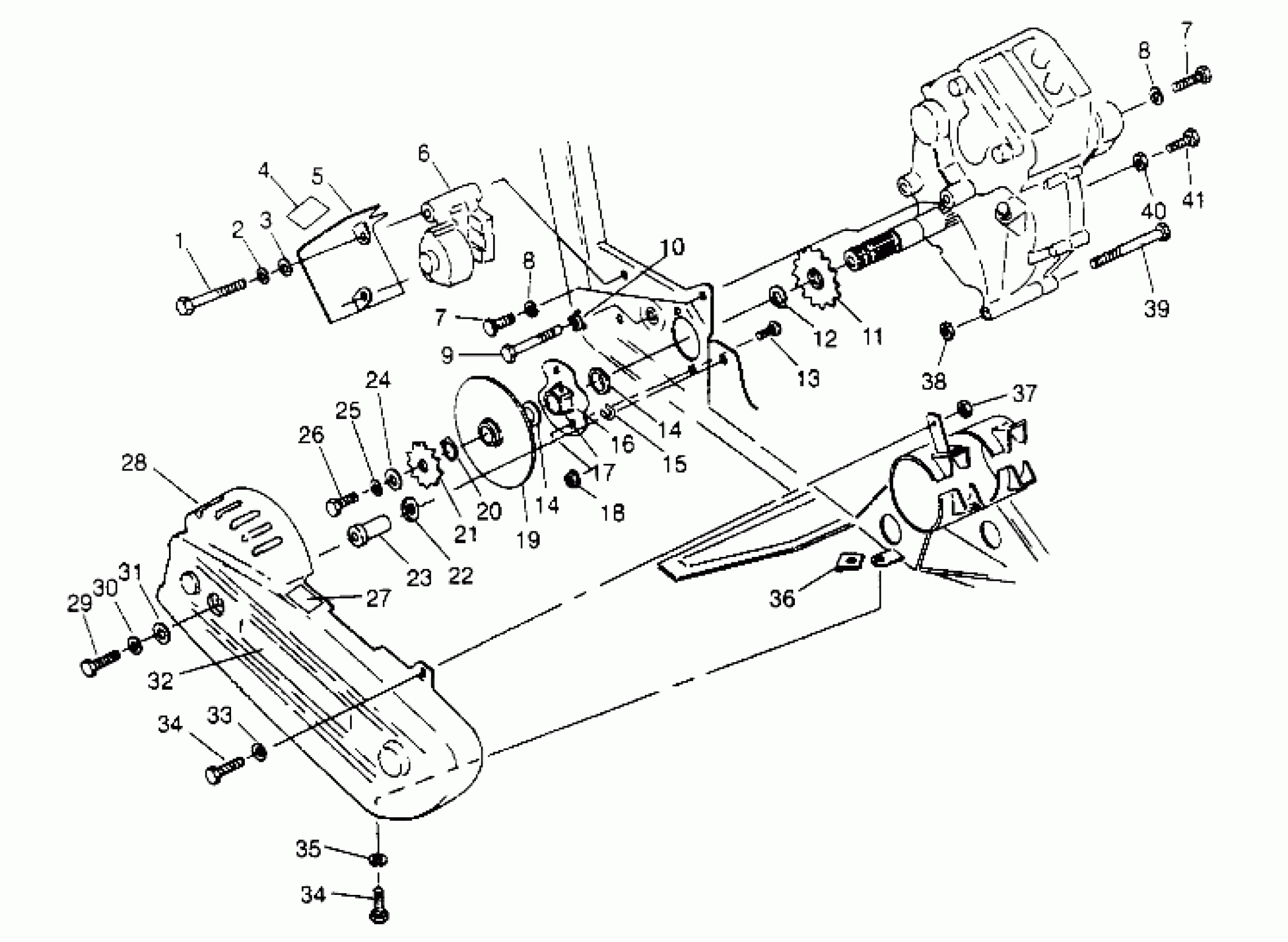

Polaris 400L 4X4 - W948140 GEARCASE/BRAKE and CHAIN COVER MOUNTING 4X4 400L W948140 (4926772677C003) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

7072790

Unavailable

5

SHIELD,R.CALIPER,BLK.

5240149-067

Unavailable

6

CAL.ASM,REAR BRAKE Substituted by 1910180

1910156

Unavailable

7

BOLT(10)

7515522

$3.97

7

BOLT(10)

7515522

$3.97

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

Bolt, Shoulder (See Pg. A27, Ref. 13)

----

Unavailable

10

Plate, Bolt Lock (See Pg. A27, Ref. 14)

----

Unavailable

11

Sprocket, (See Pg. A35, Ref. 46)

----

Unavailable

12

Ring, Retaining (See Pg. A35, Ref. 45)

----

Unavailable

13

BOLT,CARRIAGE(10)

7515484

Unavailable

14

SEAL, BRAKE

3610026

Unavailable

14

SEAL, BRAKE

3610026

Unavailable

15

SPACER,(10)

5210764

Unavailable

15

SHIM,.010,GEARCASE

5211065

Unavailable

15

SHIM,(.030)

5211517

Unavailable

16

BRG.ASM,O/P SHAFT

1590237

$84.99

17

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

18

NUT,FLANGE LOCK(10)

7542449

$3.97

19

Weld., Brake Disc (See Pg. A35, Ref. 39)

----

Unavailable

20

Ring, Retaining (See Pg.A35,Ref.40)

----

Unavailable

21

Sprocket, 11T (See Pg. A35, Ref. 41)

----

Unavailable

22

WASHER(10)

7555734

$0.79

23

SPACER, CHAIN GUARD

5333244

Unavailable

24

Washer (See Pg. A35, Ref. 42)

----

Unavailable

25

Washer, Spring Lock (See Pg. A35, Ref. 43)

----

Unavailable

26

Bolt (See Pg. A35, Ref. 44)

----

Unavailable

27

DECAL,LUBRICATION

7074214

Unavailable

28

GUARD,CHAIN,CTR.

5431717

Unavailable

29

BOLT(10)

7515346

$5.56

30

WASHER(10)

7552606

$4.76

31

WASHER(10) Substituted by 7558402

7555770

$0.99

32

DECAL,'DEMAND 4 DRIVE'

7073453

Unavailable

33

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

34

BOLT(10)

7512269

Unavailable

34

BOLT(10)

7512269

Unavailable

35

WASHER(10)

7552605

$5.69

36

NUT, SPEED(10)

7670060

$3.97

37

Nut, Nylok

7542122

$1.19

38

NUT LOCK(10)

7542403

Unavailable

39

BOLT(10)

7515472

$2.38

40

NUT(10)

7542404

$1.59

41

BOLT(10)

7515485

$3.02
