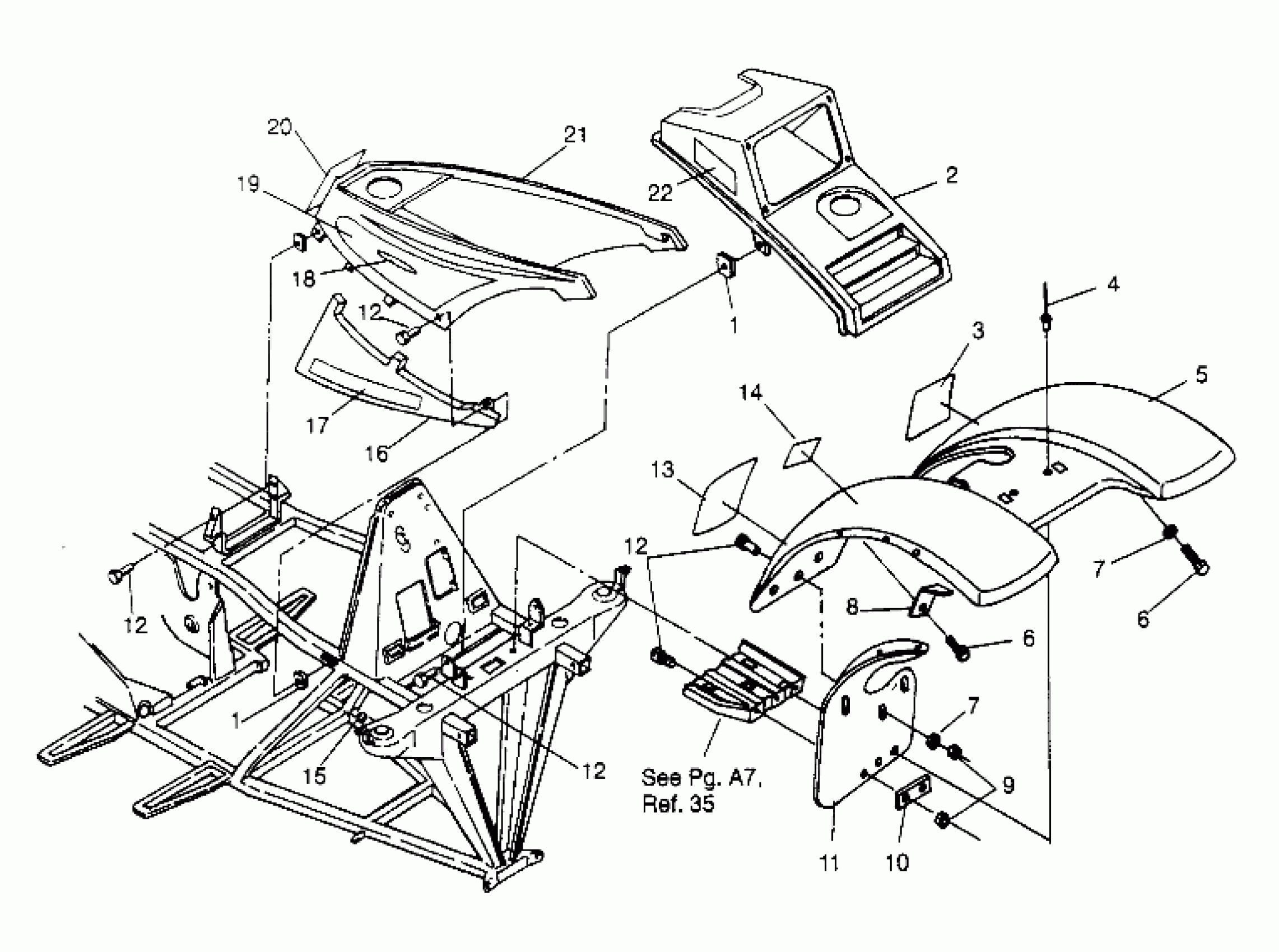

Polaris 400L 4X4 - W948140 FRONT CAB ASSEMBLY 4X4 400L W948140 (4926772677A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

COVER,(P.RED),H/L.

5431202-136

Unavailable

3

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

4

RIVET(50)

7621460

$1.49

5

CAB ASM,FR,4WH,GRY. (Incl. 3,13)

2631610-143

Unavailable

6

BOLT(10)

7512232

$1.49

6

BOLT(10)

7512232

$1.49

7

WASHER, FLAT(10)

7555859

$1.49

7

WASHER, FLAT(10)

7555859

$1.49

8

BRKT,FENDER/MUFFLER Substituted by 5222665

5222665-067

Unavailable

9

NUT-LOCK(10)

7542122

$1.49

10

BRKT, LH MUD FLAP

5211131-067

Unavailable

10

BRKT,RH MUD FLAP

5211020-067

Unavailable

11

MUDFLAP,LH,FRT.(350-6X6)

5850105

$32.54

11

MUDFLAP,RH,FRT.(350-6X6)

5850106

$35.24

12

BOLT, BLACK(10)

7512282

$1.49

12

BOLT, BLACK(10)

7512282

$1.49

12

BOLT, BLACK(10)

7512282

$1.49

12

BOLT, BLACK(10)

7512282

$1.49

13

DECAL,WARN(CPSC),DISCRET.

7074608

Unavailable

14

DECAL,SHIFT PATTERN

7074207

Unavailable

15

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

16

COVER,,LH(P.RED)SIDE Substituted by 5433382-136

5430970-136

Unavailable

16

COVER,RH(P.RED)SIDE Substituted by 5433579-136

5430971-136

Unavailable

17

DECAL,RH,SIDEPANEL

7074235

Unavailable

17

DECAL,LH,SIDEPANEL

7074234

Unavailable

18

DECAL,'LIQUID COOLED'

7074250

Unavailable

19

DECAL,RH,TANKSIDE

7074233

Unavailable

19

DECAL,LH,TANKSIDE

7074232

Unavailable

20

DECAL(CPSC),AGE WARN. Substituted by 7074827

7072933

Unavailable

21

COVER,FUELTANK,W/LOUVER

5431263-136

Unavailable

22

DECAL,'POLARIS'H/L POD

7074227

Unavailable
