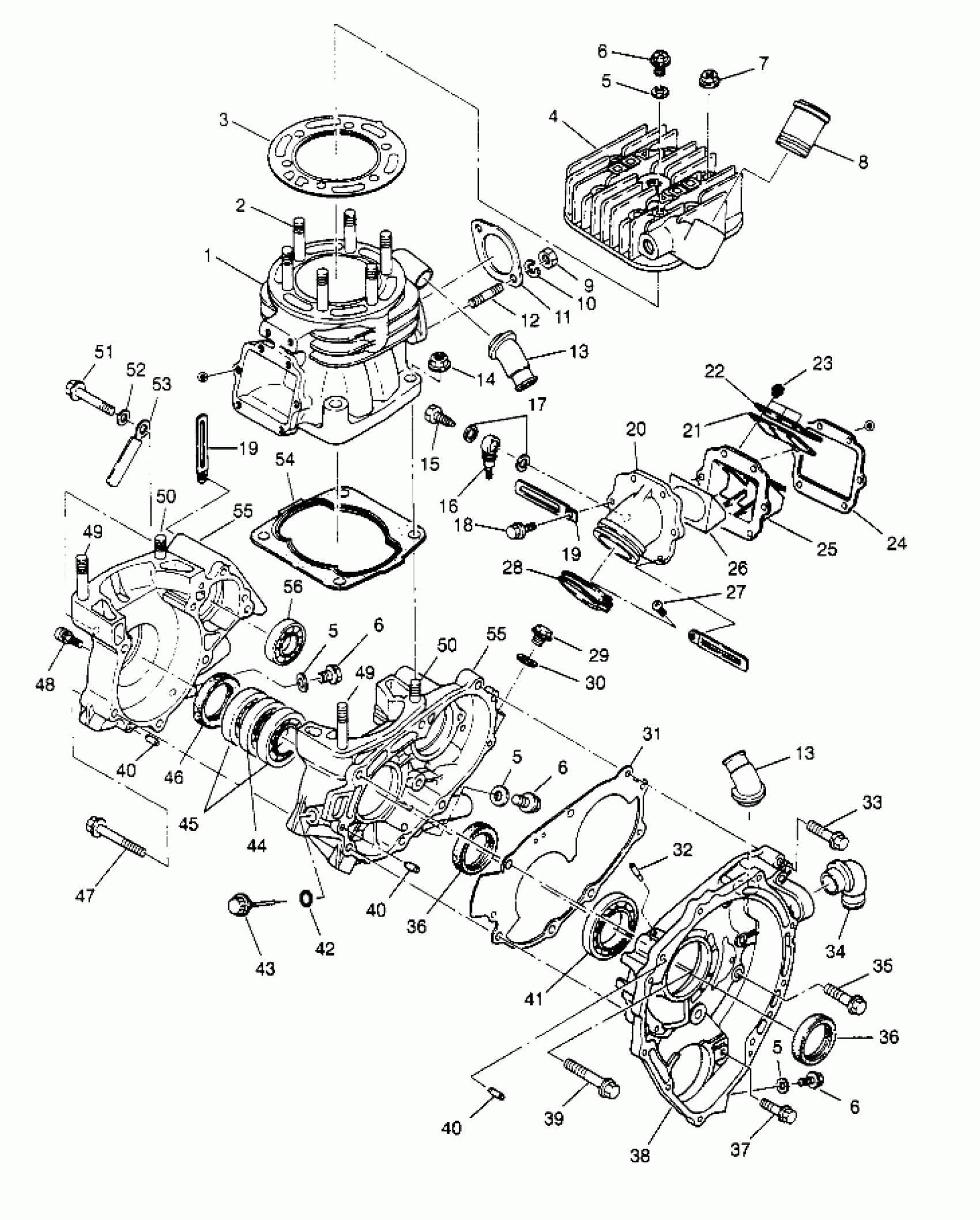

Polaris 400L 4X4 - W948140 CRANKCASE and CYLINDER 4X4 400L W948140 (4926772677C011) Diagram

#

Description
Price

1

CYLINDER (Incl. 2,12,13)

3084728

Unavailable

2

Stud

3084138

Unavailable

3

GASKET,HEAD (Head)

3084731

Unavailable

4

HEAD, CYLINDER Substituted by 3086755 (Incl. 8)

3084730

Unavailable

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

6

PLUG, DRAIN

3083767

Unavailable

6

PLUG, DRAIN

3083767

Unavailable

6

PLUG, DRAIN

3083767

Unavailable

6

PLUG, DRAIN

3083767

Unavailable

7

NUT-FLANGE(10)

3082910

Unavailable

8

Pipe, Water

3083452

Unavailable

9

NUT(10)

3080285

Unavailable

10

WASHER LOCK ,(10)

3080530

$3.17

11

GASKET,EXHAUST Substituted by 3084439

3084017

Unavailable

12

STUD (10)

3080016

$5.71

13

PIPE, 1 ELBOW Substituted by 3086746

3084129

$45.24

13

PIPE, 1 ELBOW Substituted by 3086746

3084129

$45.24

14

NUT-FLANGE(10)

3082911

$1.99

15

BOLT-BANJO

3083137

Unavailable

16

VALVE, CHECK

3083894

Unavailable

17

WASHER(10) Substituted by 7555998

3083138

$1.19

18

BOLT, FLANGE Substituted by 3086759

3084145

Unavailable

19

Clamp

3083590

$3.97

19

Clamp

3083590

$3.97

20

ADAPTER

3084143

Unavailable

21

VALVE, REED(10)

3240064

Unavailable

22

Stopper

3240065

Unavailable

23

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

24

GASKET, REED VALVE,(10)

3084148

Unavailable

25

VALVE ASM., REED (Incl. 21-23)

3084147

Unavailable

26

STUFFER,(REED VALVE ASM.)

3240164

$12.39

27

SCREW,(10)

3081497

$2.38

28

BAND ASM. (Incl. 27)

3084144

Unavailable

29

PLUG Substituted by 3086749

3083453

Unavailable

30

GASKET

3082956

$4.84

31

GASKET,(CASE 3) Substituted by 3086748

3084727

Unavailable

32

Pipe, Breather

3084128

Unavailable

33

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

34

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

35

BOLT, FLANGE ,(10)

3084435

Unavailable

36

Seal, Oil

3084120

Unavailable

36

Seal, Oil

3084120

Unavailable

37

Bolt, Flange

3084126

$1.98

38

CRANKCASE ASM. Substituted by 3085081 (Incl. 5, 6, 13, 32, 34, 36, 40, 41)

3084726

Unavailable

39

Bolt, Flange

3084134

Unavailable

40

PIN, DOWEL Substituted by 3086838

3080103

$7.14

40

PIN, DOWEL Substituted by 3086838

3080103

$7.14

40

PIN, DOWEL Substituted by 3086838

3080103

$7.14

41

Bearing, Ball

3084131

Unavailable

42

O-Ring

3084733

Unavailable

43

GAUGE, OIL Substituted by 3085517 (Incl. 42)

3084732

Unavailable

44

Bearing, Ball

3084775

$43.65

45

Bearing, Ball

3084121

$39.68

46

Seal, Oil

3084725

Unavailable

47

BOLT, FLANGE Substituted by 3086742

3084125

Unavailable

48

SCREW & WASHER(10)

3084205

$3.97

49

Stud

3084118

Unavailable

49

Stud

3084118

Unavailable

50

Stud

3084119

$9.52

50

Stud

3084119

$9.52

51

Bolt, Flange

3084124

Unavailable

52

WASHER(10)

3080142

Unavailable

53

Clamp

3083384

Unavailable

54

GASKET,CYLINDER

3084729

$48.56

55

CRANKCASE ASM. Substituted by 3086740 (Incl. 5, 6, 36, 37, 40, 45-47, 49-51, 56)

3084774

Unavailable

55

CRANKCASE ASM. Substituted by 3086740 (Incl. 5, 6, 36, 37, 40, 45-47, 49-51, 56)

3084774

Unavailable

56

Bearing, Ball

3084123

Unavailable
