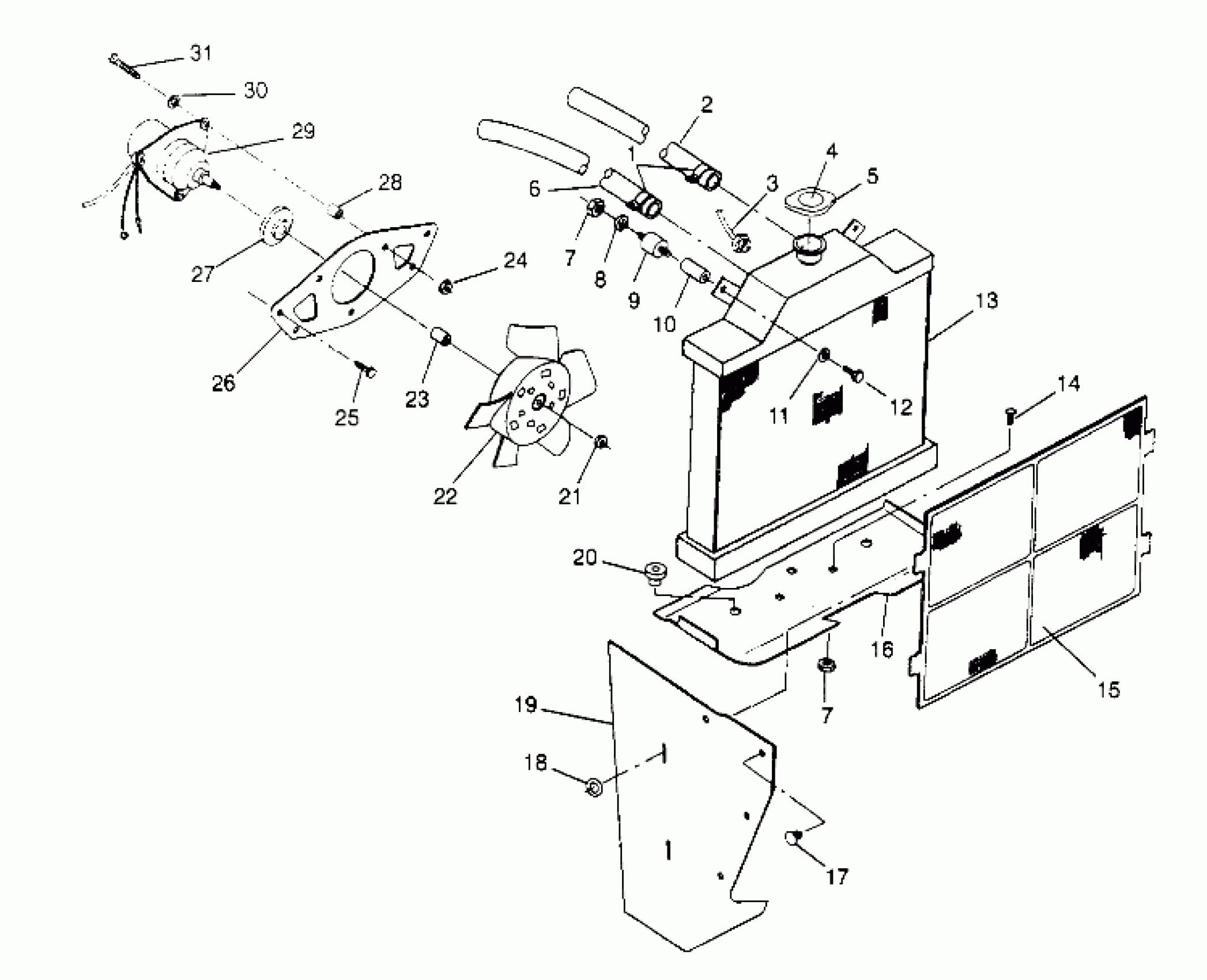

Polaris 400L 4X4 - W948140 COOLING SYSTEM 4X4 400L W948140 (4926772677A009) Diagram

#

Description
Price

1

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

2

HOSE,ENG,UPPER

5410570

$44.51

3

SWITCH,RADIATOR THERMO.

4110099

Unavailable

4

DECAL(CPSC),RAD.CAP

7073068

Unavailable

5

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

6

HOSE,LOWER ENGINE Substituted by 5411173

5410572

$88.79

7

NUT-LOCK(10)

7542122

$1.49

7

NUT-LOCK(10)

7542122

$1.49

8

WASHER(10)

7558301

$1.49

9

Mount, Rubber

3110032

$7.99

10

Spacer, Mount

5020572

$8.79

11

WASHER(10)

7552605

$5.27

12

SCREW(10)

7512113

$3.99

13

RADIATOR

1240006

Unavailable

14

BOLT(10)

7512193

$2.39

15

COVER,RADIATOR,W/MESH

5431610

Unavailable

16

GUARD,LOW.RADIATOR

5222547-067

Unavailable

17

CLIP,PLASTIC DART(10)

7670078

$3.19

18

O RING

5410607

$5.99

19

SHIELD,LH RADIATOR

5431188

Unavailable

19

SHIELD,RH RADIATOR

5431189

Unavailable

20

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

21

NUT

3083952

Unavailable

22

BLADE, FAN Substituted by 5240822

5431262

$57.14

23

BUSHING

3083950

Unavailable

24

NUT(10)

7541915

Unavailable

25

SCREW(10)

7512252

Unavailable

26

BRKT,COOLING FAN Substituted by 5224741-067

5222559-067

Unavailable

27

COVER

3083951

Unavailable

28

SPACER, FAN BRKT.

5333073

$3.83

29

MOTOR, FAN Substituted by 3084266

2410006

Unavailable

30

WASHER, FLAT(10)

7558201

$5.79

31

SCREW(10)

7511874

Unavailable
