- 400 SX RACING 2000
CARBURETOR

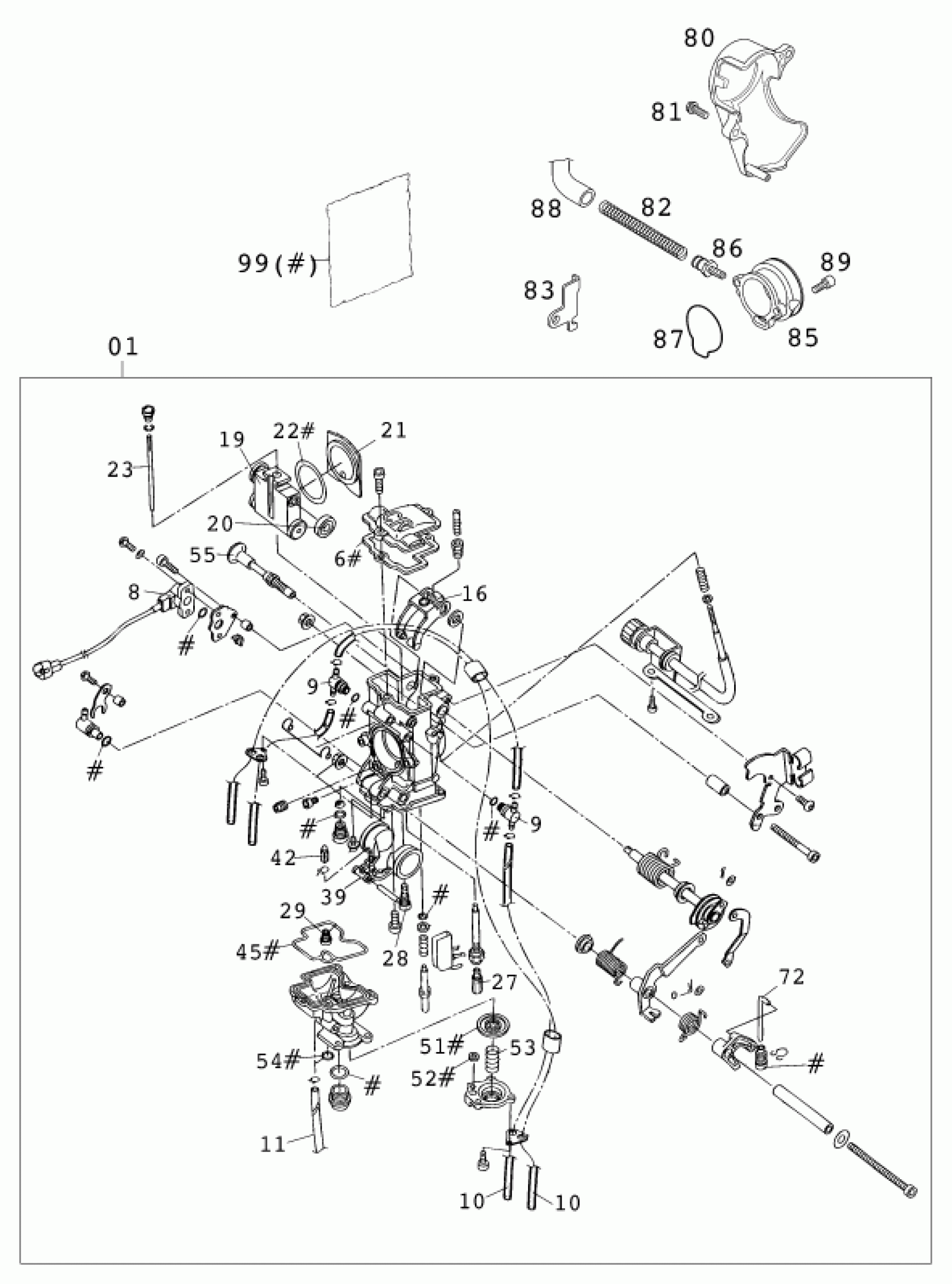

KTM 400 SX RACING 2000 CARBURETOR Diagram
#
1
OBERROHR LINKS 07
59031001000
Unavailable
6
GASKET CARBURETOR COVER
59031028000
$20.88
8
TPS-SENSOR FCR 200MM 99-03
59031077000
$172.55
9
T-JOINT BREATHER HOSE
59031083000
$12.11
10
PVC-HOSE 4X6MM
31007007101
$4.11
11
PVC-HOSE 3X5MM
52031137001
Unavailable
16
LINK ARM THROTTLE VALVE CPL.
59031035051
$78.24
19
THROTTLE VALVE 15 CPL.
59031035015
Unavailable
20
BUSHING THROTTLE VALVE
59031035050
$10.65
21
GASKET PLATE THROTTLE VALVE
59031035053
Unavailable
22
GASKET WASHER THROTTLE VALVE
59031035052
$17.94
23
JET NEEDLE KEIHIN OBDTM
590310340TM
$27.95
23
JET NEEDLE KEIHIN OBDVR
590310340VR
$29.07
27
MAIN JET 172
59031023172
Unavailable
27
MAIN JET 175
59031023175
$12.80
27
MAIN JET 178
59031023178
Unavailable
27
MAIN JET 180
59031023180
Unavailable
28
IDLE JET 48
59031607048
$16.92
28
IDLE JET 50
59031607050
Unavailable
28
IDLE JET 52
59031607052
$13.17
29
STARTER JET 85
59031051085
$16.73
39
FLOAT CPL.
59031009000
$45.98
42
FLOAT VALVE CPL.
59031020000
Unavailable
45
GASKET FLOAT CHAMBER
59031010000
$24.68
51
DIAPHRAGM ACCELERATOR PUMP
59031057000
$26.80
52
U-RING
59031058000
$3.08
53
COIL SPRING
59031059000
$7.38
54
O-RING
59031058100
$3.08
55
STARTER VALVE CPL.
59031048000
$64.15
72
ROD ACCELERATOR PUMP
59031061000
$23.65
80
CARBURETOR COVER RACING 2000
59031086000
$4.93
81
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
82
PRESSURE SPRING
32003073000
Unavailable
83
SLIDE STOP 24,5MM
59031029024
$3.64
85
INTAKE FUNNEL
59031040000
$5.70
86
CONNECTION SCREW WS=13
59031040050
Unavailable
87
O-RING FOR INTAKE FUNNEL
59031040010
$3.08
88
TUBE ENGINE BREATHER 0,71M
59031050000
Unavailable
89
AH SCREW DIN0912-M 5X12
0912050123
$2.05
99
GASKET SET FCR KEIHIN
59031099000
$123.50
