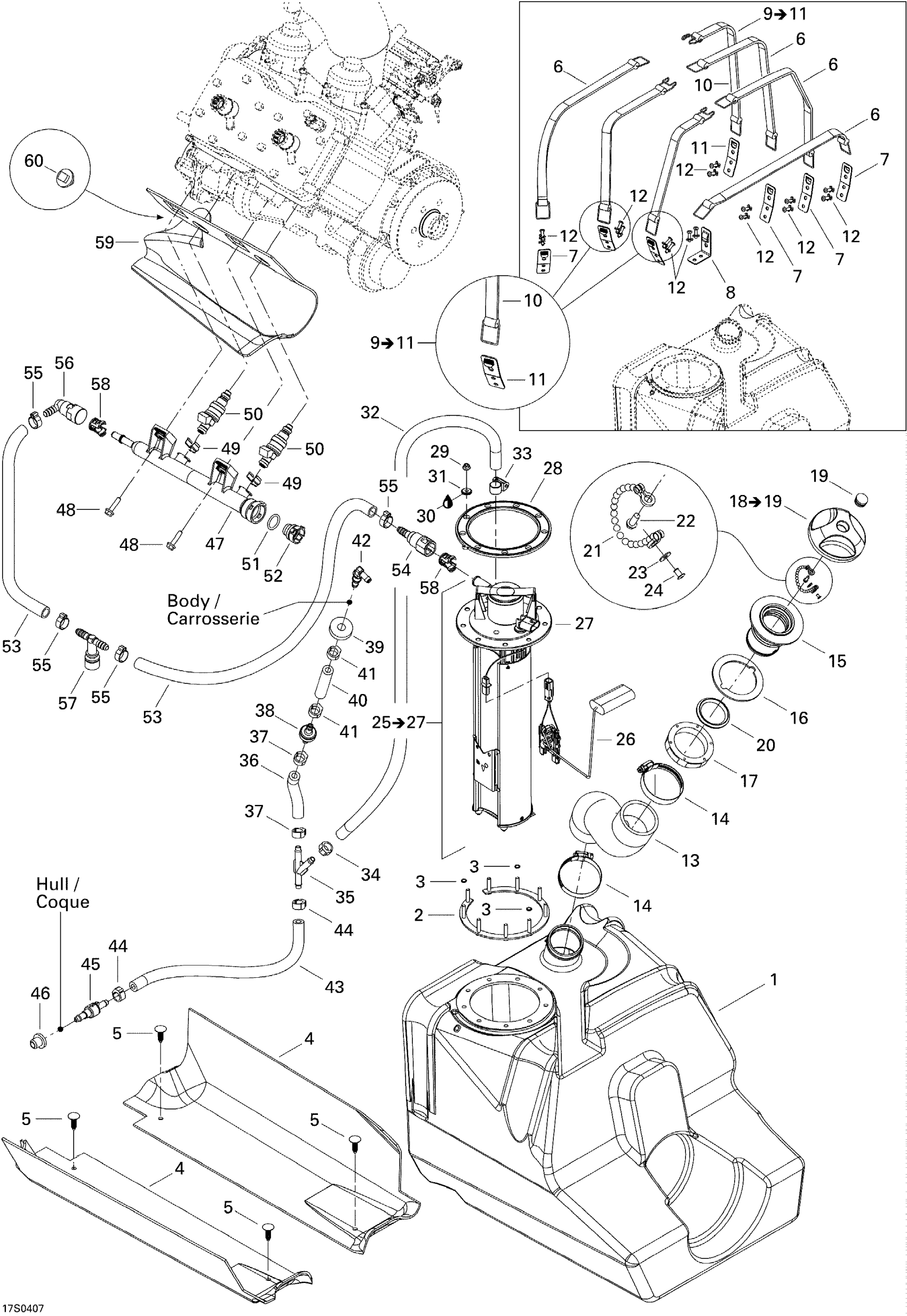

Sea-doo 3D RFI, 2004 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500608

Unavailable

2

C-Ring, 9 Studs

275500679

Unavailable

3

Push Nut

389804300

Unavailable

4

Rubber Pad

293830087

Unavailable

5

Black, Dart

293730006

Unavailable

6

Fuel Tank Strap

293850093

Unavailable

7

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

8

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

9

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

10

Fuel Tank Strap

293850094

Unavailable

11

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

12

Avdel Rivet 3/16"

293150037

Unavailable

13

Hose Filler

275500609

Unavailable

14

Tridon Clamp

293650023

Unavailable

15

Filler Neck, Fuel

275500231

Unavailable

16

Gasket

293250029

Unavailable

17

Filler Neck Nut, Fuel

211100012

Unavailable

18

Fuel Tank Cap, Black | Includes 26 to 27

275500430

Unavailable

19

Black, Snap Cap

293000034

Unavailable

20

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

21

Fuel Cap Chain

275500974

Unavailable

22

Screw K40 X 10

241140060

Unavailable

23

Flat Washer M3, Stainless

234032600

Unavailable

24

Pop Rivet 1/8"

390407900

Unavailable

25

Fuel Module Ass'y | Includes 26 to 29

275500610

Unavailable

26

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

27

Pump Module

275500624

Unavailable

28

Gasket

293250088

Unavailable

29

Hex. Flange Nut M5

250100071

Unavailable

30

Loctite 243, 10 ml

293800060

Unavailable

31

Rubber Washer

291001956

Unavailable

32

Was 275500549 Hose 1/4"

219704357

Unavailable

33

Tridon Gear Clamp

293650170

Unavailable

34

Oetiker Gear Clamp

293650025

Unavailable

35

Y-Fitting

293710059

Unavailable

36

Was 275500549 Hose 1/4"

219704357

Unavailable

37

Oetiker Gear Clamp

293650025

Unavailable

38

Check Valve

275500398

Unavailable

39

Grommet

709200285

Unavailable

40

Was 275500549 Hose 1/4"

219704357

Unavailable

41

Oetiker Gear Clamp

293650025

Unavailable

42

Elbow Male Connector

414580600

Unavailable

43

Was 275500549 Hose 1/4"

219704357

Unavailable

44

Oetiker Gear Clamp

293650025

Unavailable

45

Check Valve

275500505

Unavailable

46

Grommet

293720029

Unavailable

47

FUEL RAIL ASSY - Call your local BRP dealership

270600007

Unavailable

48

Flanged Hex. Screw M6 X 25, Scotch

207562560

Unavailable

49

Injector Circlip

270600096

Unavailable

50

Injector

270600095

Unavailable

51

O-RING - Call your local BRP dealership

293300042

Unavailable

52

CAP - Call your local BRP dealership

270600009

Unavailable

53

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

54

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

55

Oetiker Clamp

293650011

Unavailable

56

Quick Fitting 90° Ass'y

415128965

Unavailable

57

Bleed Valve

293710104

Unavailable

58

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

59

RAIL PROTECTOR - Call your local BRP dealership

275500441

Unavailable

60

Mount Dart

293730040

Unavailable
