- 230 Challenger SP 430, 2x215 1503SCIC, 2010
10- Electrical Accessories 3

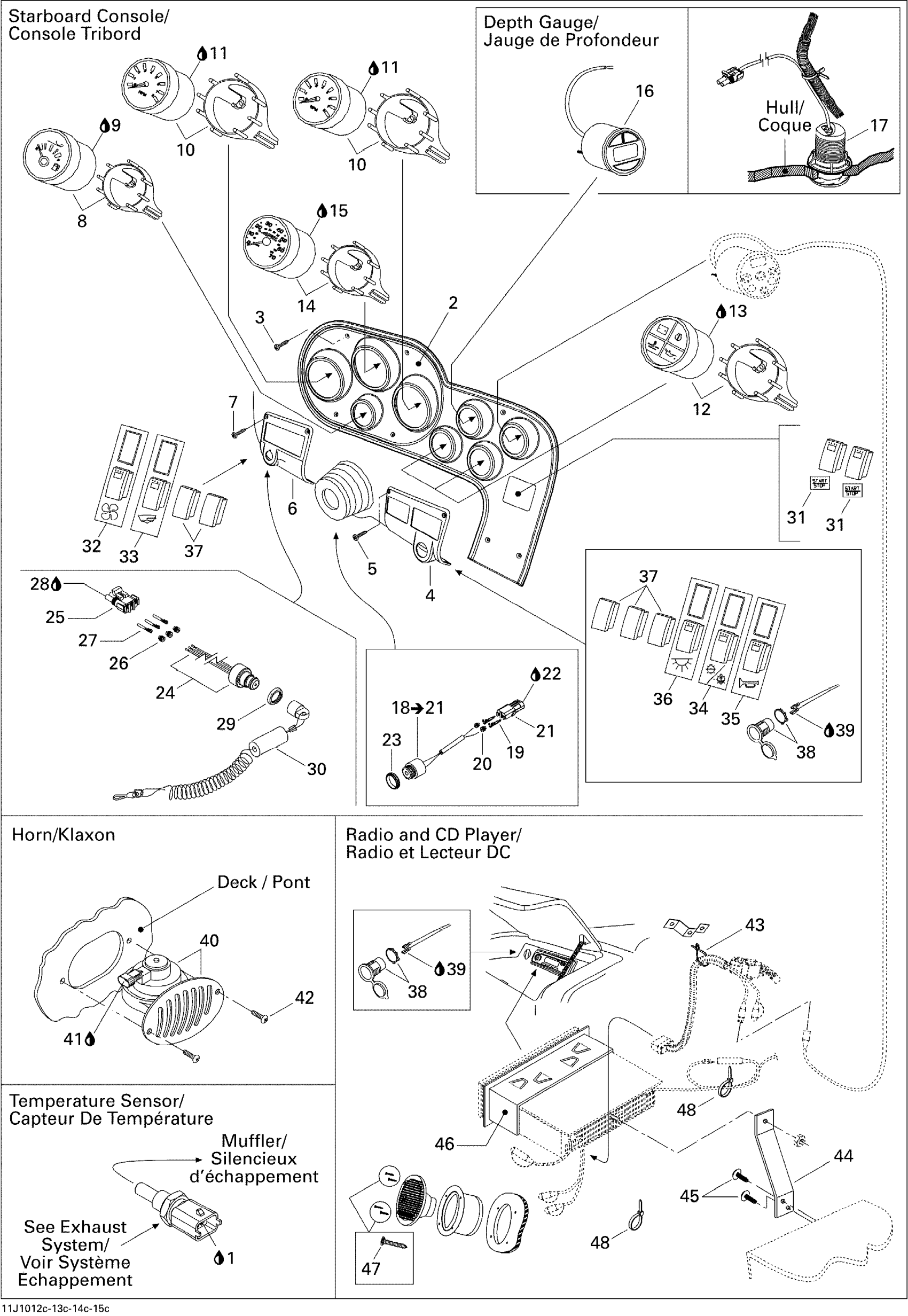

Sea-doo 230 Challenger SP 430, 2x215 1503SCIC, 2010 10- Electrical Accessories 3 Diagram
#
1
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
2
Fascia
204471334
Unavailable
3
Socket Head Screw M4 X 25
205342560
Unavailable
4
RH Panel Switch
204471173
Unavailable
5
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
6
LH PANEL SWITCH - Call your local BRP dealership
204471174
Unavailable
7
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
8
FUEL GAUGE - Call your local BRP dealership
204471163
Unavailable
9
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
10
Tachometer Gauge
204471162
Unavailable
11
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
12
ENGINE WARNING GAUGE - Call your local BRP dealership
204471201
Unavailable
13
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
14
SPEEDO GAUGE - Call your local BRP dealership
204471161
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16
Depth Gauge
204471157
Unavailable
17
Depth Sensor
204471292
$194.99
18
Buzzer Ass'y
204470913
$92.99
19
Male Terminal | XT Models
278000222
$3.19
20
Wire Seal
278000218
$4.39
21
Female Housing, 2 Circuits
278000217
$9.59
22
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
23
Buzzer Nut
278000707
Unavailable
24
Safety Switch This part replaces 278002325.
278002773
$114.99
25
Male Housing, 3 Circuits
278000273
$9.59
26
Wire Seal
278000218
$4.39
27
Female Terminal
278000223
$3.19
28
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
29
Safety Nut (DESS Switch)
278002963
$3.28
30
Safety Lanyard
204471206
$56.99
31
START/STOP SWITCH - Call your local BRP dealership
204471178
Unavailable
32
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
33
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
34
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
35
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
36
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
37
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
38
DC Outlet
710001248
$37.99
39
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
40
HORN - Call your local BRP dealership
204470801
Unavailable
41
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
42
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
43
Tie Wrap 142 mm
293750002
$1.25
44
RADIO SUPPORT - Call your local BRP dealership
204471284
Unavailable
45
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership
204100203
Unavailable
46
STEREO TRIM RING - Call your local BRP dealership
204471010
Unavailable
47
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
48
Tie Wrap 94 mm | 4X4
293750001
$1.03
