- 230 Challenger SP 430, 2x215 1503SCIC, 2010
09- Seat, Rear View

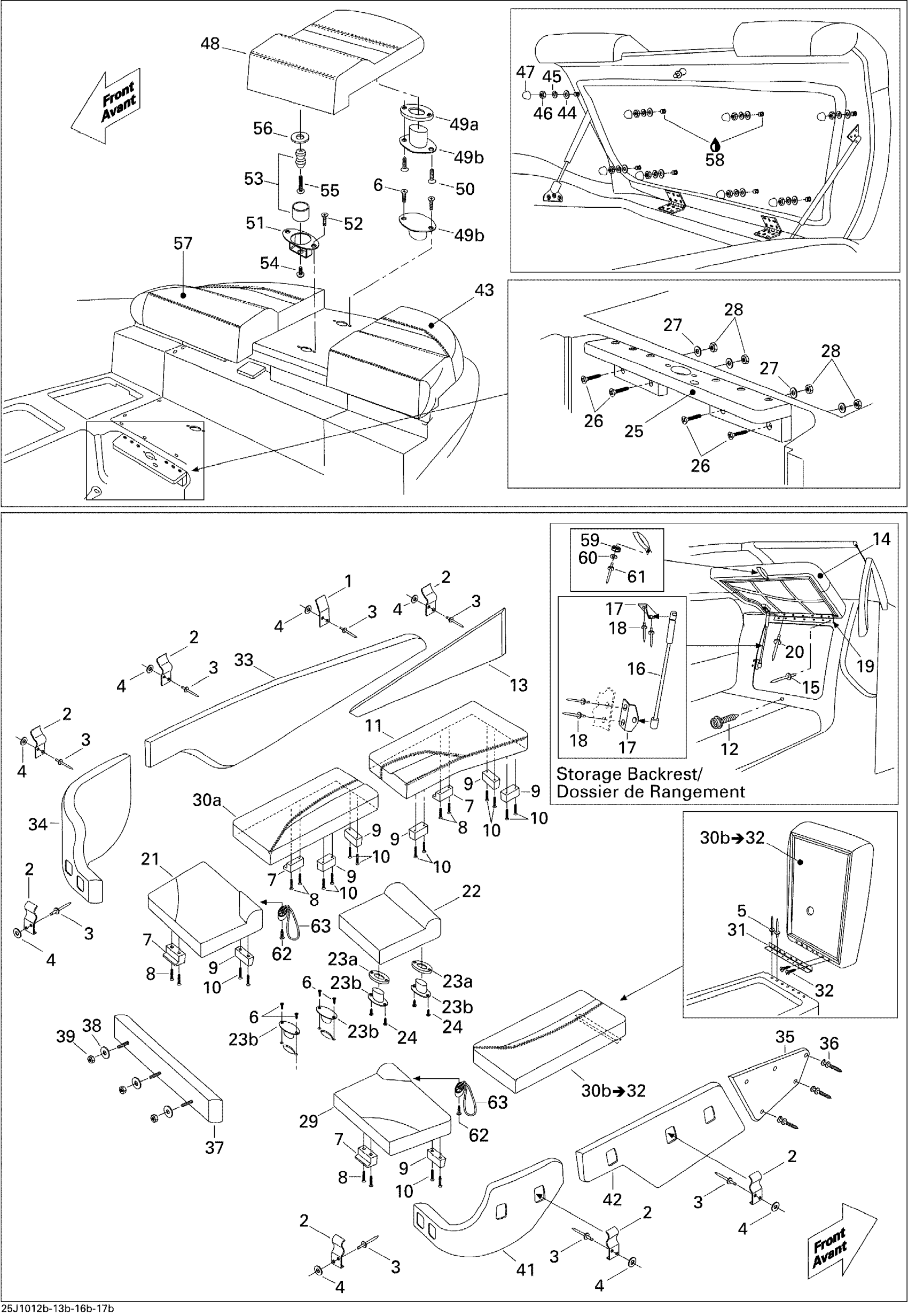

Sea-doo 230 Challenger SP 430, 2x215 1503SCIC, 2010 09- Seat, Rear View Diagram
#
1
RETAINING CLIP - Call your local BRP dealership
204611531
Unavailable
2
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
3
Pop Rivet 3/16"
293150043
$2.09
4
Stainless Flat Washer M6
234061600
$0.33
5
Pop Rivet 3/16"
293150008
$0.50
6
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
7
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
8
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
9
LATCH - Call your local BRP dealership
204611805
Unavailable
10
SCREW-PAN HD.#10-32 X 1-1/4 SS - Call your local BRP dealership | SE
204100219
Unavailable
11
SPOTTER'S SEAT CUSHION ASS'Y - Call your local BRP dealership
204614949
Unavailable
12
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
13
BACKREST ASSY/GUNNEL-SPOTTER - Call your local BRP dealership
269001966
Unavailable
14
BACKREST ASSY/STORAGE-SPOTTER - Call your local BRP dealership
269001967
Unavailable
15
Pop Rivet 3/16"
293150043
$2.09
16
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
17
Shock Bracket
204073074
$27.99
18
Pop Rivet 3/16"
293150008
$0.50
19
Hinge
204613980
Unavailable
20
Pop Rivet 3/16"
293150008
$0.50
21
Rear Cushion, Port Side
204614956
Unavailable
22
REAR CENTER CUSHION - Call your local BRP dealership
204614958
Unavailable
23a
SPACER MAGNET 1/8'' - Call your local BRP dealership
204130219
Unavailable
23b
MAGNETIC CATCH ASS'Y - Call your local BRP dealership
204614513
Unavailable
24
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
25
SEAT SUPPORT ASS'Y - Call your local BRP dealership
204614709
Unavailable
26
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
27
Flat Washer M6, Stainless
234062600
$0.77
28
Hex. Elastic Stop Nut M6
232561600
$1.15
29
REAR CUSHION, STARBOARD - Call your local BRP dealership
204614960
Unavailable
30a
Rear Side Cushion, Port Side
204614962
Unavailable
30b
REAR SIDE CUSHION, STARBOARD - Call your local BRP dealership | Includes 30b to 32
204614964
Unavailable
31
Hinge
204613980
Unavailable
32
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
33
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership | WAKE
269001973
Unavailable
34
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership | WAKE
269001974
Unavailable
35
REAR SIDE FLAT BACKREST, STARBOARD - Call your local BRP dealership
204614970
Unavailable
36
Dart 1", White | STD
204130264
$14.82
37
REAR CENTER BACKREST - Call your local BRP dealership | WAKE
269001976
Unavailable
38
Flat Washer 8 mm, Stainless
234082600
$2.43
39
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
41
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership | WAKE
269001977
Unavailable
42
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership | WAKE
269001978
Unavailable
43
Sundeck Cushion, Port Side
204615001
Unavailable
44
Flat Washer 8 mm, Stainless
234082600
$2.43
45
Lock Washer 1/4”
211200025
$1.29
46
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
47
Plastic Cap, White
204130008
Unavailable
48
SUNDECK CUSHION, CENTRAL - Call your local BRP dealership
204615003
Unavailable
49a
SPACER MAGNET 1/8'' - Call your local BRP dealership
204130219
Unavailable
49b
MAGNETIC CATCH ASS'Y - Call your local BRP dealership
204614513
Unavailable
50
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
51
HOLDER - Call your local BRP dealership
204614762
Unavailable
52
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
53
HOLDER DOOR ASS'Y - Call your local BRP dealership
269002153
Unavailable
54
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
55
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership
204100236
Unavailable
56
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
57
Sundeck Cushion, Starboard
204615005
Unavailable
58
Loctite 243, 10 ml
293800060
$21.49
59
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
60
Flat Washer M5, Stainless
234051600
$0.77
61
Rivet 1/8"
293150016
$0.40
62
PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership
204100126
Unavailable
63
Retention Cord With Clip
204615049
$19.99
