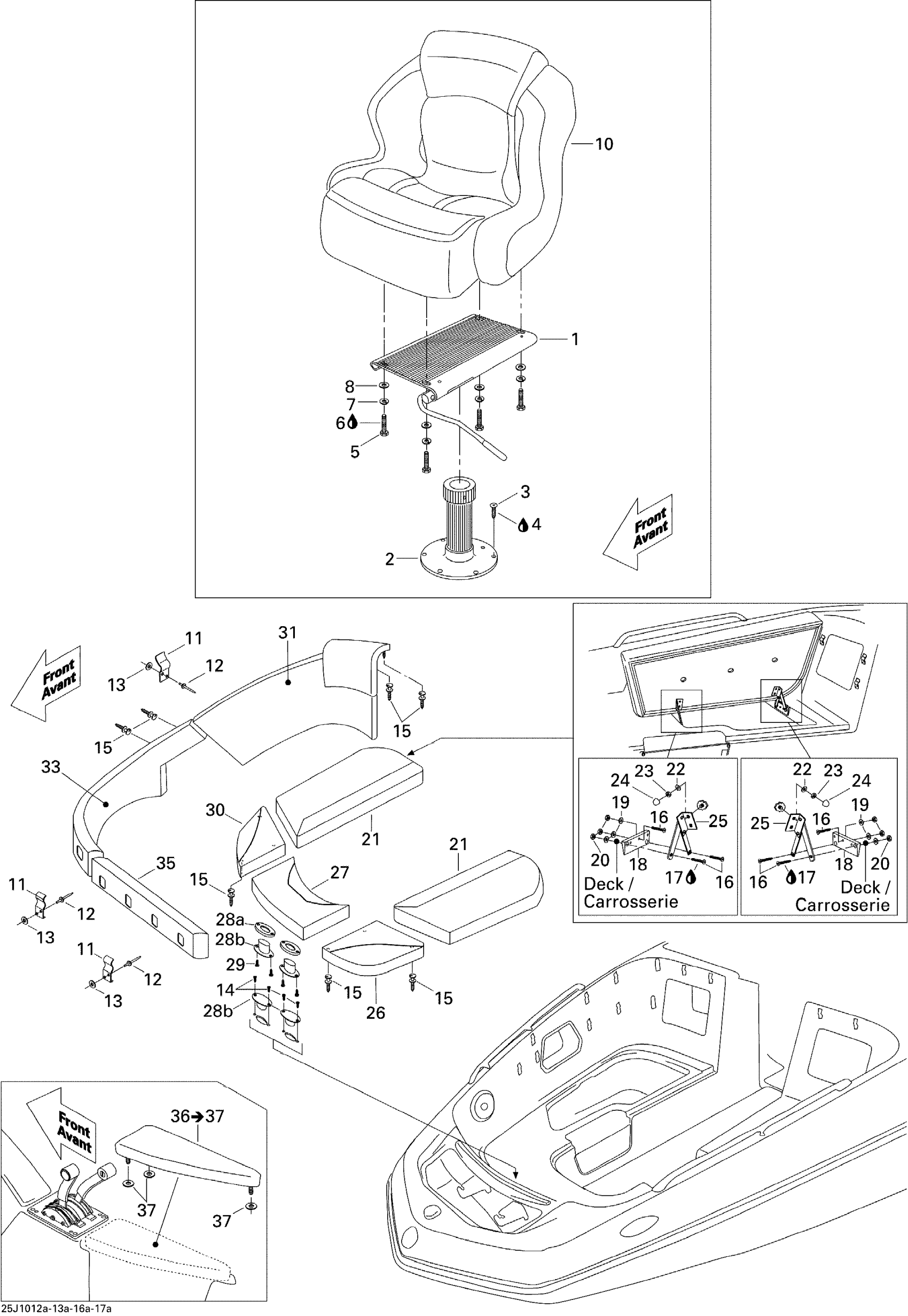

Sea-doo 230 Challenger SP 430, 2x215 1503SCIC, 2010 Seat, Front View Diagram

#

Description
Price

1

SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership

204613742

Unavailable

2

SEAT PEDESTAL - Call your local BRP dealership

269001903

Unavailable

3

PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership

204100201

Unavailable

4

Loctite 243, 10 ml

293800060

$21.49

5

TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership

204100134

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

Lock Washer 1/4”

211200025

$1.29

8

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Bucket Seat Ass'y

204614548

Unavailable

11

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

12

Pop Rivet 3/16"

293150043

$2.09

13

Stainless Flat Washer M6

234061600

$0.33

14

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

15

Dart 1", White | STD

204130264

$14.82

16

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

HINGE SHIM - Call your local BRP dealership

204614766

Unavailable

19

Flat Washer M6, Stainless

234062600

$0.77

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

Front Side Cushion, Port Side

204614978

Unavailable

21

FRONT SIDE CUSHION, STARBOARD - Call your local BRP dealership

204614986

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.77

23

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

24

Plastic Cap, White

204130008

Unavailable

25

Hinge Set

204614745

Unavailable

26

FRONT BOW CUSHION, PORT SIDE - Call your local BRP dealership

269001980

Unavailable

27

FRONT CENTER CUSHION ASS'Y - Call your local BRP dealership

269001981

Unavailable

28a

SPACER MAGNET 1/8'' - Call your local BRP dealership

204130219

Unavailable

28b

MAGNETIC CATCH ASS'Y - Call your local BRP dealership

204614513

Unavailable

29

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

30

FRONT BOW CUSHION, STARBOARD SIDE - Call your local BRP dealership

269001982

Unavailable

31

Bow Side Backrest, Port Side

204614988

Unavailable

31

BOW SIDE BACKREST, STARBOARD - Call your local BRP dealership

204614990

Unavailable

33

BOW FRONT BACKREST, PORT SIDE - Call your local BRP dealership | WAKE

269001986

Unavailable

33

BOW FRONT BACKREST, STARBOARD SIDE - Call your local BRP dealership | WAKE

269001987

Unavailable

35

BOW CENTER BACKREST - Call your local BRP dealership

204614996

Unavailable

36

ELBOW REST ASS'Y - Call your local BRP dealership | Includes 36 to 37

204614998

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.77
