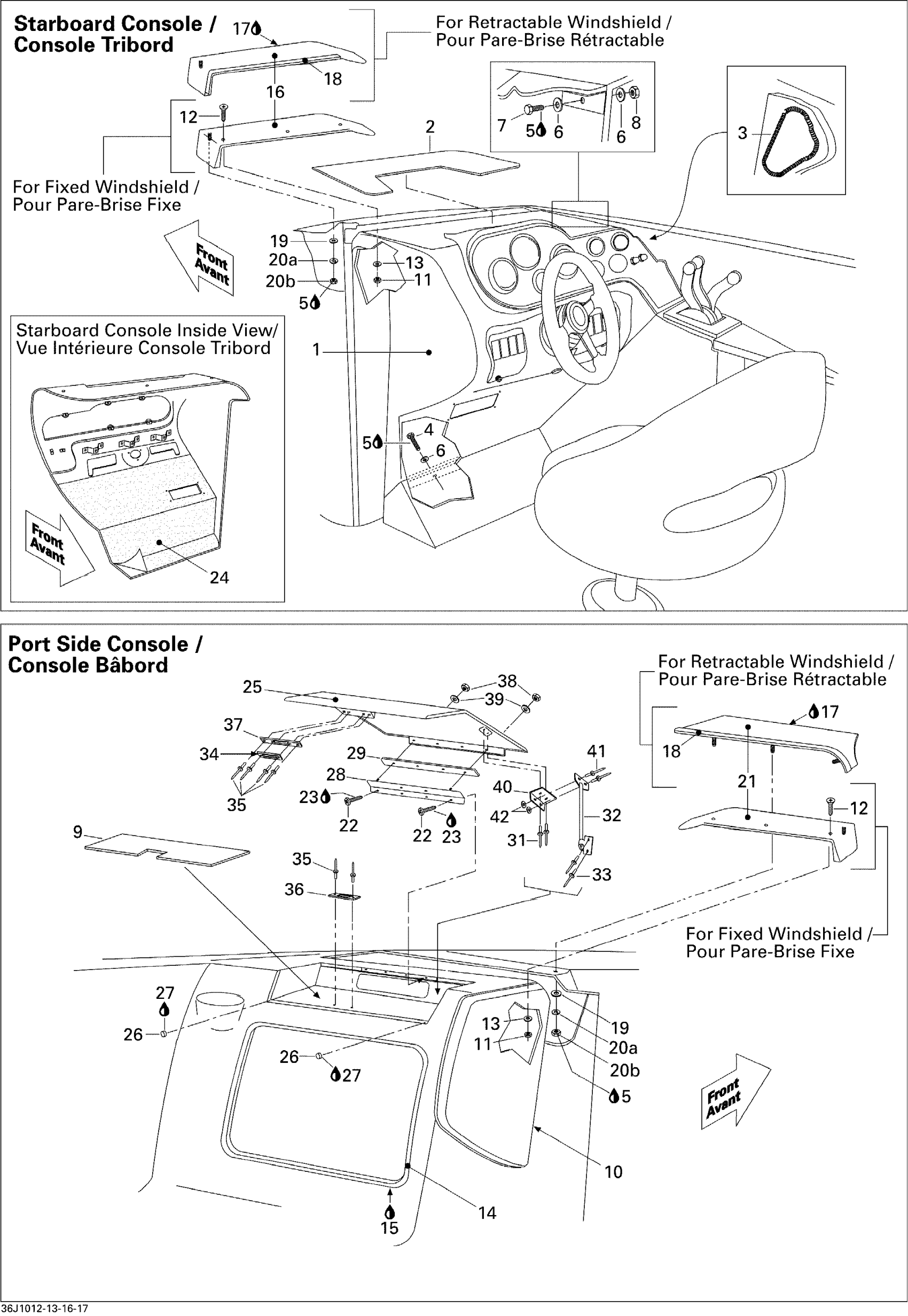

Sea-doo 230 Challenger SP 430, 2x215 1503SCIC, 2010 09- Front Console And Glove Box Diagram

#

Description
Price

1

Console Ass'y, Starboard

204073373

Unavailable

1

Console Ass'y, Starboard | Retractable Windshield

204073375

Unavailable

2

DASHBOARD MAT - Call your local BRP dealership

204073047

Unavailable

3

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

4

Hex. Screw M6 X 30

207163060

$1.48

5

Loctite 243, 10 ml

293800060

$21.49

6

Flat Washer M6, Stainless

234062600

$0.77

7

Hex. Screw M6 X 45

207164560

$1.89

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

MAT - Call your local BRP dealership

204073048

Unavailable

10

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Trim, White, 7/16”, Meter

204072759

Unavailable

15

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

16

Console Cap Ass'y, Starboard

204073105

Unavailable

16

CONSOLE CAP ASS'Y, STARBOARD - Call your local BRP dealership | Retractable Windshield

204072689

Unavailable

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

TRIM, BLACK, 7/16?, METER - Call your local BRP dealership

204072752

Unavailable

19

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

19

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

20a

Lock Washer Helical M6

234161601

$1.15

20a

Lock Washer Helical M6

234161601

$1.15

20b

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

20b

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

21

Console Cap Ass'y, Port Side

204073102

Unavailable

21

CONSOLE CAP ASS'Y, PORT SIDE - Call your local BRP dealership | Retractable Windshield

204072688

Unavailable

22

Socket Head Screw M4 X 16

205441660

$1.47

23

Loctite 243, 10 ml

293800060

$21.49

24

Console Carpet, Starboard

204072980

Unavailable

25

GLOVE BOXE UPPER COVER - Call your local BRP dealership

204073523

Unavailable

26

BUMPER - Call your local BRP dealership

204070940

Unavailable

27

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

28

HINGE, BLACK - Call your local BRP dealership

204073197

Unavailable

29

SPACER - Call your local BRP dealership

204130226

Unavailable

31

Pop RIvet 1/8 X ,375

293150285

$0.33

32

GLOVEBOX STAY - Call your local BRP dealership

204073220

Unavailable

33

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

34

MAGNETIC CATCH - Call your local BRP dealership

204072907

Unavailable

35

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

36

LATCH BRACKET - Call your local BRP dealership

204072908

Unavailable

37

LATCH SPACER - Call your local BRP dealership

204073168

Unavailable

38

Elastic Stop Nut M4

232541600

$1.15

39

Flat Washer 4 mm, Stainless

234041600

$1.15

40

GLOVEBOX STAY BRACKET - Call your local BRP dealership

204073309

Unavailable

41

Pop RIvet 1/8 X ,375

293150285

$0.33

42

Flat Washer M3, Stainless

234032600

$0.55
