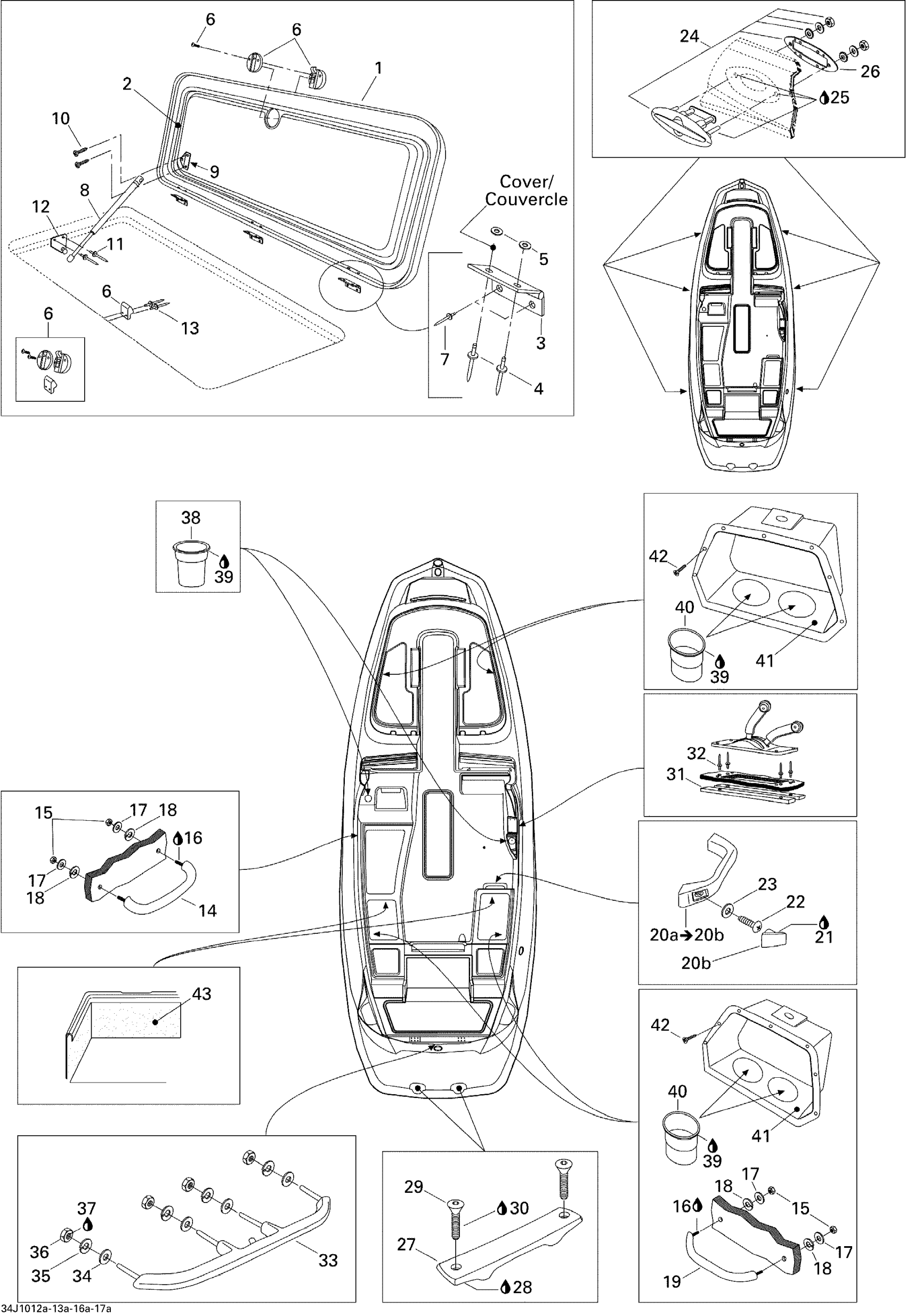

Sea-doo 230 Challenger SP 430, 2x215 1503SCIC, 2010 Body And Accessories 1 Diagram

#

Description
Price

1

CENTER COVER - Call your local BRP dealership

204072794

Unavailable

2

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Pop Rivet 3/16"

293150088

$0.99

5

Flat Washer M5, Stainless

234051600

$0.77

6

Latch, Stainless Steel

204073230

$139.99

7

Avdel Rivet 3/16"

293150037

$0.56

8

GAS SHOCK - Call your local BRP dealership

204072218

Unavailable

9

Shock Bracket

204073074

$27.99

10

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

11

Pop Rivet 3/16"

293150043

$2.09

12

RH SHOCK BRACKET - Call your local BRP dealership

204072219

Unavailable

13

Pop Rivet 3/16"

293150039

$1.49

14

GRAB HANDLE ASS'Y - Call your local BRP dealership

204073040

Unavailable

15

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

19

GRAB HANDLE ASS. - Call your local BRP dealership

291003405

Unavailable

20a

GRIP HANDLE, WHITE - Call your local BRP dealership | Includes 20a to 20b

204071182

Unavailable

20b

Snap Cap

204071195

Unavailable

21

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

22

Socket Screw M6 X 40

205464060

$2.22

23

Stainless Flat Washer M6

234061600

$0.33

24

PULL-UP CLEAT - Call your local BRP dealership

204073198

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

CLEAT BACKING PLATE - Call your local BRP dealership

204073199

Unavailable

27

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

28

Silicone Sealant 51388, 300 ml

296000309

$36.99

29

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

32

Pop Rivet 3/16"

293150013

$1.37

33

SKI-TOW HANDLE - Call your local BRP dealership

204073442

Unavailable

34

Flat Washer 10 mm, Stainless

234002600

$2.22

35

Lock Washer 8 mm, Stainless

234181601

$0.55

36

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

CUP HOLDER - Call your local BRP dealership | SE & SP

204073519

Unavailable

39

Silicone Sealant 51388, 300 ml

296000309

$36.99

40

CUP HOLDER - Call your local BRP dealership | SE & SP

204073519

Unavailable

41

Coaming Box

204073019

Unavailable

42

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

43

STERN STORAGE CARPET - Call your local BRP dealership

204072944

Unavailable
