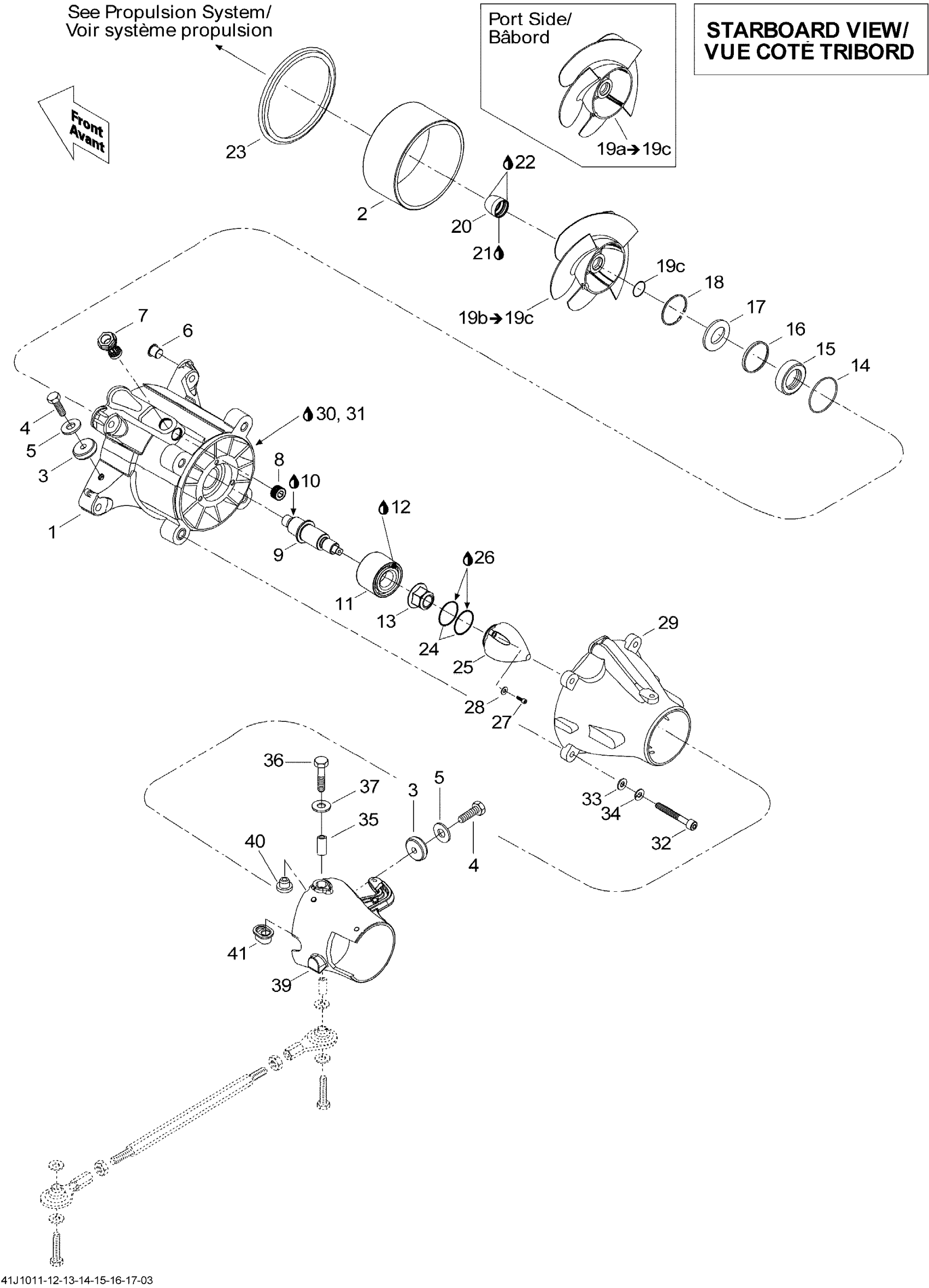

Sea-doo 230 Challenger SP 430, 2x215 1503SCIC, 2010 Pump Diagram

#

Description
Price

1

Housing Impeller Anodized This part replaces 267000417.

271002161

$329.99

2

Wear Ring

267000372

$84.99

3

Anode Zinc

271001813

$18.99

4

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

5

Stainless Flat Washer M6

234061600

$0.33

6

Bushing

267000093

$9.59

7

Plug | Includes 370z to 370z1

267000282

$19.49

8

Black, Plastic Plug

267000469

$7.59

9

Impeller Shaft

267000388

$116.49

10

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

11

Angled Bearing This part replaces 267000030.

267000900

$80.99

12

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

13

Elastic Flange Nut M20

250100104

$12.66

14

O-Ring

293300090

$7.20

15

Seal

271002071

$33.99

16

Spacer

271001393

$8.59

17

Oil Seal

293200089

$19.99

18

Circlip

293370038

$8.79

19a

IMPELLER ASSY - Call your local BRP dealership | Includes 190 to 190a This part replaces 267000642.

267000780

Unavailable

19a

IMPELLER ASSY - Call your local BRP dealership | Includes 19a to 19c, Port Side

267000452

Unavailable

19b

STANLESS STEEL IMPELLER ASS'Y - Call your local BRP dealership | Includes 195 to 195a

267000653

Unavailable

19b

IMPELLER ASSY - Call your local BRP dealership | Includes 19a to 19c, Port Side

267000452

Unavailable

19c

O-Ring

293300114

$15.89

20

Guard

271002228

$12.99

21

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

22

Synthetic Grease, 400 G

293550010

Unavailable

23

Neoprene Seal

293200087

$12.63

24

O-Ring

293300086

$3.59

25

Impeller Cover

267000428

$18.49

26

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

27

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

28

Stainless Flat Washer M6

234061600

$0.33

29

VENTURI, BLACK - Call your local BRP dealership

204160306

Unavailable

30

Was 293800041 Loctite Primer 7649

219704458

$39.99

31

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

32

Socket Head Screw M8 X 100, Scotch Grip

250000464

$7.51

33

Flat Washer M8.5 x 18

293050001

$3.07

34

Lock Washer 8 mm, Stainless

234181601

$0.55

35

Sleeve

271001816

$14.99

36

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

37

Flat Washer M8.5 x 18

293050001

$3.07

38

STEERING NOZZLE - Call your local BRP dealership | Port Side

204160293

Unavailable

39

STEERING NOZZLE - Call your local BRP dealership | Starboard

204160296

Unavailable

40

Venturi Bushing

293900001

$7.62

41

Plastic Bushing

293900010

$9.59
