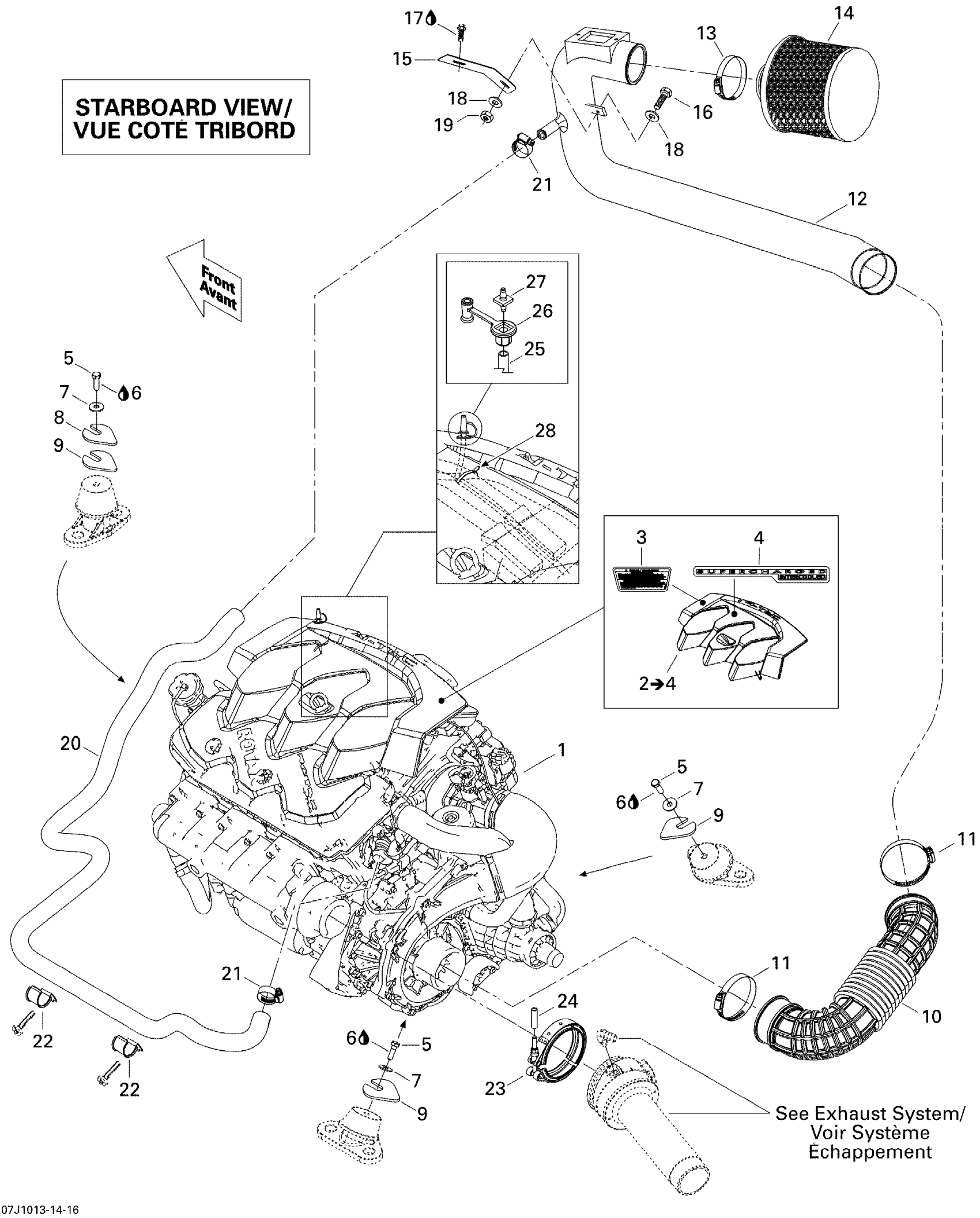

Sea-doo 230 Challenger SP 430, 2x215 1503SCIC, 2010 01- Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

56

Engine Long Block This part replaces 420150338.

420150394

$4.00

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

5

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

9

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

10

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

11

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

12

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

13

Tridon Clamp

293650179

$11.49

14

Air Filter This part replaces 204250436.

204250466

$137.99

15

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

16

Hex. Screw M6 X 30

207163060

$1.48

17

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

18

Flat Washer, Stainless/Neoprene

211200055

$0.73

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

21

Tridon Gear Clamp

293650051

$4.19

22

Retainer

275500664

$14.75

23

Exhaust Clamp

274001417

$58.99

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

26

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

27

CONNECTOR - Call your local BRP dealership

293710107

$1.09

28

Tie Wrap 142 mm

293750002

$1.25
