01- Cooling System

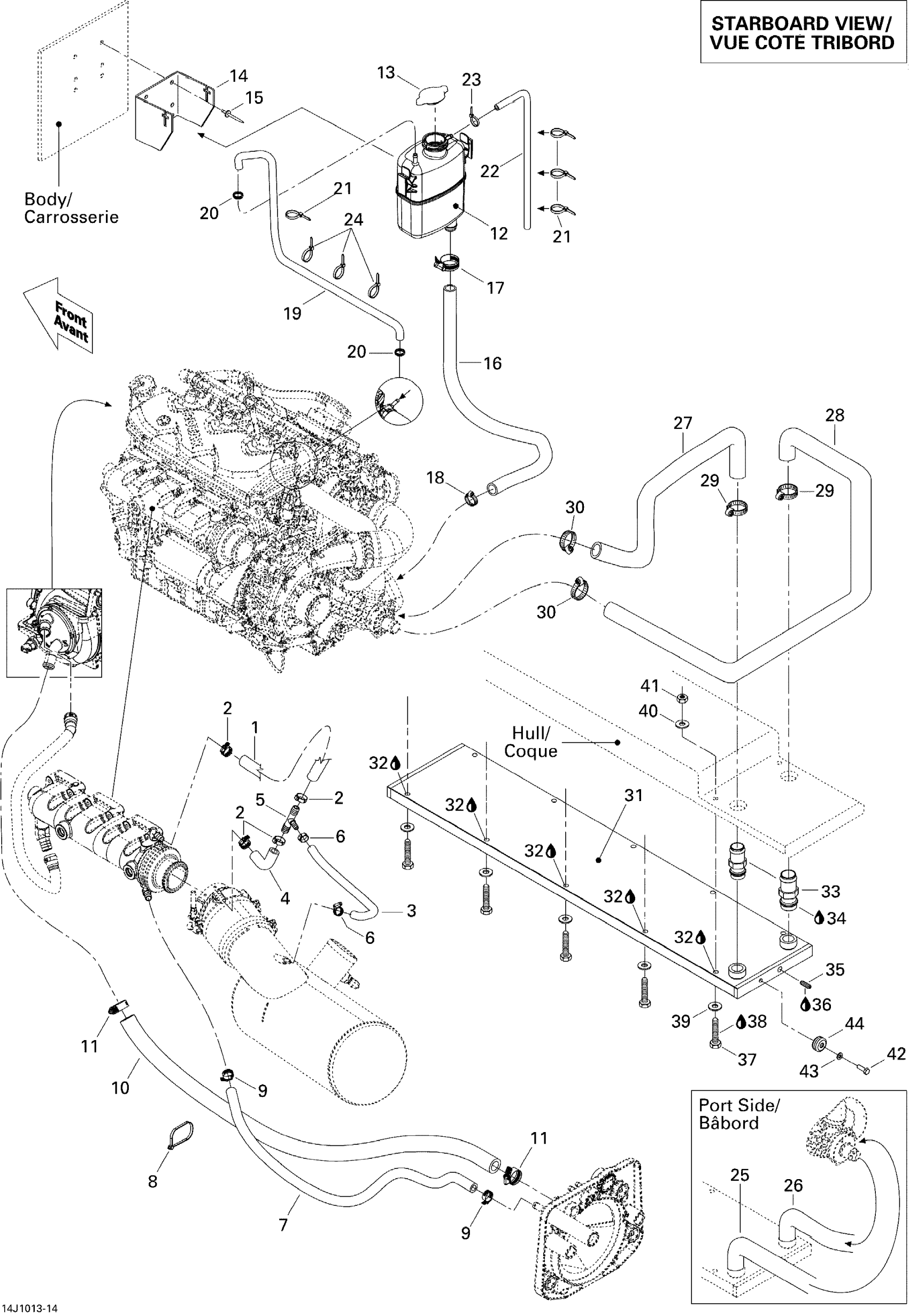

Sea-doo 230 Challenger SP 430, 2x215 1503SCIC, 2010 01- Cooling System Diagram
#
1
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
2
Tridon Gear Clamp
293650172
$3.09
3
Formed Hose | Without Catalyst
276000246
$19.49
4
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
5
T-Fitting
293710116
$17.62
6
Tridon Gear Clamp
293650171
$3.09
7
Was 276000001 Hose 12.5 mm
219704394
$51.99
8
Tie Wrap 368 mm
293750008
$1.04
9
Tridon Gear Clamp
293650172
$3.09
10
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
11
Tridon Gear Clamp
293650051
$4.19
12
Coolant Tank
276000086
$109.99
13
Pressure Cap | Includes 720 to 720a
276000100
$25.99
14
COOLANT TANK BRACKET - Call your local BRP dealership
204300213
Unavailable
15
Pop Rivet 3/16"
204000081
$1.49
16
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
17
Tridon Gear Clamp
293650051
$4.19
18
Tridon Gear Clamp
293650019
$5.82
19
Was 275500549 Hose 1/4"
219704357
$194.99
20
Oetiker Gear Clamp
293650025
$3.09
21
Tie Wrap 142 mm
293750002
$1.25
22
Polyurethane Hose 10000Mm Long
219704410
$56.99
23
Tie Wrap 94 mm | 4X4
293750001
$1.03
24
Tie Wrap 142 mm
293750002
$1.25
25
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
26
Ride Plate Hose This part replaces 204300172.
423465058
$43.99
27
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
28
Starboard Formed Hose - Call your local BRP dealership
204300174
Unavailable
29
Tridon Gear Clamp
293650045
$5.69
30
Tridon Gear Clamp
293650045
$5.69
31
HEAT EXCHANGER - Call your local BRP dealership
204300235
Unavailable
32
Instant Gasket
219701421
$51.99
33
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
34
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
35
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
36
Was 293800013 Loctite 56765
219704454
$65.99
37
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
38
Loctite 243, 10 ml
293800060
$21.49
39
Flat Washer 10 mm, Stainless
234000600
$1.46
40
Flat Washer 10 mm, Stainless
234002600
$2.22
41
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
42
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
43
Stainless Flat Washer M6
234061600
$0.33
44
Anode Zinc
271001813
$18.99
