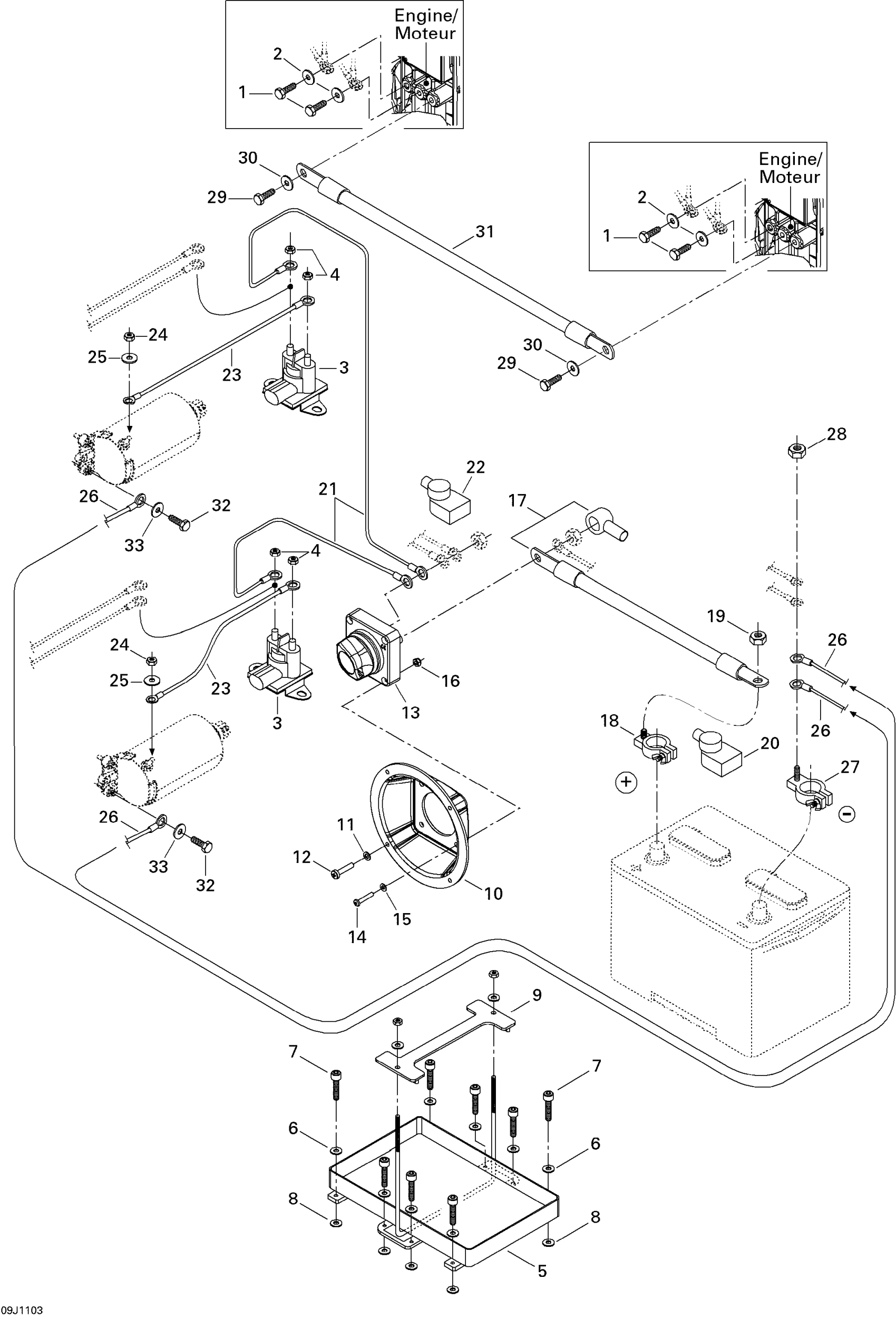

Sea-doo 200 Speedster 510, 2011 10- Electrical System Diagram
#
Description
Price
1
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
2
Stainless Flat Washer M6
234061600
$0.33
3
Starter Relay
278003012
$42.49
4
Hex. Elastic Stop Nut M6
232561600
$1.15
5
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
6
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
7
Socket Head Screw M6 X 25
205062560
$1.69
8
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
9
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
10
SWITCH SUPPORT - Call your local BRP dealership
204471341
Unavailable
11
Flat Washer 4 mm, Stainless
234041600
$1.15
12
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
13
BATTERY SWITCH - Call your local BRP dealership
204471339
Unavailable
14
Phillips Screw M5 X 25
208652560
$3.39
15
Flat Washer M5, Stainless
234051600
$0.77
16
Hex. Elastic Nut M5 | X
232551600
$1.15
17
POSITIVE SWITCH CABLE - Call your local BRP dealership
204471422
Unavailable
18
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
19
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
20
RED BOOT - Call your local BRP dealership
204470269
Unavailable
21
RED CABLE - Call your local BRP dealership
204471423
Unavailable
21
RED CABLE - Call your local BRP dealership
204471424
Unavailable
22
RED BOOT - Call your local BRP dealership
204470269
Unavailable
23
Red Cable
204470852
Unavailable
23
RED CABLE - Call your local BRP dealership
204470798
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
Stainless Flat Washer M6
234061600
$0.33
26
GROUND CABLE, PORT SIDE - Call your local BRP dealership
204470854
Unavailable
26
GROUND CABLE, STARBOARD - Call your local BRP dealership
204470840
Unavailable
27
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
28
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
29
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
30
Flat Washer M6, Stainless
234062600
$0.77
31
GROUND CABLE - Call your local BRP dealership
204470839
Unavailable
32
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
33
Stainless Flat Washer M6
234061600
$0.33
