Description

Price

1

Diagnostic Connector

278002704

$19.49

2

Tie-Rap 180 mm

414115200

$0.11

3

Tie Wrap 142 mm

293750002

$1.25

4

Tie Wrap 142 mm

293750002

$1.25

5

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

6

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

7

Lock Washer 1/4”

211200025

$1.29

8

SEAL - Call your local BRP dealership

204471293

Unavailable

9

RECTIFIER HEAT SINK - Call your local BRP dealership

204471296

Unavailable

10

Fan Ass'y | Includes 44 to 47

204470108

$144.99

11

Male Connector, 2 Circuits

278000220

$15.49

12

Female Terminal

278000223

$3.19

13

Wire Seal

278000218

$4.39

14

Pop Rivet 3/16"

293150008

$0.50

15

Flat Washer 5 mm, Stainless

234052600

$0.77

16

Speed Sensor

278001993

$169.99

17

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

18

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

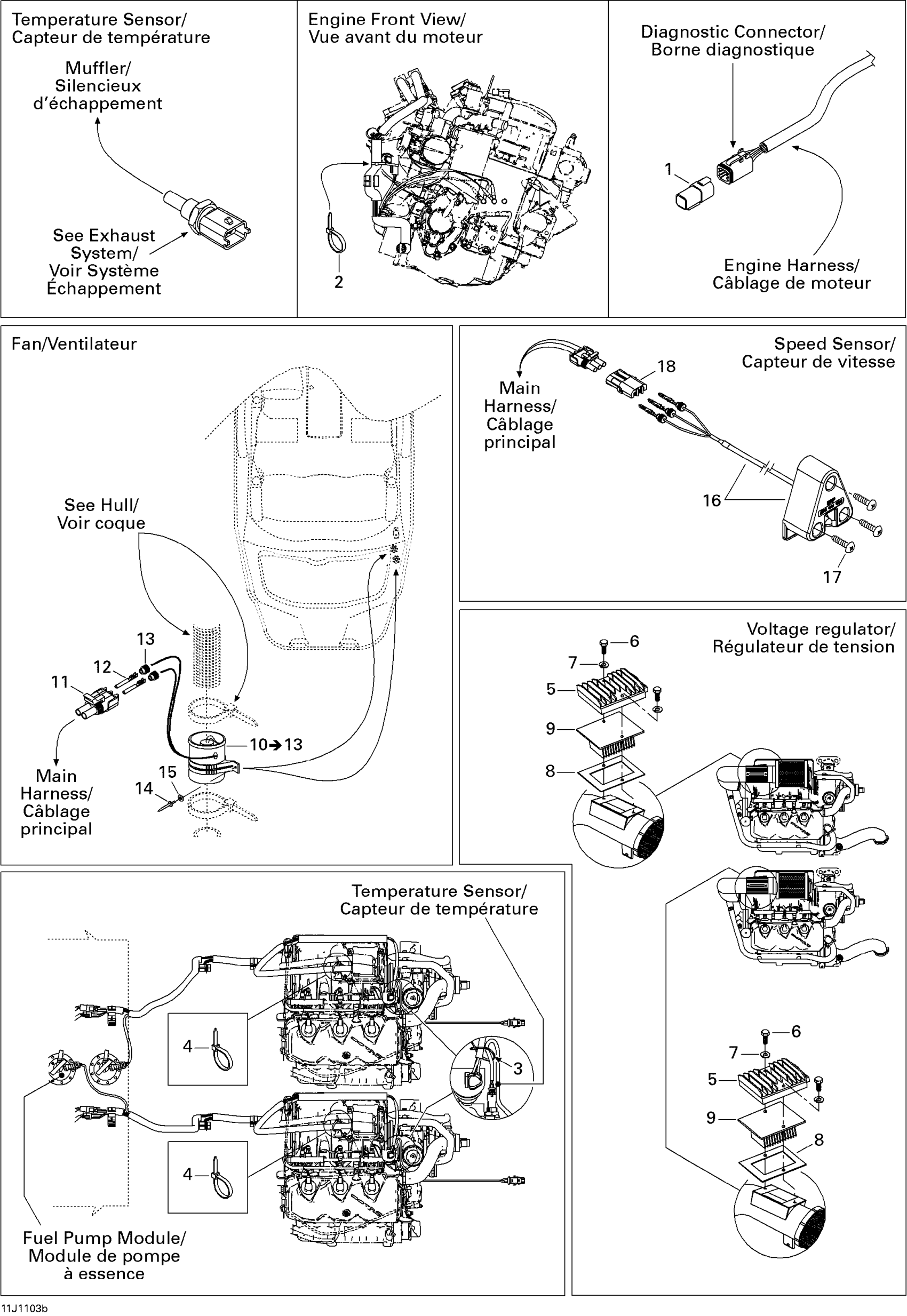

Sea-doo 200 Speedster 510, 2011 10- Electrical Accessories 2 Diagram

Diagnostic Connector

Tie-Rap 180 mm

Tie Wrap 142 mm

Tie Wrap 142 mm

Voltage Regulator | For replacement, refer to service bulletin 2005-5

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

Lock Washer 1/4”

SEAL - Call your local BRP dealership

RECTIFIER HEAT SINK - Call your local BRP dealership

Fan Ass'y | Includes 44 to 47

Male Connector, 2 Circuits

Female Terminal

Wire Seal

Pop Rivet 3/16"

Flat Washer 5 mm, Stainless

Speed Sensor

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

Female Terminal Housing, 3 Circuits | XT Models
