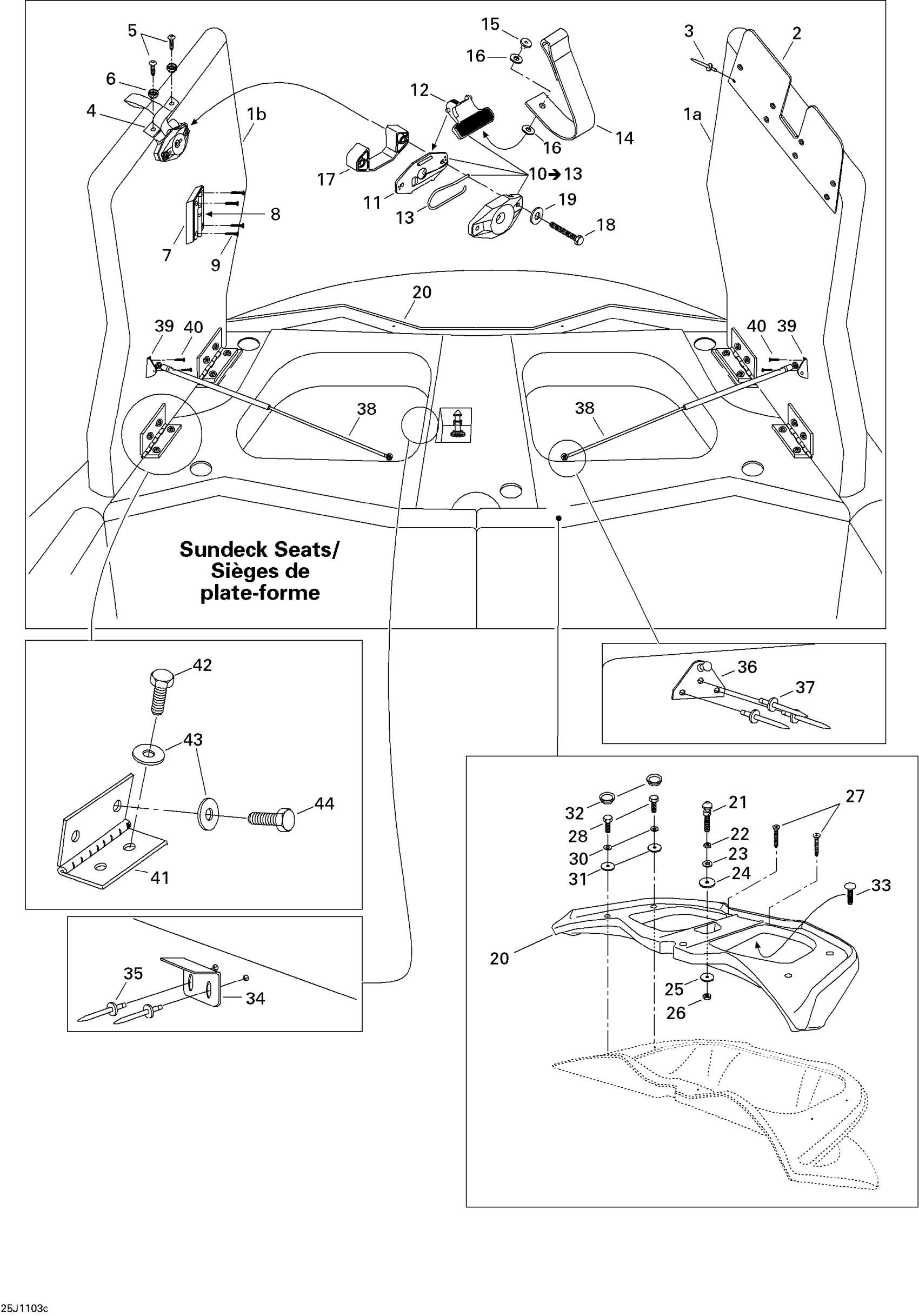

Sea-doo 200 Speedster 510, 2011 Seat 3 Diagram

#

Description
Price

1a

SUNPAD DOOR ASS'Y, PORT SIDE - Call your local BRP dealership | Port

204614610

Unavailable

1b

SUNPAD DOOR ASS'Y, STARBOARD - Call your local BRP dealership | Starboard

204614612

Unavailable

2

Retainer Plate

204612684

Unavailable

3

Pop Rivet 3/16"

293150008

$0.50

4

LOOP, WHITE - Call your local BRP dealership

204614617

Unavailable

5

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

6

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

7

LATCH SHIM - Call your local BRP dealership

204612664

Unavailable

8

SLIDE LATCH - Call your local BRP dealership

204612641

Unavailable

9

TAPPING SCREW - Call your local BRP dealership

204100082

Unavailable

10

Latch Ass'y

269700109

$24.99

11

Latch Ass'y

269700109

$24.99

12

Latch Ass'y

269700109

$24.99

13

Latch Spring

269700017

$9.19

14

Strap, White

204614616

Unavailable

15

Pop Rivet 3/16"

293150039

$1.49

16

Flat Washer 5 mm, Stainless

234052600

$0.77

17

SHIM - Call your local BRP dealership

269700015

Unavailable

18

HEX. BOLT TAPPING - Call your local BRP dealership

204100141

Unavailable

19

Stainless Flat Washer M6

234061600

$0.33

20

Black, Spoiler

204613414

Unavailable

21

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

22

Hex. Jam Nut M10

232100600

$2.22

23

Flat Washer 10 mm, Stainless

234002600

$2.22

24

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

25

Flat Washer 10 mm, Stainless

234002600

$2.22

26

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

27

PHILLIPS TAPPING SCREW #10 X 1-1/4 - Call your local BRP dealership

204100164

Unavailable

28

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

30

Flat Washer M6, Stainless

234062600

$0.77

31

Flat Washer 10 mm, Stainless

234002600

$2.22

32

BLACK CAP 1 1/2 - Call your local BRP dealership

204130190

Unavailable

33

Dart

293730021

$7.79

34

KEEPER - Call your local BRP dealership

204070060

Unavailable

35

Pop Rivet 3/16"

293150039

$1.49

36

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

37

Pop Rivet 3/16"

293150039

$1.49

38

GAS SHOCK - Call your local BRP dealership

204071874

Unavailable

39

Shock Bracket

204073074

$27.99

40

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

41

SUNDECK HINGE - Call your local BRP dealership

204612769

Unavailable

42

TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership

204100134

Unavailable

43

Stainless Flat Washer M6

234061600

$0.33

44

TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership

204100137

Unavailable
