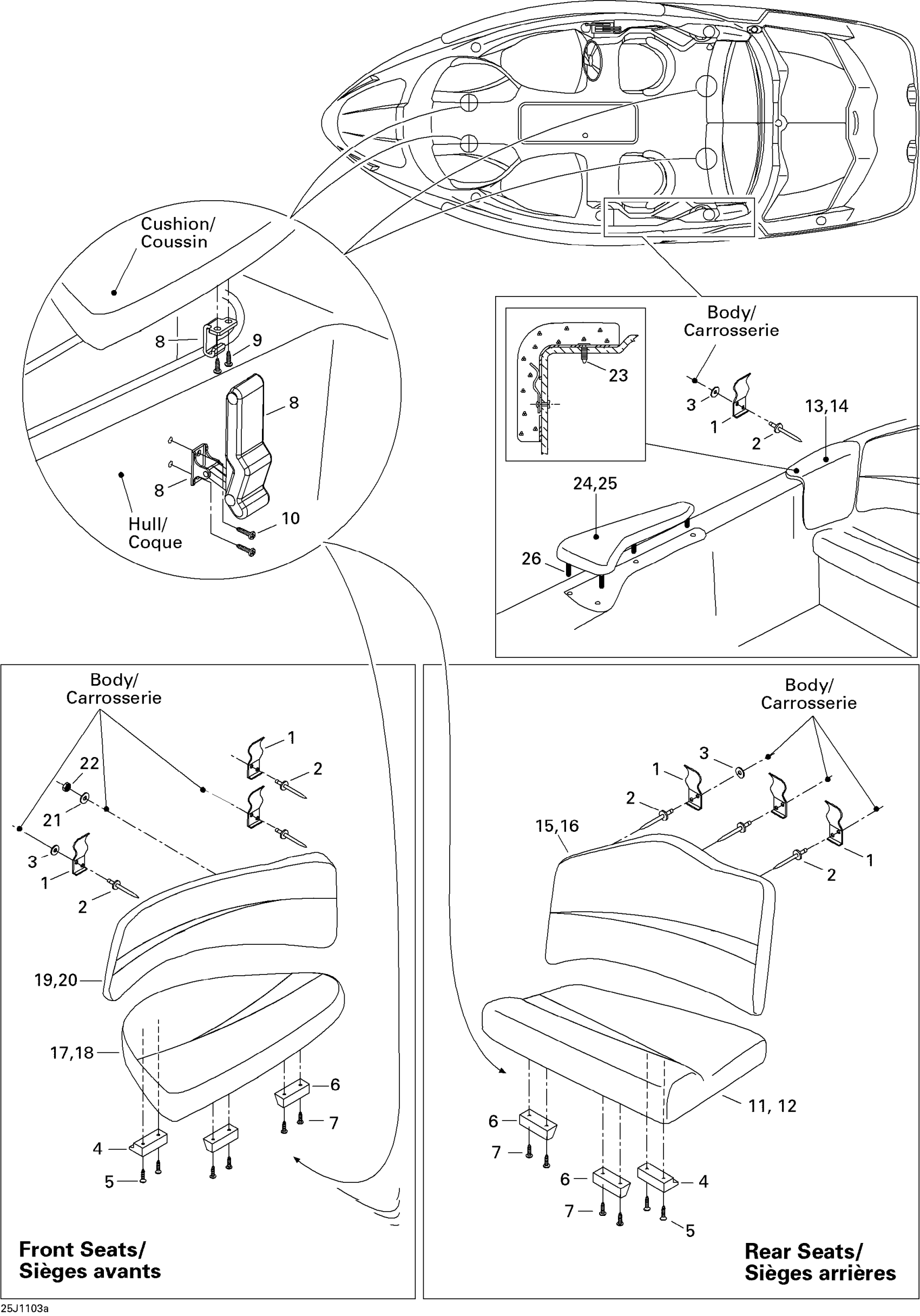

Sea-doo 200 Speedster 510, 2011 09- Seat 1 Diagram
#
Description
Price
1
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
2
Pop Rivet 3/16"
293150043
$2.09
3
Flat Washer 5 mm, Stainless
234052400
$2.85
4
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
5
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
6
LATCH - Call your local BRP dealership
204611805
Unavailable
7
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
8
CAM LATCH - Call your local BRP dealership
204615024
Unavailable
9
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
10
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
11
REAR SEAT ASS'Y, PORT - Call your local BRP dealership | Port
204615025
Unavailable
12
REAR SEAT ASS'Y, STARBOARD - Call your local BRP dealership | Starboard
204615026
Unavailable
13
ARMREST, PORT SIDE - Call your local BRP dealership | Port
204613674
Unavailable
14
ARMREST, STARBOARD - Call your local BRP dealership | Starboard
204613672
Unavailable
15
REAR BACKREST, PORT - Call your local BRP dealership | Port
204615034
Unavailable
16
REAR BACKREST, STARBOARD - Call your local BRP dealership | Starboard
204615037
Unavailable
17
Front Seat Ass'y, Port | Port
204615027
Unavailable
18
Front Seat Ass'y, Starboard | Starboard
204615028
Unavailable
19
Prow Backrest Ass'y, Port | Port
204614877
Unavailable
20
PROW BACKREST ASS'Y, STARBOARD - Call your local BRP dealership | Starboard
204614880
Unavailable
21
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
22
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
23
Dart
293730021
$7.79
24
ARM SUPPORT ASS'Y, LH - Call your local BRP dealership | Port
204615039
Unavailable
25
ARM SUPPORT ASS'Y, RH - Call your local BRP dealership | Starboard
204615042
Unavailable
26
Dart 1", White | STD
204130264
$14.82
