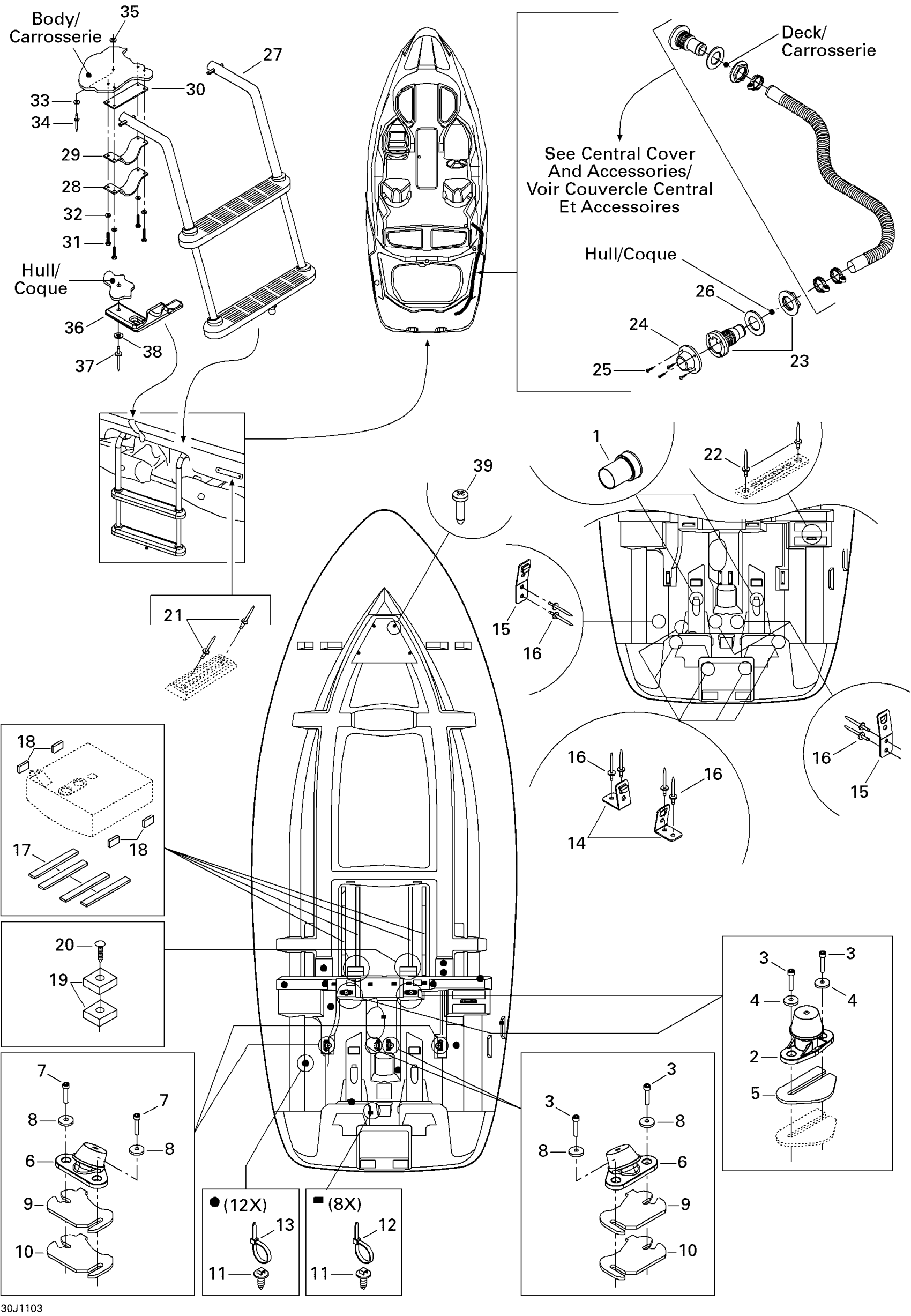

Sea-doo 200 Speedster 510, 2011 Lower Hull And Ladder Diagram

#

Description
Price

1

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable

2

Engine Support Ass'y

270001096

$97.99

3

Socket Head Screw M8 X 45

205084560

$3.59

4

Cone Washer

250200018

$5.61

5

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

6

Engine Support Ass'y

270001081

$109.99

7

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

8

Cone Washer

250200018

$5.61

9

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

10

Shim 1.3 mm

270000762

$12.99

11

Mount Dart

293730040

$1.04

12

Tie-Rap 180 mm

414115200

$0.11

13

Tie Wrap 368 mm

293750008

$1.04

14

Strap Clip 90°

204060017

Unavailable

15

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

16

Avdel Rivet 3/16"

293150037

$0.56

17

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

18

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

19

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

20

Black Dart

293730014

$0.99

21

Pop Rivet 1/8''

293150033

Unavailable

22

Avdel Rivet 3/16"

293150037

$0.56

23

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

24

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

25

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

26

GASKET - Call your local BRP dealership

293250255

Unavailable

27

LADDER - Call your local BRP dealership

204061385

Unavailable

28

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

29

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

30

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

31

Hex. Screw M6 X 35

207163560

$1.49

32

Lock Washer Helical M6

234161601

$1.15

33

Flat Washer M6, Stainless

234062600

$0.77

34

Pop Rivet 3/16"

293150043

$2.09

35

Flat Washer M5, Stainless

234051600

$0.77

36

Hood Latch

570027100

$13.49

37

Pop Rivet 3/16"

293150013

$1.37

38

Flat Washer 5 mm, Stainless

234052600

$0.77

39

PHILLIPS TAPPING SCREW M6.3 X 25 - Call your local BRP dealership

209662560

Unavailable
