- 200 Speedster 510, 2011
09- Front Console And Glove Box

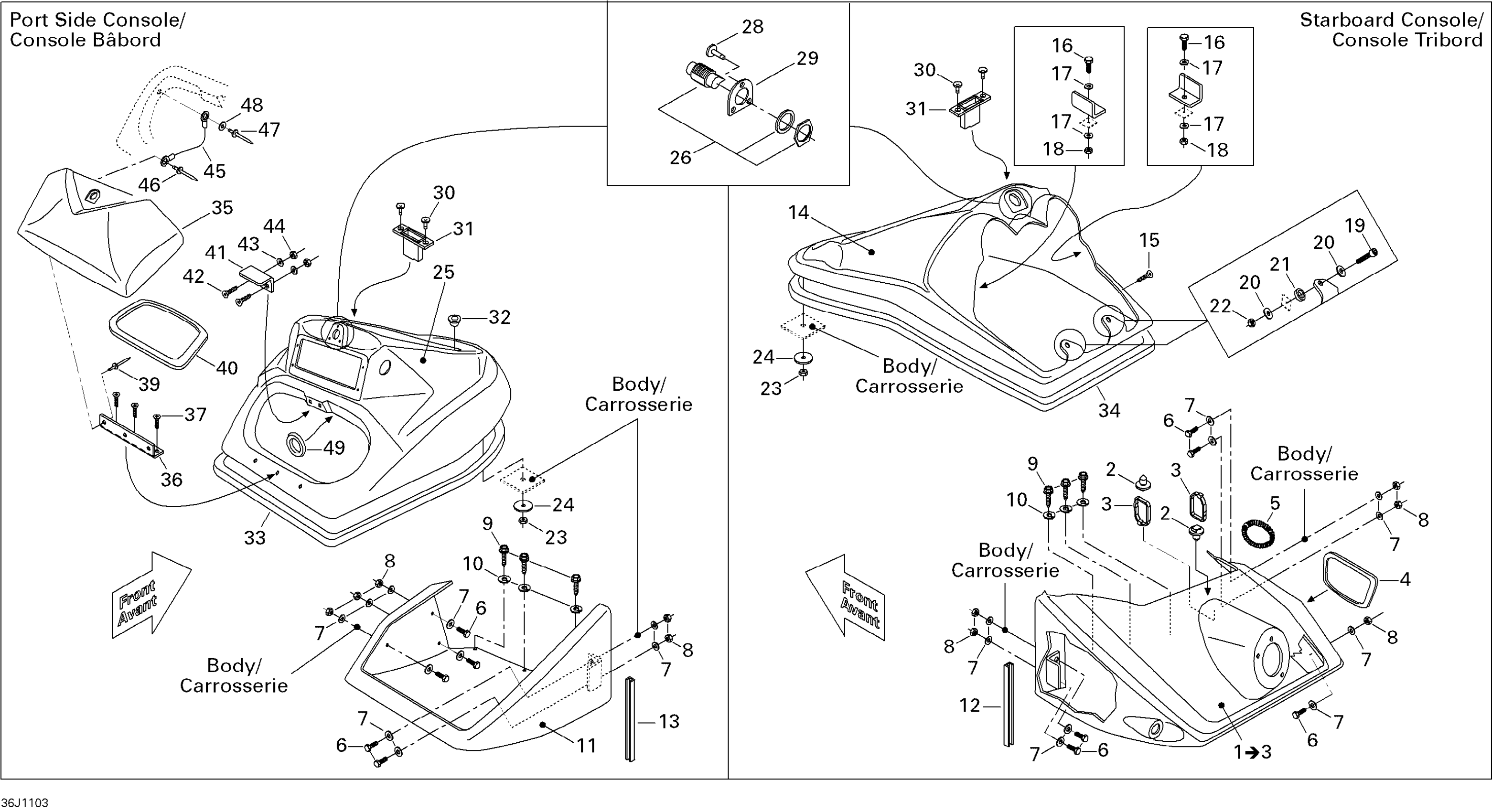

Sea-doo 200 Speedster 510, 2011 09- Front Console And Glove Box Diagram
#
1
LOWER CONSOLE ASS'Y, STARBOARD - Call your local BRP dealership | Includes 1 to 3
204073450
Unavailable
2
Mount Dart
293730040
$1.04
3
Tie-Rap 180 mm
414115200
$0.11
4
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
5
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
6
Hex. Screw M6 X 35
207163560
$1.49
7
Flat Washer M6, Stainless
234062600
$0.77
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
10
Lock Washer 1/4”
211200025
$1.29
11
LOWER CONSOLE, PORT SIDE - Call your local BRP dealership
204073453
Unavailable
12
Trim, White, 7/16”, Meter
204072759
Unavailable
13
Trim, White, 7/16”, Meter
204072759
Unavailable
14
UPPER CONSOLE, STARBOARD - Call your local BRP dealership
204072337
Unavailable
15
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
16
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
17
Flat Washer M6, Stainless
234062600
$0.77
18
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
19
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
20
Flat Washer M6, Stainless
234062600
$0.77
21
ALUMINUM SPACER - Call your local BRP dealership
204071928
Unavailable
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
24
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
25
UPPER CONSOLE, PORT SIDE - Call your local BRP dealership
204073455
Unavailable
26
LATCH KIT, 3 LATCHES - Call your local BRP dealership
204071838
Unavailable
28
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
29
LATCH PLATE - Call your local BRP dealership
204070304
Unavailable
30
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
31
LATCH GUIDE - Call your local BRP dealership
204072064
Unavailable
32
DRAIN FITTING - Call your local BRP dealership
204072468
Unavailable
33
TRIM, BLACK, 7/16?, METER - Call your local BRP dealership
204072752
Unavailable
34
TRIM, BLACK, 7/16?, METER - Call your local BRP dealership
204072752
Unavailable
35
GLOVE BOX TRAY - Call your local BRP dealership
204073349
Unavailable
36
Hinge, Black
204071945
Unavailable
37
Phillips Pan Head Screw M4 X 40
250000169
$1.48
39
Pop Rivet 3/16"
293150088
$0.99
40
Seal Tray 1000Mm Long
219704368
$13.99
41
KEEPER - Call your local BRP dealership
204072476
Unavailable
42
Phillips Screw M4 X 16
208641660
$0.90
43
Flat Washer 4 mm
234040600
$0.55
44
Elastic Stop Nut M4
232541600
$1.15
45
RETAINER CABLE - Call your local BRP dealership
204071498
Unavailable
46
Pop Rivet 3/16"
293150088
$0.99
47
Pop Rivet 3/16"
293150008
$0.50
48
Flat Washer 5 mm, Stainless
234052600
$0.77
49
SPLIT LOOM 3/8, METER - Call your local BRP dealership
204050326
Unavailable
