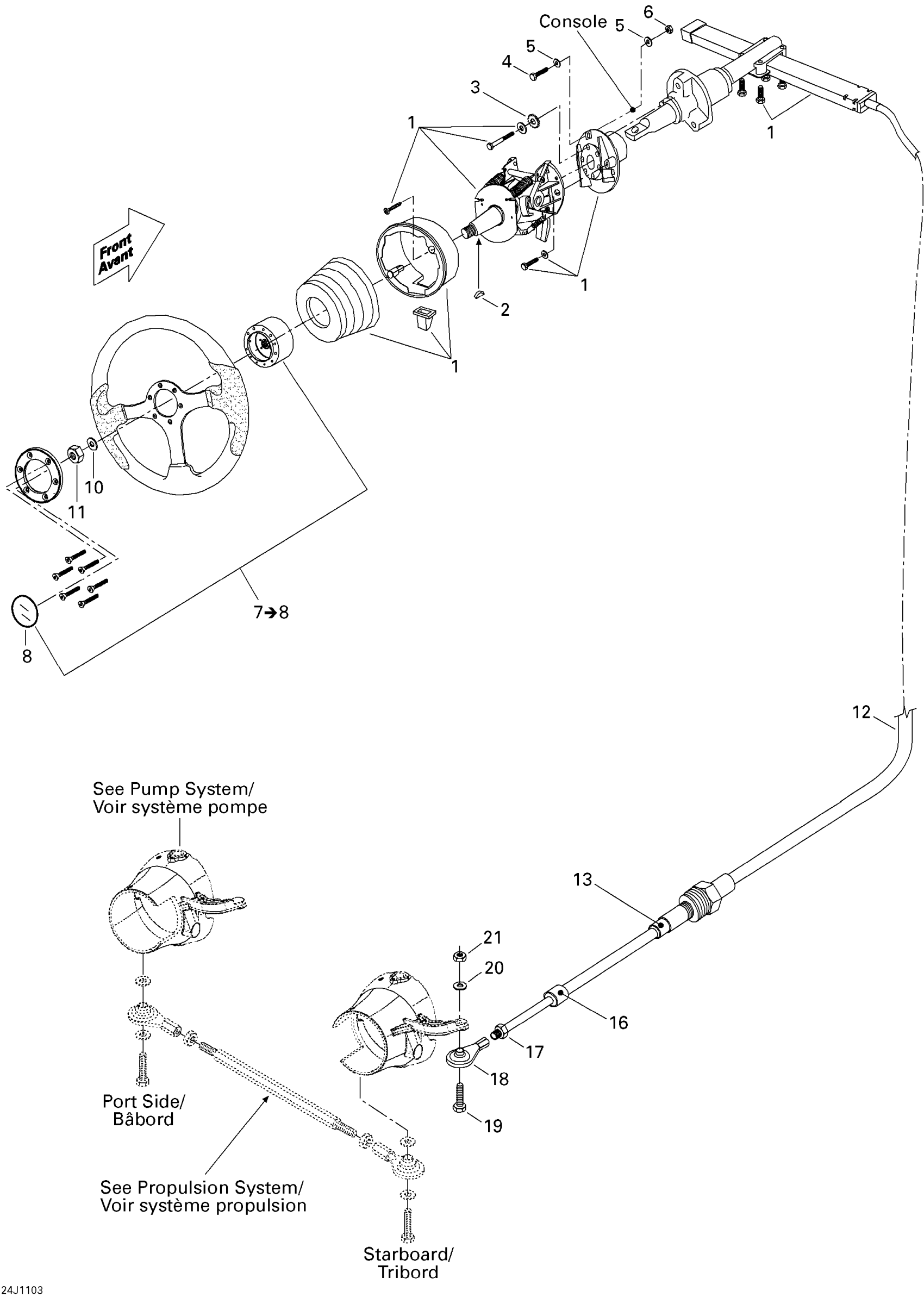

Sea-doo 200 Speedster 510, 2011 Steering Diagram

#

Description
Price

1

HELM TILT ASS'Y - Call your local BRP dealership | Twin Engine Models

277001690

Unavailable

2

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

3

Serrated Lock Washer 8 mm

234481608

$1.06

4

Hex. Screw M6 X 40

207164060

$2.74

5

Stainless Flat Washer M6

234061600

$0.25

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

Steering Wheel Ass'y | Includes 7 to 8

204390556

Unavailable

8

CENTER CAP - Call your local BRP dealership | STD

204390563

Unavailable

10

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

11

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

12

STEERING CABLE - Call your local BRP dealership | Twin Engine Models

277001867

Unavailable

13

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

16

Terminal Wiper

277000441

Unavailable

17

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

18

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

19

Hex. Screw M6 X 35

207063560

$1.85

20

Stainless Flat Washer M6

234061600

$0.25

21

Hex. Elastic Stop Nut M6

232561600

$0.92
