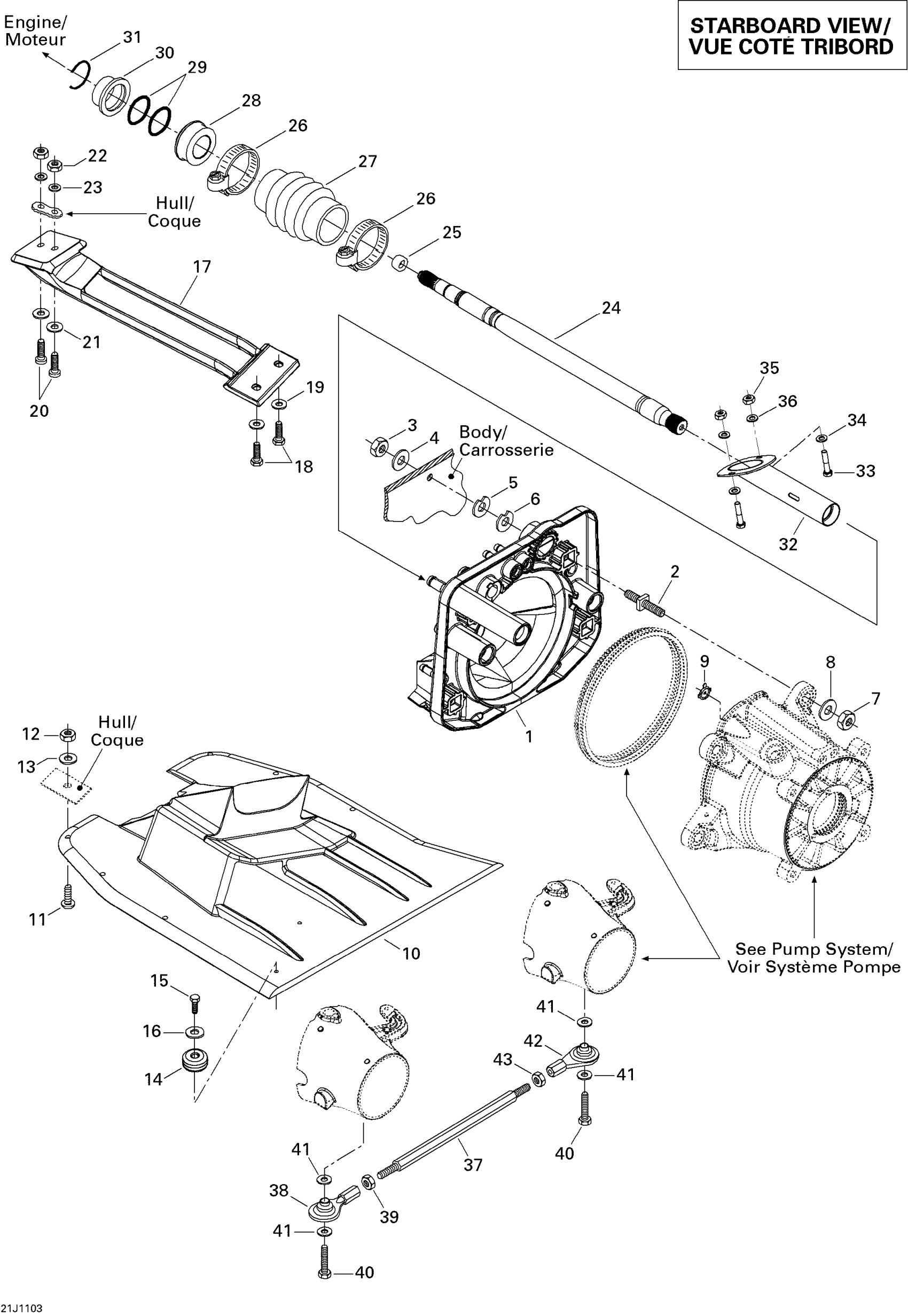

Sea-doo 200 Speedster 510, 2011 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120313

Unavailable

2

Square Stud

250300022

$20.99

3

Elastic Stop Nut M10, Brass

232501200

$2.64

4

Flat Washer 10 mm, Stainless

234002600

$2.22

5

Shim 0.3 mm

272000053

$11.49

6

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

7

Elastic Stop Nut M10, Brass

232501200

$2.64

8

Flat Washer

211200051

$1.68

9

Reducer, Green This part replaces 271001586.

271002029

$16.49

10

RIDE PLATE - Call your local BRP dealership

271001705

Unavailable

10

RIDE PLATE - Call your local BRP dealership

271001706

Unavailable

11

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

Flat Washer M6, Stainless

234062600

$0.77

14

Anode Zinc

271001813

$18.99

15

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

16

Stainless Flat Washer M6

234061600

$0.33

17

FIXED GRATE - Call your local BRP dealership

271001671

Unavailable

17

FIXED GRATE - Call your local BRP dealership

271001672

Unavailable

18

Hex. Screw M6 X 16

207161660

$1.59

19

Stainless Flat Washer M6

234061600

$0.33

20

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

21

Stainless Flat Washer M6

234061600

$0.33

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

Flat Washer M6, Stainless

234062600

$0.77

24

Drive Shaft

204120284

$476.99

25

Drive Shaft Plug

272000173

$8.68

26

Norma Clamp

293650077

$7.41

27

Bellows

272000183

$28.99

28

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

29

O-Ring

293300044

$1.05

30

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

31

C-Clip

271001575

$6.11

32

SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001715.

271001834

Unavailable

33

Phillips Screw M5 X 35

208653560

$2.22

34

Flat Washer M5, Stainless

234051600

$0.77

35

Hex. Elastic Nut M5 | X

232551600

$1.15

36

Flat Washer 5 mm, Stainless

234052600

$0.77

37

LINK ROD - Call your local BRP dealership

204120255

Unavailable

38

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

39

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

40

Hex. Screw M6 X 30

207163060

$1.48

41

Stainless Flat Washer M6

234061600

$0.33

42

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

43

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable
