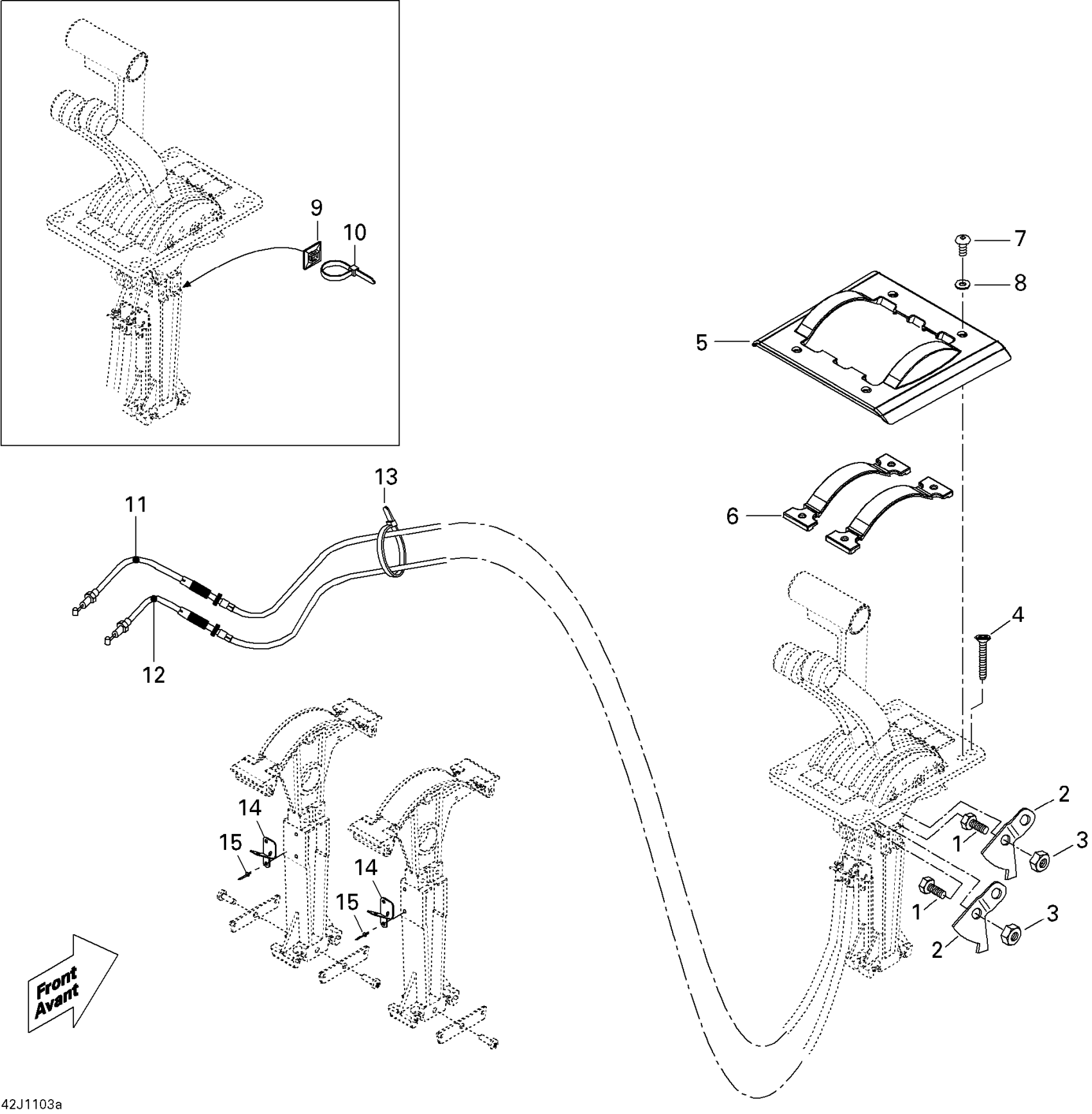

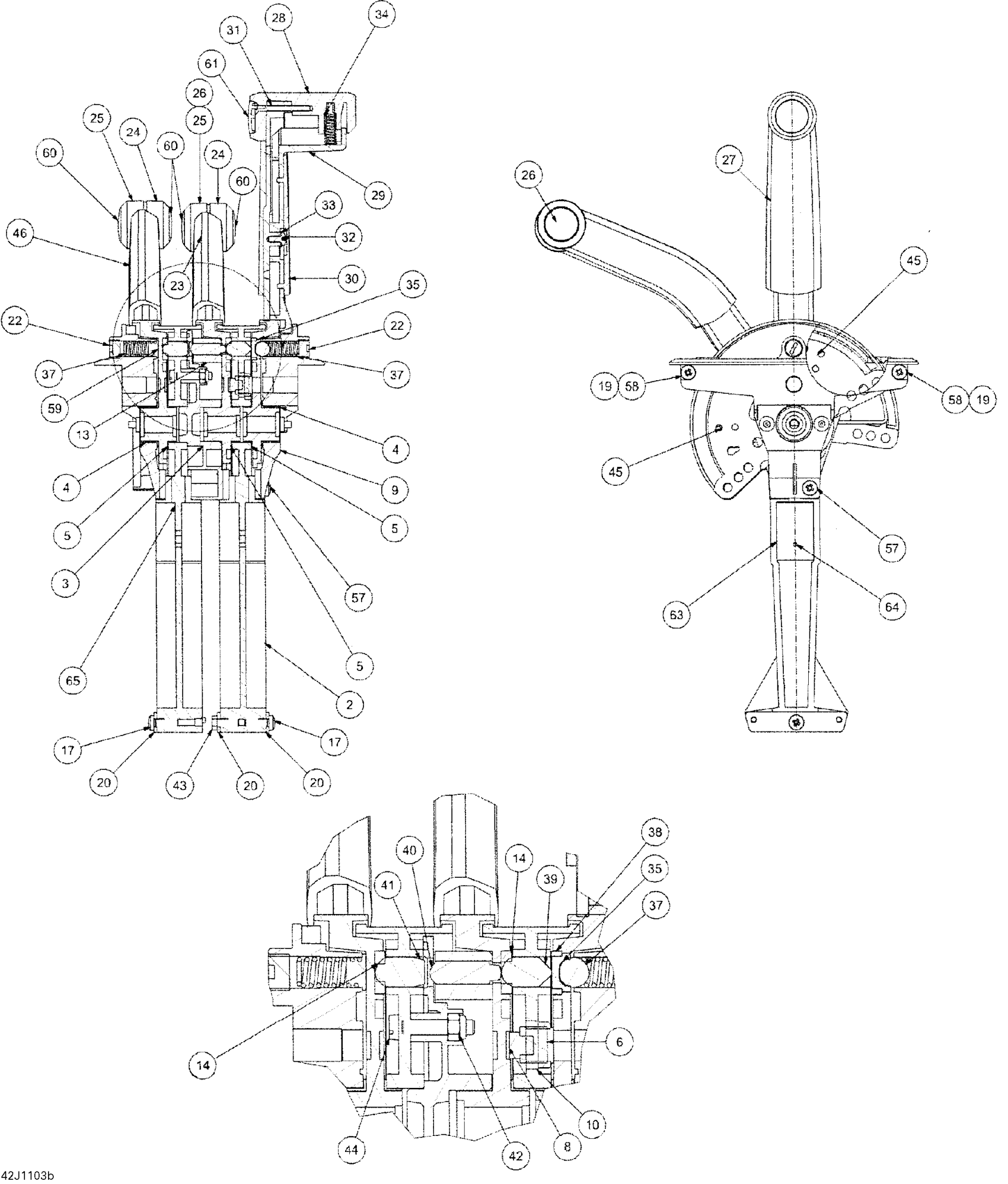

Sea-doo 200 Speedster 510, 2011 05- Control Handle Diagram
#
1
CONTROL HANDLE ASS'Y - Call your local BRP dealership | Includes 1 to 68
277001862
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
BUSHING - Call your local BRP dealership
277000397
Unavailable
5
BUSHING - Call your local BRP dealership
277000398
Unavailable
6
BUSHING - Call your local BRP dealership
277001813
Unavailable
8
FRICTION PIN - Call your local BRP dealership
277001814
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
BUSHING - Call your local BRP dealership
277001816
Unavailable
13
THROTTLE LEVER SELECTOR - Call your local BRP dealership
277001817
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
17
SCREW M5 X 16 - Call your local BRP dealership
204130092
Unavailable
19
SCREW M5 X 20 - Call your local BRP dealership
204100016
Unavailable
20
RETAINING PLATE - Call your local BRP dealership
204390227
Unavailable
22
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
23
CENTRAL THROTTLE LEVER - Call your local BRP dealership
277001819
Unavailable
24
LEFT HALF KNOB - Call your local BRP dealership
277001820
Unavailable
25
RIGHT HALF KNOB - Call your local BRP dealership
277001821
Unavailable
26
SCREW - Call your local BRP dealership
277001822
Unavailable
27
MOLDED LEVER - Call your local BRP dealership
277001823
Unavailable
28
SHIFT KNOB - Call your local BRP dealership
277001824
Unavailable
29
LOCK - Call your local BRP dealership
277001825
Unavailable
30
LOCK COVER - Call your local BRP dealership
277001826
Unavailable
31
SCREW - Call your local BRP dealership
277001827
Unavailable
32
SCREW M4 X 8 - Call your local BRP dealership
277001828
Unavailable
33
WASHER - Call your local BRP dealership
277001829
Unavailable
34
SPRING - Call your local BRP dealership
277001830
Unavailable
35
BALL BASE - Call your local BRP dealership | Not Shown
277001831
Unavailable
36
BALL - Call your local BRP dealership
277000399
Unavailable
37
DETENT SPRING - Call your local BRP dealership
277001832
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
PIN - Call your local BRP dealership
277001834
Unavailable
40
PIN - Call your local BRP dealership
277001835
Unavailable
41
PIN - Call your local BRP dealership
277001836
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
SCREW M5 X 14 - Call your local BRP dealership
204130093
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Screw
277001839
Unavailable
46
RIGHT MOLDED THROTTLE LEVER - Call your local BRP dealership
277001840
Unavailable
57
Not Available As Spare Part - Friction Washer
Unavailable
58
Not Available As Spare Part - Friction Washer
Unavailable
59
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
60
RED KNOB CAP - Call your local BRP dealership
277001843
Unavailable
61
BLACK KNOB CAP - Call your local BRP dealership
277001844
Unavailable
63
MICROSWITCH - Call your local BRP dealership
277001846
Unavailable
64
SCREW M3X6 - Call your local BRP dealership | Not Shown
277001847
Unavailable
65
RH Frame
204130087
Unavailable
