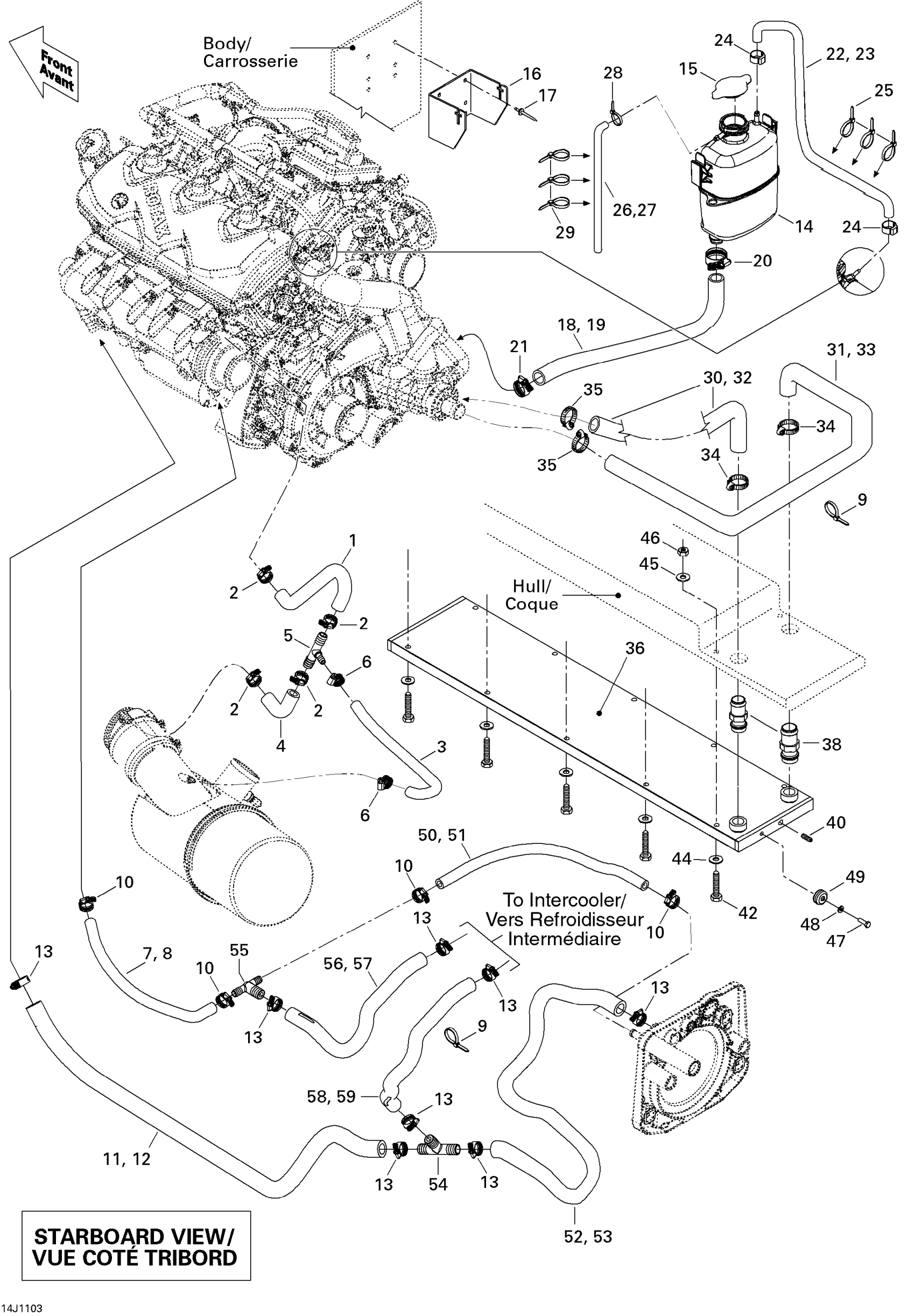

Sea-doo 200 Speedster 510, 2011 01- Cooling System Diagram
#
1
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
2
Tridon Gear Clamp
293650172
$3.09
3
Formed Hose | Without Catalyst
276000246
$19.49
4
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
5
T-Fitting
293710116
$17.62
6
Tridon Gear Clamp
293650171
$3.09
7
Was 276000001 Hose 12.5 mm
219704394
$51.99
8
Was 276000001 Hose 12.5 mm
219704394
$51.99
9
Tie Wrap 368 mm
293750008
$1.04
10
Tridon Gear Clamp
293650172
$3.09
11
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
12
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
13
Tridon Gear Clamp
293650051
$4.19
14
Coolant Tank
276000086
$109.99
15
Pressure Cap | Includes 720 to 720a
276000100
$25.99
16
COOLANT TANK BRACKET - Call your local BRP dealership
276000288
Unavailable
17
Pop Rivet 3/16"
204000081
$1.49
18
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
19
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
20
Tridon Gear Clamp
293650051
$4.19
21
Tridon Gear Clamp
293650019
$5.82
22
Was 275500549 Hose 1/4"
219704357
$194.99
23
Was 275500549 Hose 1/4"
219704357
$194.99
24
Oetiker Gear Clamp
293650025
$3.09
25
Tie Wrap 142 mm
293750002
$1.25
26
Polyurethane Hose 10000Mm Long
219704410
$56.99
27
Polyurethane Hose 10000Mm Long
219704410
$56.99
28
Tie Wrap 94 mm | 4X4
293750001
$1.03
29
Tie Wrap 142 mm
293750002
$1.25
30
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
31
Ride Plate Hose This part replaces 204300172.
423465058
$43.99
32
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
33
Starboard Formed Hose - Call your local BRP dealership
204300174
Unavailable
34
Tridon Gear Clamp
293650045
$5.69
35
Tridon Gear Clamp
293650045
$5.69
36
HEAT EXCHANGER - Call your local BRP dealership
204300255
Unavailable
38
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
40
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
42
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
44
Flat Washer 10 mm, Stainless
234000600
$1.46
45
Flat Washer 10 mm, Stainless
234002600
$2.22
46
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
47
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
48
Stainless Flat Washer M6
234061600
$0.33
49
Anode Zinc
271001813
$18.99
50
Was 276000001 Hose 12.5 mm
219704394
$51.99
51
Was 276000001 Hose 12.5 mm
219704394
$51.99
52
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
53
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
54
T-Fitting
293710131
$15.87
55
T-Fitting
293710132
$12.65
56
FORMED HOSE - Call your local BRP dealership
276000242
Unavailable
57
FORMED HOSE - Call your local BRP dealership
276000242
Unavailable
58
FORMED HOSE - Call your local BRP dealership
276000242
Unavailable
59
FORMED HOSE - Call your local BRP dealership
276000242
Unavailable
