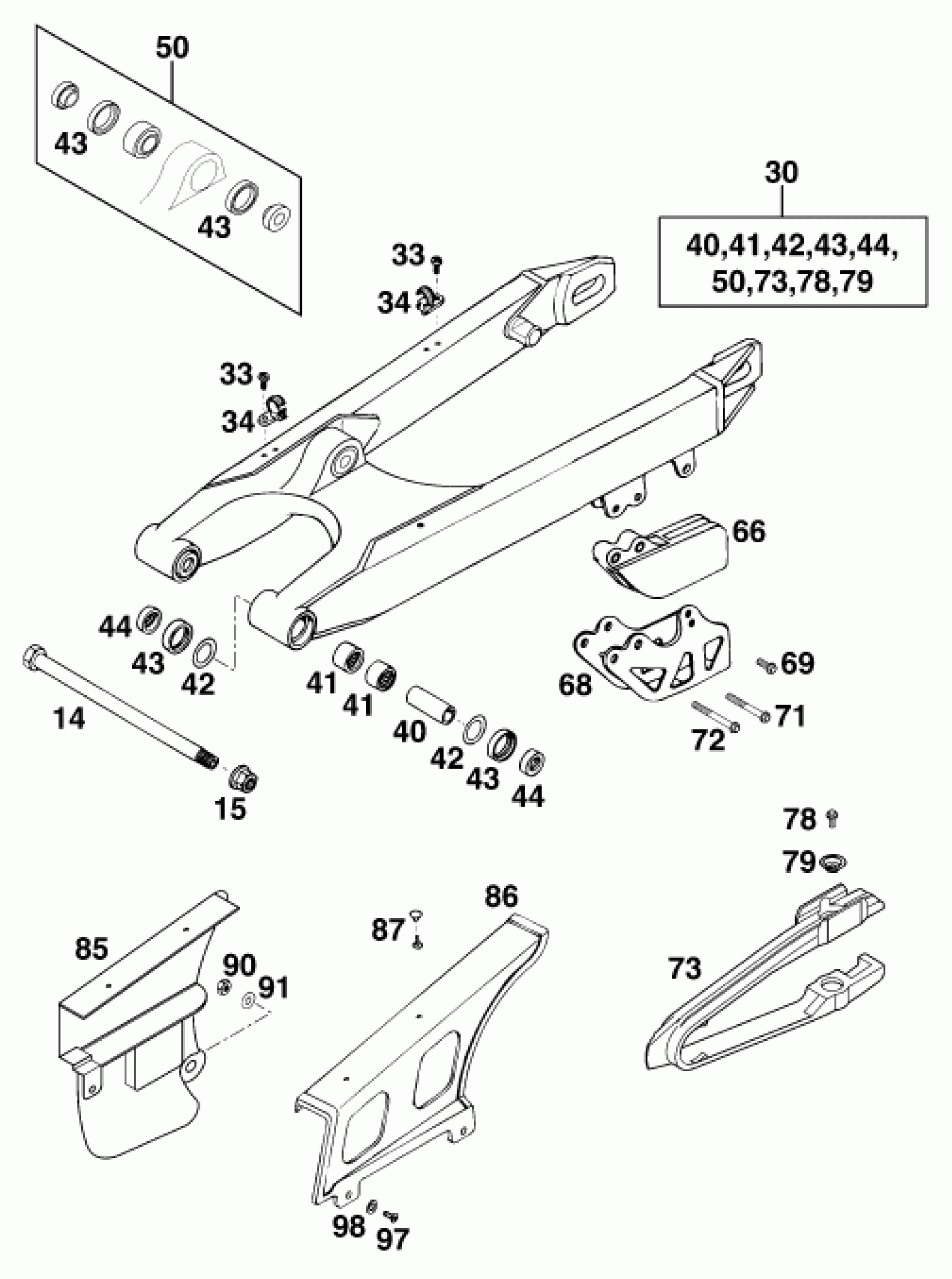

KTM 200 MXC '99 <1999 SWING ARM Diagram

#

Description
Price

14

54603014000

Unavailable

15

Self locking nut M14x1.5 WS19

54603015000

$5.51

30

SWINGARM CPL.PDS 125-380 '99

50304030144

$376.60

33

SPECIAL SCREW M 5,0X10

0010050103

$2.05

34

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

40

Bushing sleeve 15x20x48

54603081000

$24.77

41

Needle bushing HK 2016 / 20x26

54603097000

$15.04

42

STOP DISK 22,2X31,7X1

54603036000

$3.08

43

radial shaft seal 25x32x7

0760253270

$6.63

44

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

50

PIVOT BEARING+BUSH. PDS '99

50304090044

$64.69

66

CHAIN GUIDE REAR '94

54607066100

$28.60

68

RETAINING PLATE

54607070100

Unavailable

69

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

71

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

72

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

73

CHAIN GUARD '97

50304066000

$25.52

78

SPECIAL SCREW M 5,0X10

0009050103

$2.05

79

BUCKET

72210079000

$3.00

85

CHAIN GUARD EXC '97

50304060000

$5.97

86

CHAIN GUARD LARGE EGS

54607460000

$33.77

87

HOLLOW RIVET TWO PARTS

20012062055

$3.08

90

Self lock. nut DIN985-M6-A2

0985060003

$2.05

91

Washer DIN9021-A 6.4

0021060003

$2.05

97

SPECIAL SCREW M 5,0X10

0010050103

$2.05

98

washer DIN 9021 A - 5.3

0021050003

$1.49
