REAR WHEEL

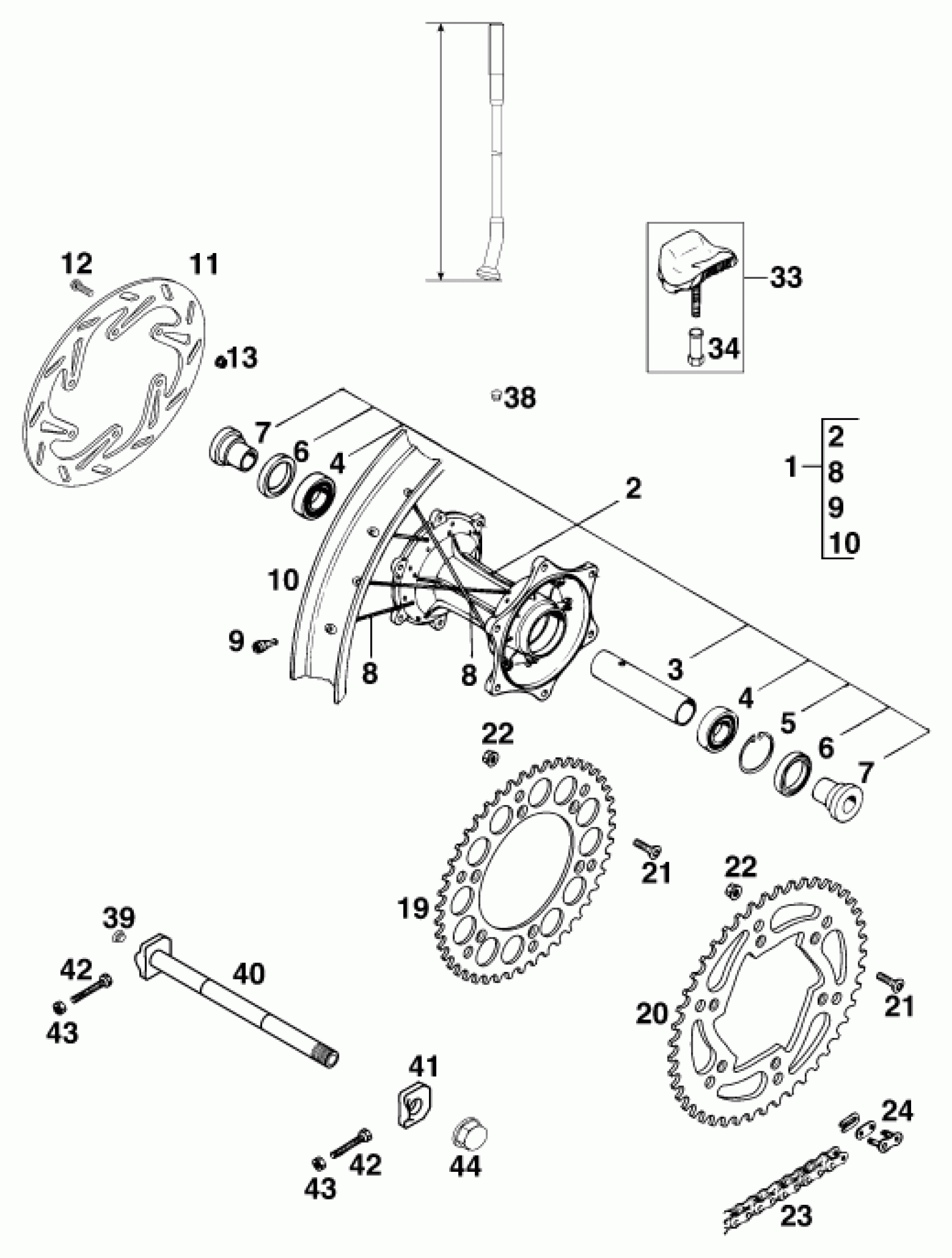

KTM 200 MXC '99 <1999 REAR WHEEL Diagram
#
1
REAR WHEEL CPL.2.15X18'' DID'
50310001044
Unavailable
1
5461000104490
Unavailable
2
5461001004490
Unavailable
3
BUSHING SPACER TUBE 121,5 MM
56510011000
Unavailable
4
Grooved ball bear.6005 DDU2CG2
0625060058
$18.32
5
CIRCLIP DIN0472-47X1,75
0472047175
$3.08
6
Radial shaft seal 32X47X7 BSL
0760324771
$13.36
7
BUSHING FOR HUB
54610016000
$32.90
8
SPOKE M5X200-10G 18'' DDE
58310071200
Unavailable
8
SPOKE M5X211-10G 19'' DDE
58310071211
Unavailable
9
STEEL NIPPLE M5
56509072000
Unavailable
10
REAR RIM 2,15X19'' EXCEL AL4
54610070100
$252.81
10
REAR RIM 2,15X18'' DID
54610070300
$198.44
11
REAR BRAKE DISK 220MM
54610060200
$135.01
12
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
13
SELF LOCKING NUT M6
56509064000
Unavailable
19
REAR SPROCKET 38-T
58310051038
Unavailable
19
REAR SPROCKET 42-T
58310051042
Unavailable
19
REAR SPROCKET 40-T
58310151040
Unavailable
19
REAR SPROCKET 45-T
58310151045
Unavailable
20
REAR SPROCKET 48-T
58310151048
$50.58
20
REAR SPROCKET 50-T
58310151050
$56.00
20
REAR SPROCKET 52-T
58310151052
$50.58
21
SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
22
54310086000
Unavailable
23
50010065000
Unavailable
23
* CHAIN /M 5/8X1/4" PER METRE
50010065001
Unavailable
23
50010065100
Unavailable
23
X-R.CHAIN 5/8X1/4''/M W.LINK
50010065101
Unavailable
24
MASTER LINK 5/8X1/4''
50010066000
Unavailable
24
MASTER LINK 5/8X1/4'' X-RING
50010066100
$13.27
33
RIM LOCK VM3 (2.15'')
54010100100
$20.56
34
NUT FOR WHEEL HOLDER '96
50310090050
$5.23
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
$3.08
40
WHEEL SPINDLE REAR CPLL=264MM
50210085044
$70.38
41
CHAIN TENSIONER '95
56510084100
$11.28
42
HH SCREW M8X40 WS=10
50203030090
$4.11
43
Hexagon nut DIN934 M8
0934080003
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
