REAR BRAKE CONTROL

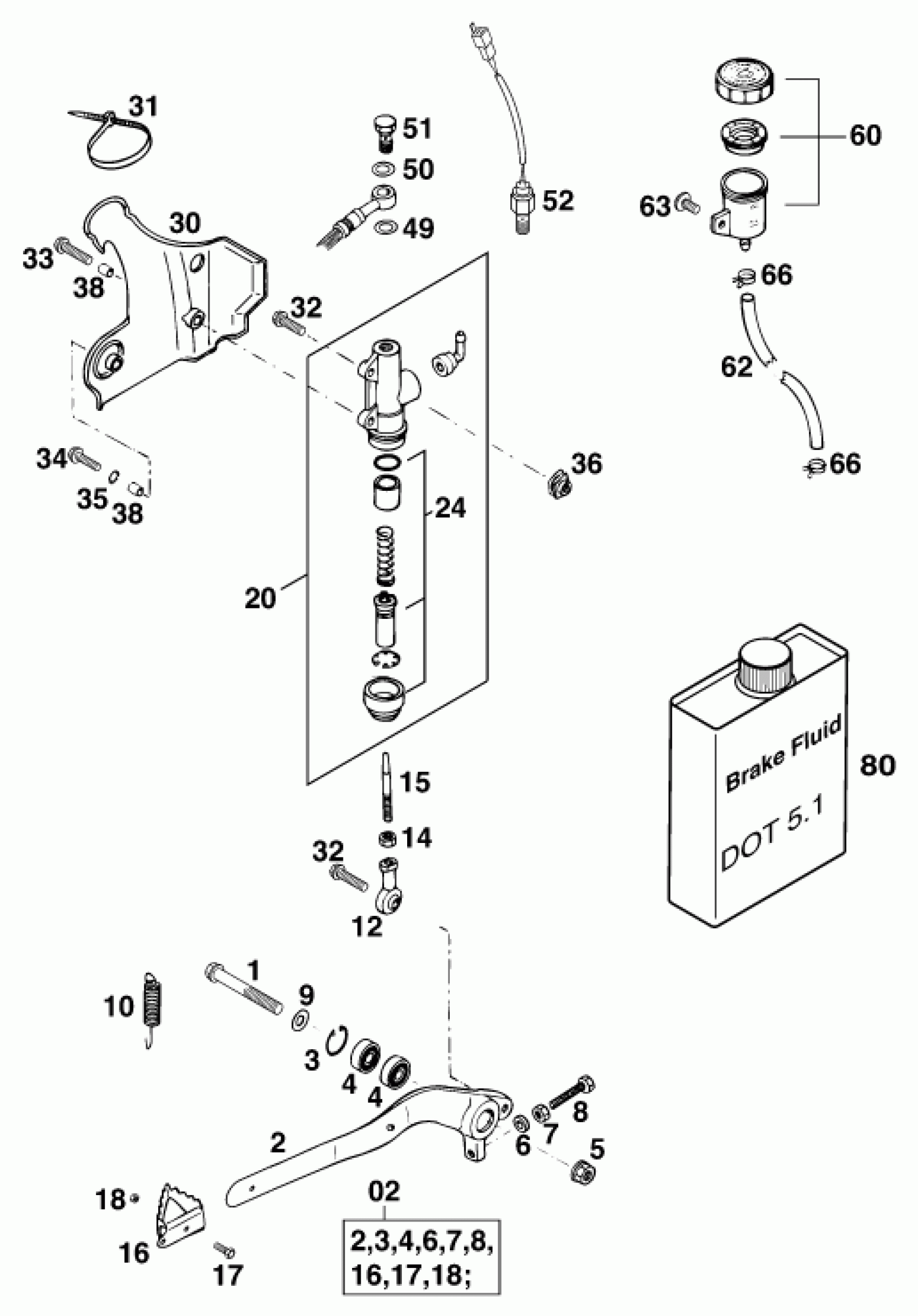

KTM 200 MXC '99 <1999 REAR BRAKE CONTROL Diagram
#
Description
Price
1
HH COLLAR SCREW M 8X60 WS=10
0015080603
$3.08
2
FOOT BRAKE LEVER CPL. 250'91
54603060144
$68.55
3
CIRCLIP DIN0472-22X1
0472022100
$2.05
4
Grooved ball bearing 608 2RS C
0625006087
$21.40
5
54310086000
Unavailable
6
WASHER 6 X 12 X 3
12011016000
$1.49
7
Hex. nut DIN 934 M6
0934060003
$1.49
8
HH SCREW DIN0933-M 6X35
0933060353
$1.49
9
washer DIN 125 A -8.4
0125080003
$1.49
10
RETURN SPRING FOR BRAKELEVER
54603062000
$6.54
12
SWIVEL HEAD M6 FOOT BRAKE LEV.
54603069000
$37.20
14
Hex. nut DIN 934 M6
0934060003
$1.49
15
PRESSURE ROD ALU 250 '90
54603068000
$6.35
16
STEP PLATE FOR BRAKE LEVER
54603060150
$13.92
17
HH SCREW DIN0933-M 5X16
0933050163
$1.49
18
Self locking nut DIN 985 M5
0985050003
$2.05
20
MAIN BRAKE CYLINDER '89
54513101044
$126.73
24
REPAIR KIT PISTON 13MM
54513150000
$46.46
30
BRAKE CYLIND. PROTECTOR 250'
54613038000
Unavailable
31
Cable tie 200/4.6mm black
44011076200
$1.49
32
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
33
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
34
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
35
Pair of washers M6 NORDLOCK
50233041000
$4.11
36
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
38
SPACER BUSHING 6,5 X 8 X 7
58011039000
$2.05
49
CU-SEAL RING DIN7603-10X16X1,5
42013026000
$2.05
50
CU-SEAL RING DIN7603-10X16X1
42013226000
$2.05
51
HOLLOW SCREW M10X1X19
50213025000
$6.54
52
BRAKE LIGHT SWITCH REAR '98
50311051100
$36.92
60
BRAKE FLUID RESERVOIR '89
54513030044
$20.56
62
HOSE FOR RESERVOIR 6X1,5
58007016101
Unavailable
63
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
66
YDNAC-clamp 10101 (10.4MM)
58007017000
$3.08
80
BRAKE FLUID DOT 4.0
306054
Unavailable
