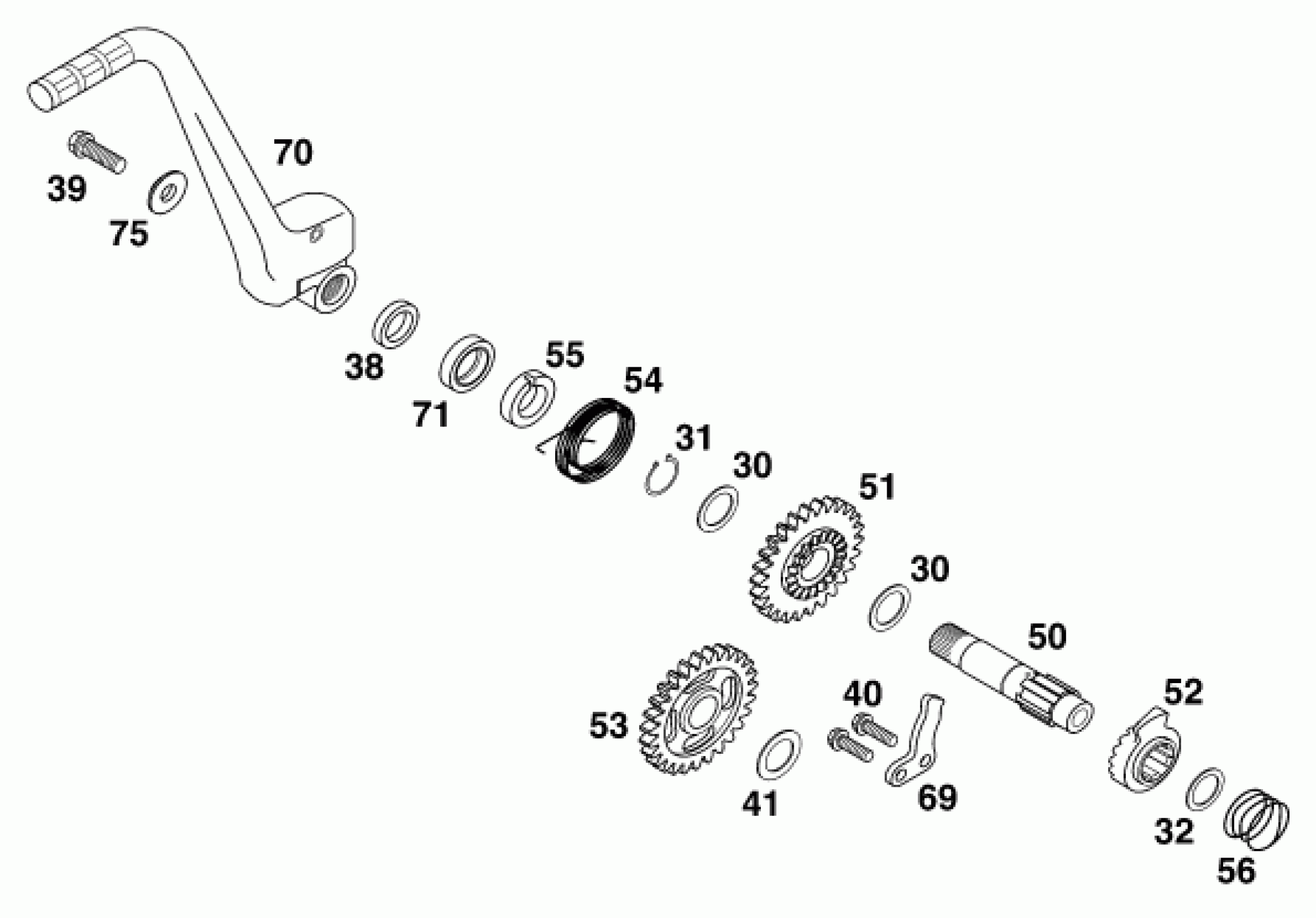

KTM 200 MXC '99 <1999> KICK STARTER Diagram

#

Description
Price

30

STOP DISK 17,2X24X1

50333030000

$5.23

31

CIRCLIP DIN0471-17X1

0471170010

$2.05

32

THRUST WASHER DIN0988-16X22X1

0988162210

$2.05

38

SPACER BUSHING 16X23X6,1 '

50333038000

Unavailable

39

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

40

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

41

STOP DISC 17,2X26X1 B

50333041000

$3.08

50

KICKSTARTER SHAFT 125/200'98

50333050000

$96.39

51

KICKSTART.GEAR 26-T 125/200'98

50333051026

$115.56

52

KICKSTARTER RATCHET

50333052000

$101.63

53

INTERMEDIATE GEAR 27-T '

50333053027

Unavailable

54

KICKSTARTER SPRING 2,6MM '98

50333054000

$9.06

55

DRIVING HUB 125/200'98

50333055000

$5.79

56

SPRING 1,4MM '98

50333056000

$3.08

69

STOP MET.SHEET 4MM 125/200'98

50333069000

$15.98

70

KICKSTARTER CPL. 125/200'98

50333070044

$133.70

71

SHAFT SEAL RING 17X28X7 B

0760172870

$8.03

75

WASHER 8,2X22X4,5 '98

50333075000

$5.79
