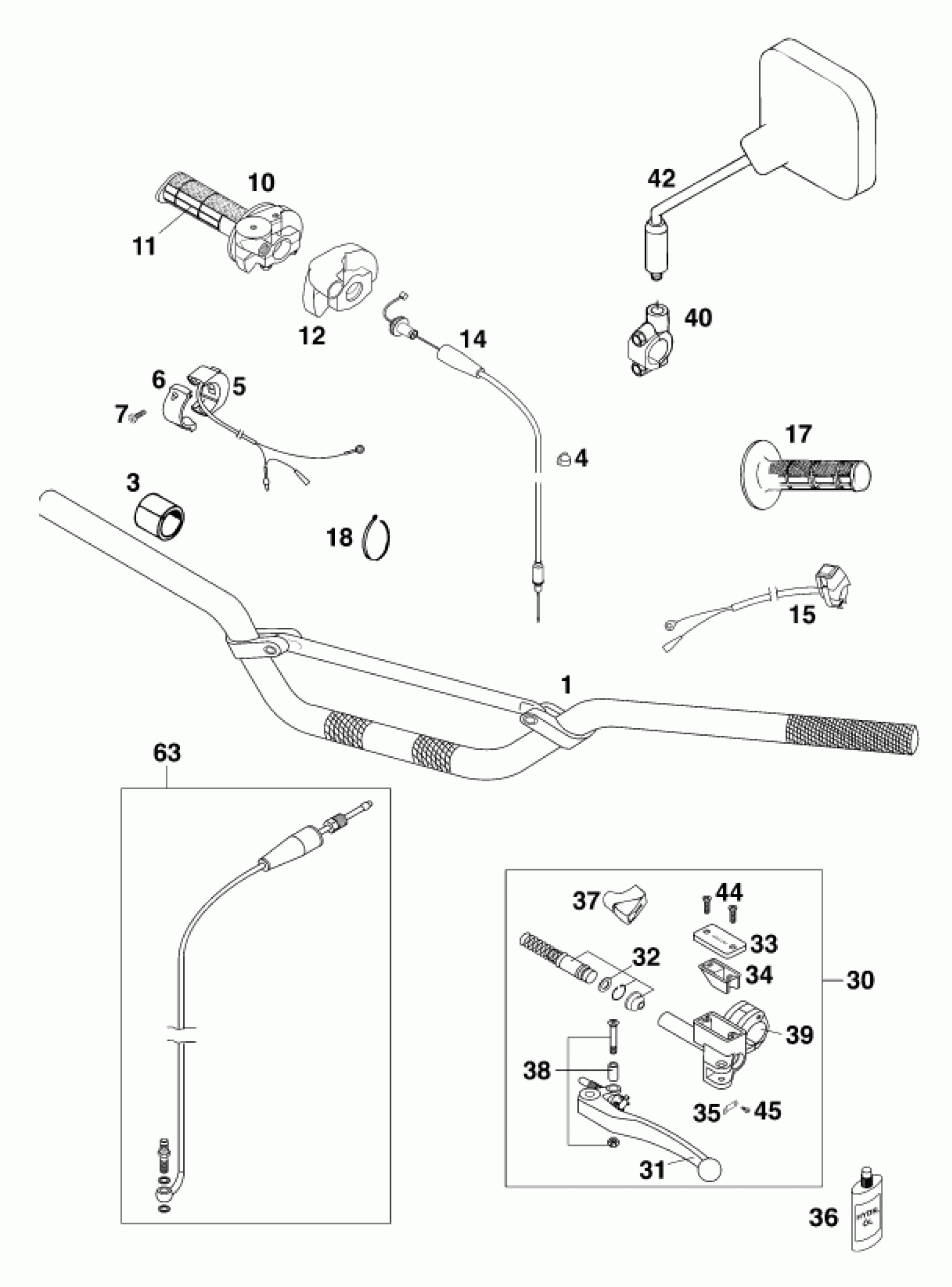

KTM 200 MXC '99 <1999 HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

Rear view mirror right

58012140000

Unavailable

1

ALU-HANDLEBAR '95

50202001000

$62.49

3

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

4

WIRING HOLDER 12MM

57013072000

$4.11

5

ENGINE STOP SWITCH CEV

50311074000

$52.16

6

CLAMP ENGINE STOP SWITCH

50311074050

$3.08

7

FLAT HEAD SCREW DIN7985-M 4X15

0985040153

$2.05

10

THR.TWIST CRIP CPL. W.O C.'97

50302010000

$67.31

11

TWIST GRIP COVER DOMINO BLACK

50202003000

$26.17

12

PROTECTION COVER '97

50302020000

$19.16

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

$39.45

15

SHORT CISCUIT BUTTON '

50311089000

Unavailable

17

FfIXED GRIP DOMINO BLACK '95

50202052000

$26.17

18

* CABLE TIE 200 X 5MM T50 R/SF

44011276200

Unavailable

30

MASTER CYL. CLUTCH 125-200'98

50302030000

Unavailable

31

CLUTCH LEVER CPL. 125-200 '98

50302031000

$40.10

32

REP.SET PISTON MAGURA D=10.5

50302032000

$70.77

33

COVER FOR HYDR. CLUTCH '98

50302033000

$26.83

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING PLATE FOR LEVER '98

50302035000

$1.90

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

39

CLAMP WITH PIN

50302030050

$30.20

40

MIRROR CLAMP L/S M10X1,25

50312042000

Unavailable

42

Rear view mirror left

58012040000

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

45

AH SCREW DIN7984-M 3X 6

0984030063

$1.49

63

PIPE KIT FOR HYDR. CLUTCH '98

50332063000

$79.09
