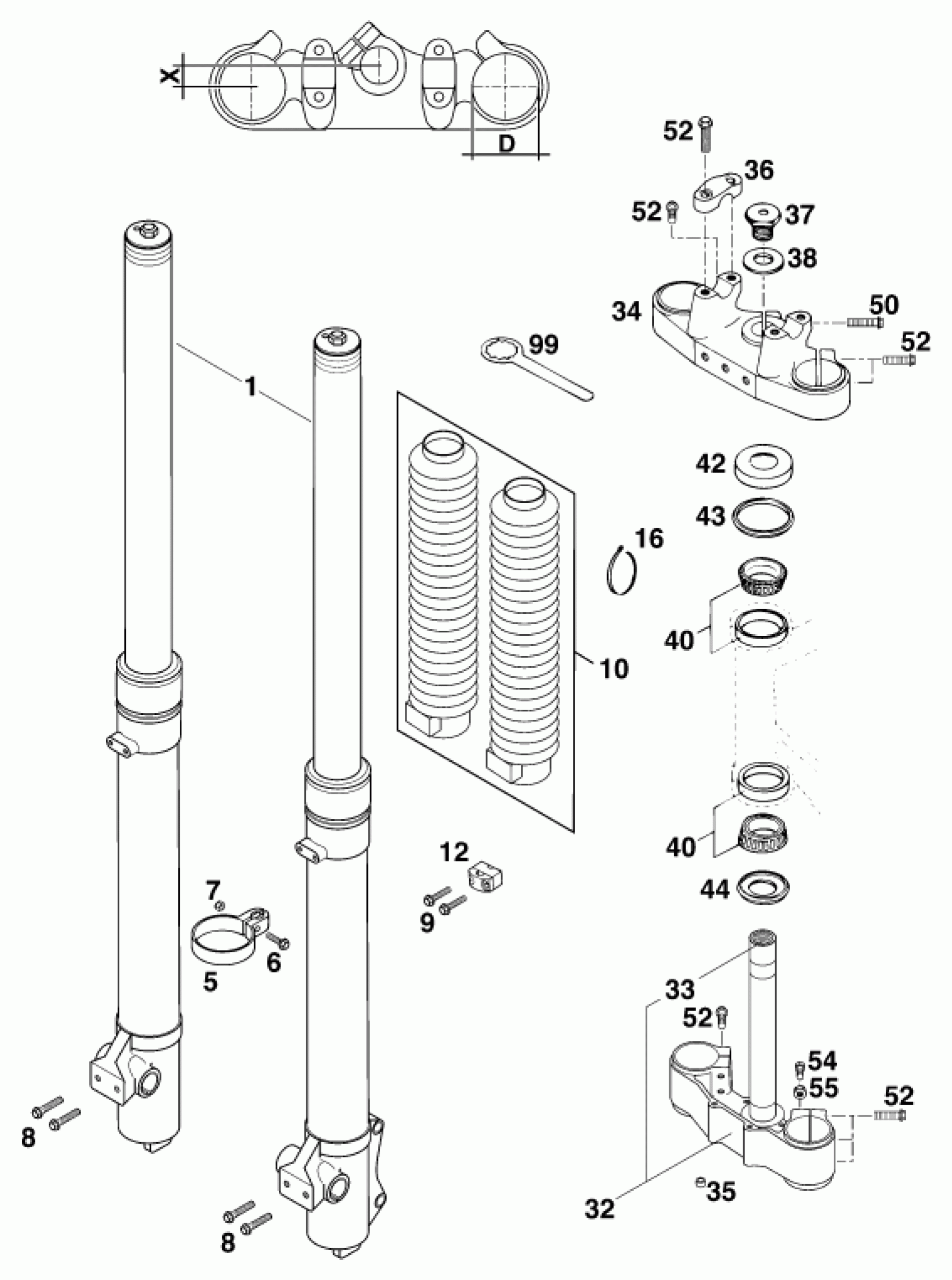

KTM 200 MXC '99 <1999 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

1

FORK LEGS CPL. "91" MARZ. '99

7124744

Unavailable

5

SPEEDOMETER CABLE GUIDE MARZO.

54601099000

$4.11

6

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

7

Self locking nut DIN 985 M5

0985050003

$2.05

8

H H COLLAR SCREW M 6X25 WS=10

7520196

$1.73

9

HH COLLAR SCREW M 5X30 WS=8

0015050303

$2.05

10

GARN.FORK BOOTS BLACK 45 MM

3951082

Unavailable

12

BRAKE HOSE CLAMP MARZOCCHI'95

54601085000

$4.11

16

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

32

BOTTOM TRIPPLE CLAMP 16MM/50MM

52301032016

Unavailable

33

FORK TUBE L=244 '91

50101033100

$85.17

34

TOP TRIPLE CLAMP X=16MM/45MM

52301034016

Unavailable

35

SPACER BUSHING 6X10X5

50301089000

$2.05

36

HANDLEBAR CLAMP '

54601038000

Unavailable

37

HH SCREW M20X1,5

56401043000

$19.86

38

WASHER 21X38X3

56401044000

$5.00

40

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

42

STEERING HEAD COVER

54201086000

$8.50

43

STEARING HEAD GASKET TOP

54601184000

$7.10

44

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

50

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

52

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

54

SPECIAL SCREW M8X21 WS=13

50301037000

$4.43

55

Hexagon nut DIN934 M8

0934080003

$2.05

99

RING WRENCH WS=32

54212035000

Unavailable
