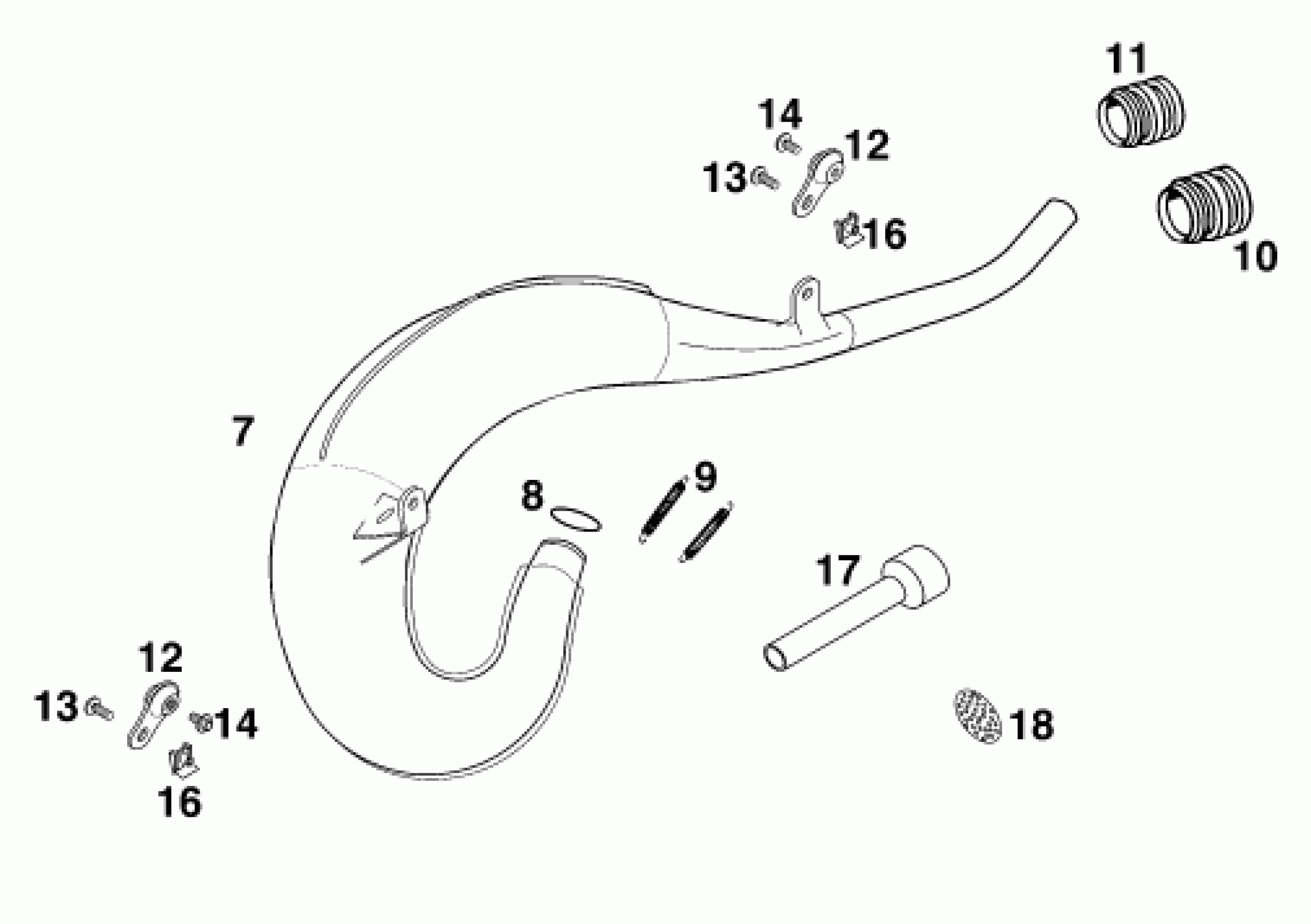

KTM 200 MXC '99 <1999> EXHAUST SYSTEM Diagram

#

Description
Price

7

EXHAUST PIPE NICKEL 125'98

50305008000

$339.88

7

EXHAUST PIPE NI. "KTM503" '98

50305009000

Unavailable

7

EXHAUST PIPE NICKEL 200'98

52305008000

Unavailable

7

EXHAUST PIPE NI. "KTM523" '98

52305009000

Unavailable

8

O-RING 38,00X1,20 VITON

0770380012

$5.23

8

O-RING 42,00X1,50 VITON

0770420015

$4.11

9

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

10

RUBBER SLEEVE D=21MM/23MM '93

54605057000

$20.66

11

SILICON SLEEVE D=25/27MM

54605157000

$32.53

12

Silent block for exhaust pipe

50305012000

$19.91

13

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

14

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

16

clip nut M6

54603048100

$4.11

17

50305001000

Unavailable

18

THROTTLE EXHAUST 200 EGS '98

52305001000

Unavailable
