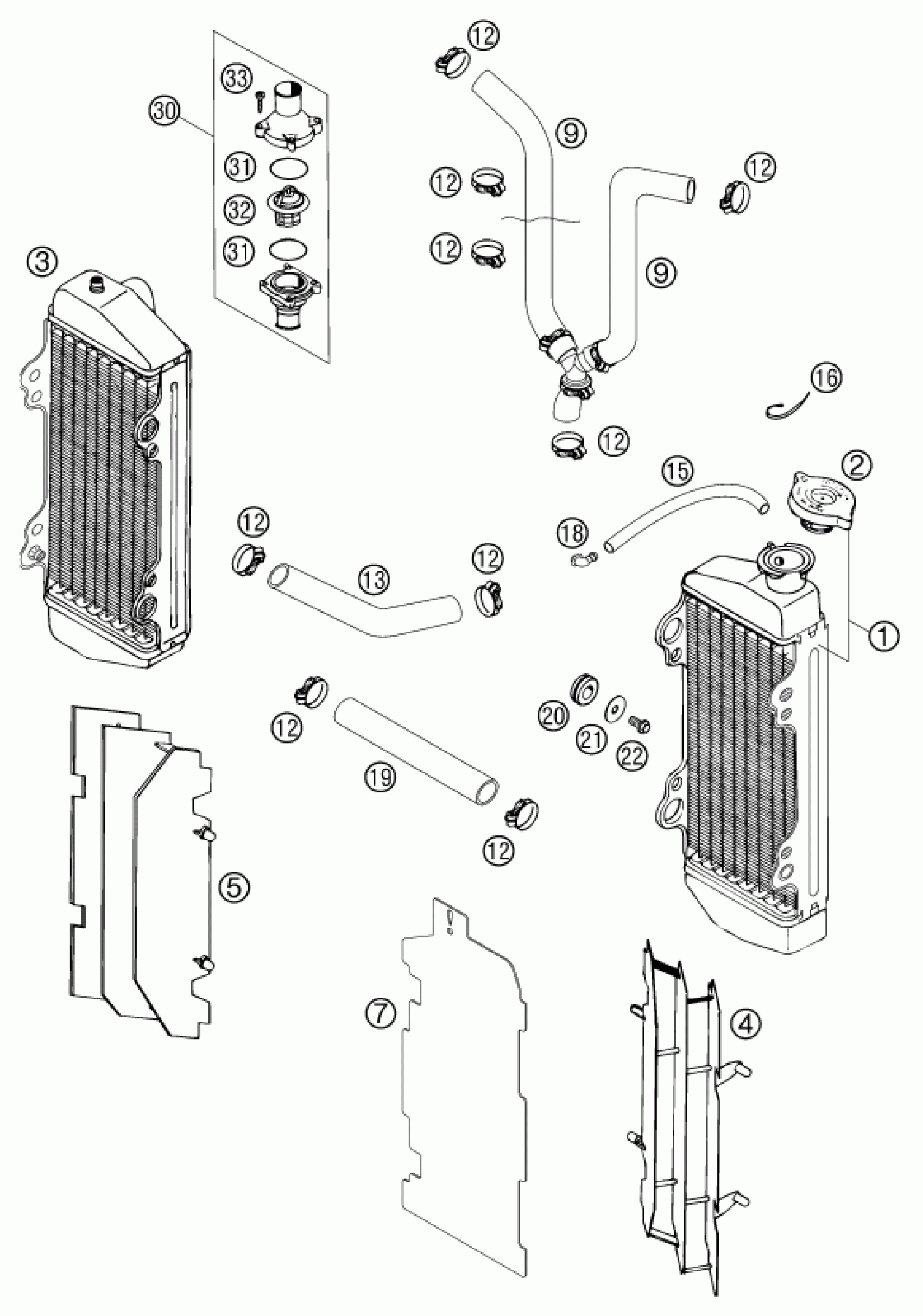

KTM 200 MXC '99 <1999 COOLING SYSTEM Diagram

RADIATOR L/S NATURE (45286)98

50335007000

$336.13

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

RADIATOR R/S NATURE (45285)98

50335008000

$302.31

RADIATOR PROTECTION LEFT '95

54635034200

$8.50

RADIATOR PROTECT.RIGHT '95

54635134200

$6.82

COVER FOR RADIATOR L/S BLACK

50335033000

$5.83

RADIATOR HOSE CPL. 125-380'98

50335026000

$49.92

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

RADIATOR HOSE 18X25 125/200'98

50335027000

$16.45

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

Cable tie 200/4.6mm black

44011076200

Unavailable

ANGLE PIECE '97

50303089000

$5.23

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

RUBBER SLEEVE D=12MM

41001052000

$4.11

Washer DIN9021-A 6.4

0021060003

$2.05

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

THERMOSTATCASE CPL. 55DEG. '98

54635013144

$70.10

O-RING 32,00X2,00

0770320020

$2.05

THERMOSTAT 55 DEGREES '94

54635017000

$51.00

SCREW FOR PLASTIC D=4X18

0016040183

$2.05
