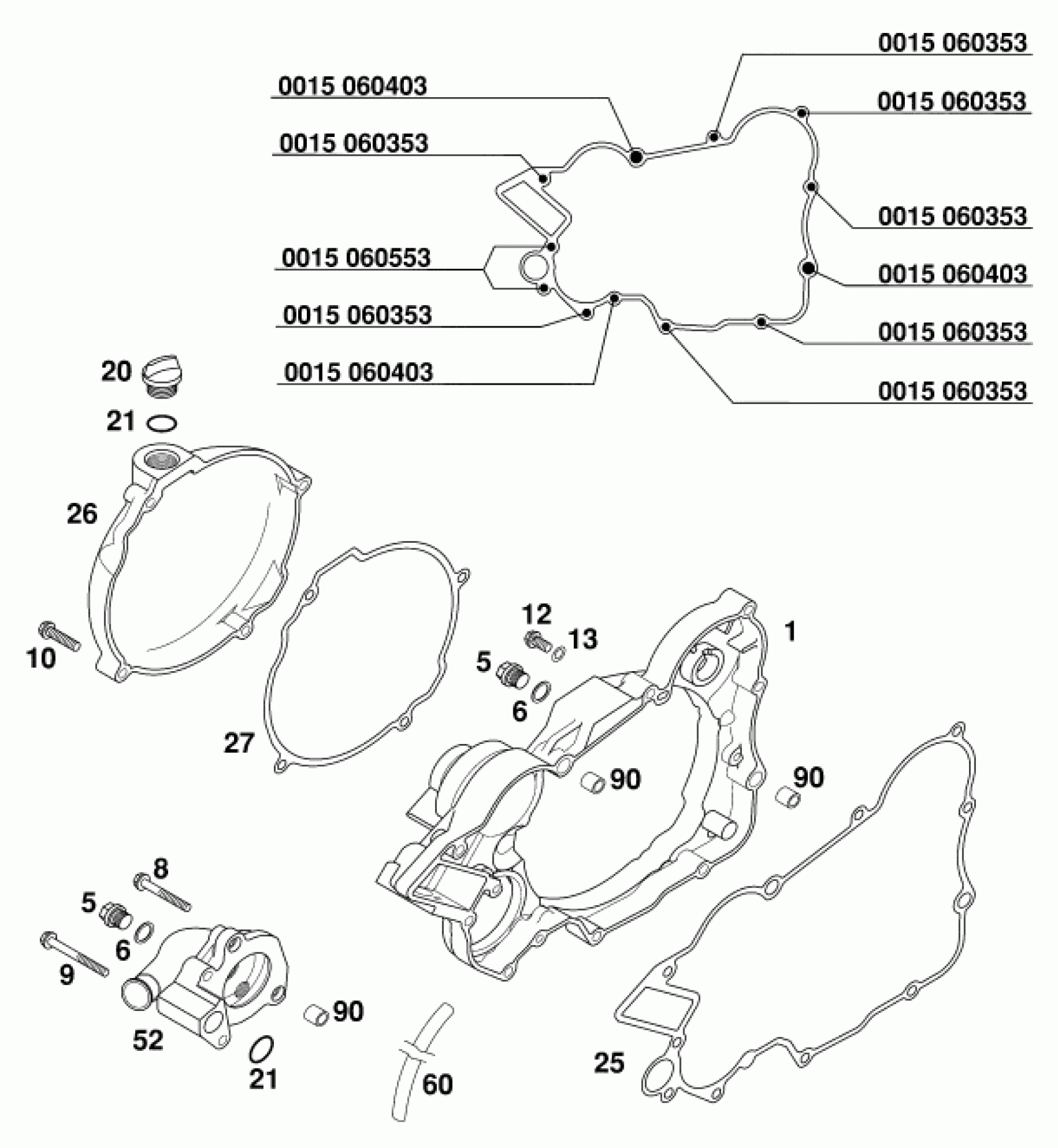

KTM 200 MXC '99 <1999> CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL. 125/200'

50330001044

Unavailable

5

PLUG DIN0910-M 10X1

0910100003

$4.11

6

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

8

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

9

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

12

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

13

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

20

PLUG M 24X3

58030020000

$5.23

21

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

25

CLUTCH COVER GASKET 0,5MM

50330025000

$15.14

26

CLUTCH OUTSIDE COVER '

50330026000

Unavailable

27

CLUTCH OUTS.COVER GASKET 1MM

50330027000

$14.58

52

WATER PUMP COVER 125/200 98

50335052000

$83.86

60

TUBE VINNYLAN 6X8,2 BLACK

50332095001

Unavailable

90

DOWEL 9,8 X 7 X 10

49030090000

$2.05
