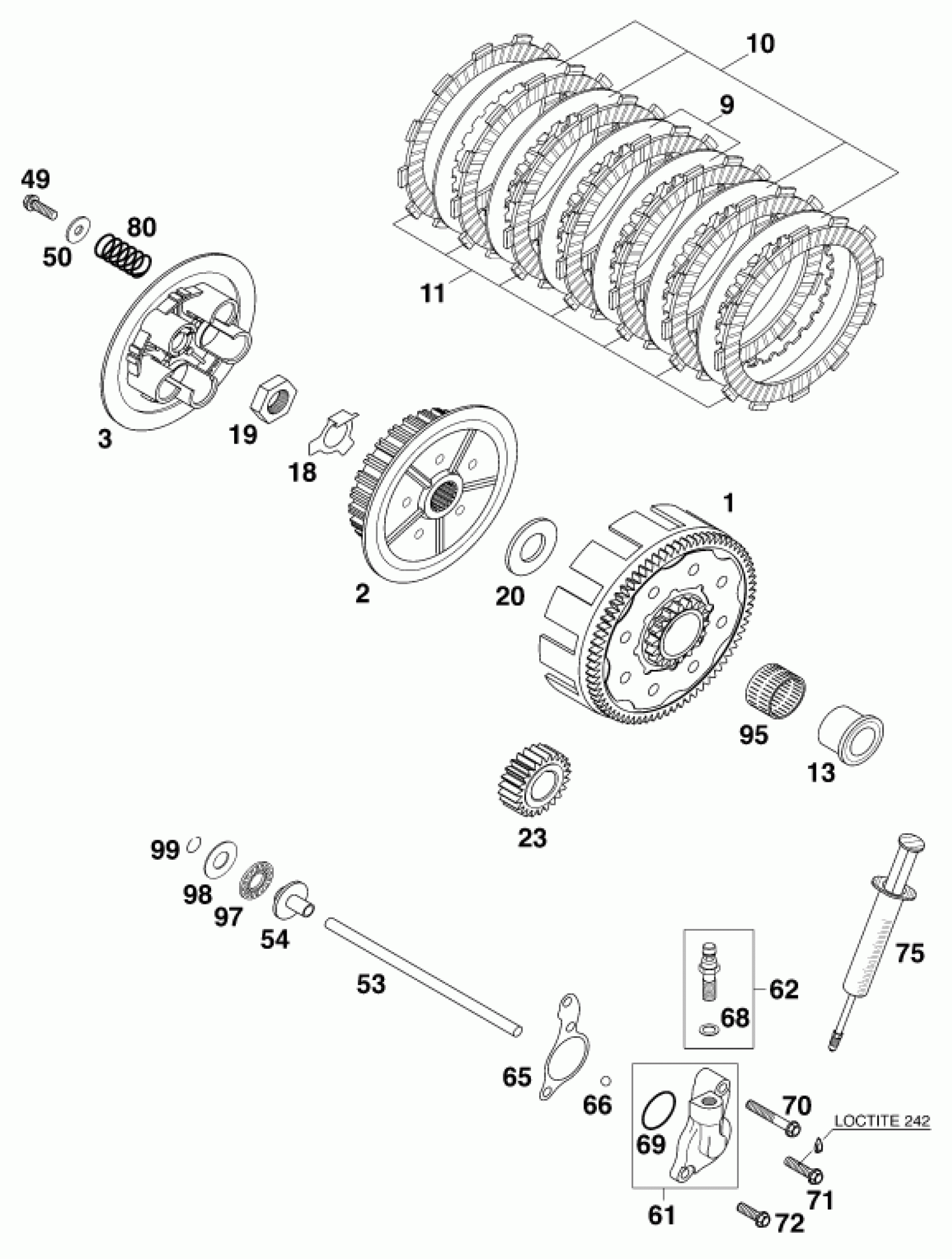

KTM 200 MXC '99 <1999> CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH H.73-T 125/200

50332000073

$451.97

2

INNER CLUTCH HUB 125/200'98

50332002000

$115.09

3

PRESSURE PLATE 125/200'98

50332003000

$86.95

9

INTERMEDI. DISC STEEL 1,5MM'98

50332010100

$14.76

10

INTERM'IATE DISC ALU 1,5MM'98

50332010000

$21.03

11

ORGANIC DISK 3MM '98

50332011000

$36.27

13

INNER RING 20X26X25,9 '98

50332013000

$30.19

18

SHEET METAL LOCK 1,5MM '98

50332018000

$6.26

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

20

STOP DISK 20X39,6X3 '98

50332020000

$16.35

23

PRIM. PINION 23-T 125/200'98

50332023023

$95.83

49

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

50

WASHER 6,2X18X2

50232050000

$5.23

53

PUSH ROD L=179MM 125/200'98

50332017200

$11.96

54

PRESSURE PIECE 125-380 '98

50332054051

$26.45

61

CYLINDER CPL. 125/200'98

50332061044

$166.61

62

Hollow screw cmpl. M 10x1 98

50332062000

$34.96

65

CLUTCH RELEASE GASKET 0,3MM

50332065051

Unavailable

65

CLUTCH RELEASE GASKET 0,5MM

50332065052

Unavailable

65

CLUTCH RELEASE GASKET 0,75MM

50332065053

Unavailable

66

BALL DIN5401-7

0401070003

$1.49

68

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

69

O-RING 23,52X1,78

0770020210

$2.05

70

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

71

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

72

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

80

CLUTCH SPRING 2,3X39,5 125'98

50332005000

$8.03

80

CLUTCH SPRING 2,4X40 200'98

52332005000

$3.08

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

98

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

98

AXIAL WASHER 12,5X25,8X1,5

54637098300

Unavailable

99

CIRCLIP DIN7993-RW12

0993012000

$3.08
