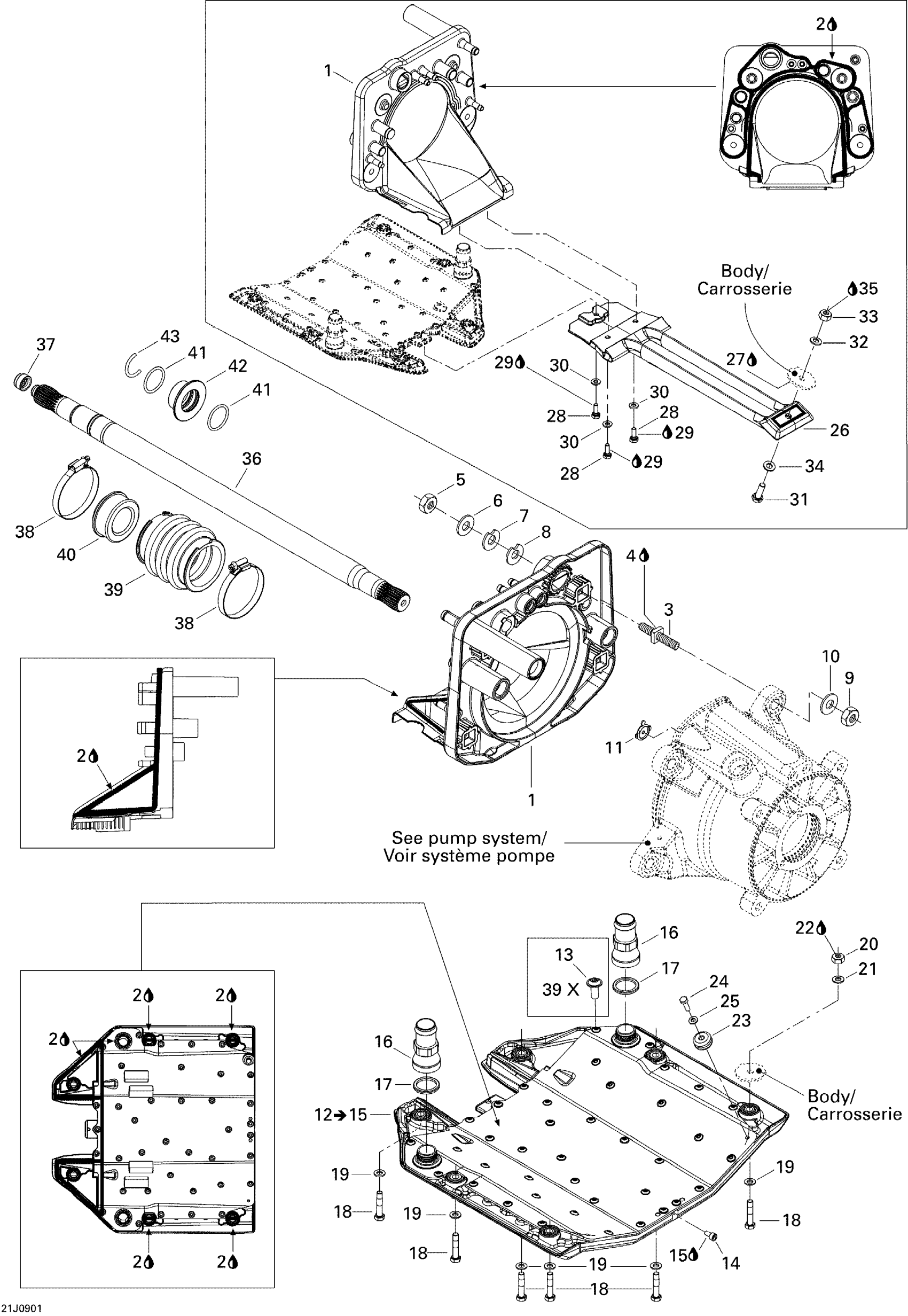

Sea-doo 150 Speedster 155, 2009 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120314

Unavailable

2

Instant Gasket

219701421

$51.99

3

Square Stud

250300022

$17.88

4

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

5

Elastic Stop Nut M10, Brass

232501200

$2.48

6

Flat Washer 10 mm, Stainless

234002600

$2.12

7

Shim 0.3 mm

272000053

$9.21

8

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

9

Elastic Stop Nut M10, Brass

232501200

$2.48

10

Flat Washer

211200051

$1.54

11

Reducer This part replaces 291001887.

291004649

$14.43

12

Riding Plate Ass'y | Includes 10 to 12

271001649

$252.96

13

Torx Button Head Screw M6 X 14

250000064

$7.06

14

Socket Drain Plug M6 X 12

250500005

$13.48

15

Was 293800013 Loctite 56765

219704454

$63.40

16

Straight Plastic Fitting

293710111

$7.90

17

O-Ring

293300121

$7.09

18

Hex. Screw M8 X 40

207084060

$2.12

19

Stainless, Flat Washer 8 mm

234081600

$0.52

20

Hex. Elastic Nut M8

232581600

$1.43

21

Flat Washer 8 mm, Stainless

234082600

$2.27

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

Anode Zinc

271001813

$15.64

24

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

25

Stainless Flat Washer M6

234061600

$0.28

26

GRATE - Call your local BRP dealership

271001560

Unavailable

27

Instant Gasket

219701421

$51.99

28

Hex. Screw M6 X 16

207161660

$1.40

29

Loctite 271, 10 ml

293800005

$23.85

30

Stainless Flat Washer M6

234061600

$0.28

31

Hex. Screw M8 X 40

207184060

$2.12

32

Stainless, Flat Washer 8 mm

234081600

$0.52

33

Hex. Elastic Nut M8

232581600

$1.43

34

Stainless, Flat Washer 8 mm

234081600

$0.52

35

Silicone Sealant 51388, 300 ml

296000309

$36.99

36

Drive Shaft This part replaces 271001534.

271001724

$305.19

37

Drive Shaft Plug

272000173

$8.06

38

Norma Clamp

293650077

$7.01

39

Bellows

272000183

$26.09

40

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

41

O-Ring

293300044

$0.99

42

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

43

C-Clip

271001575

$5.21
