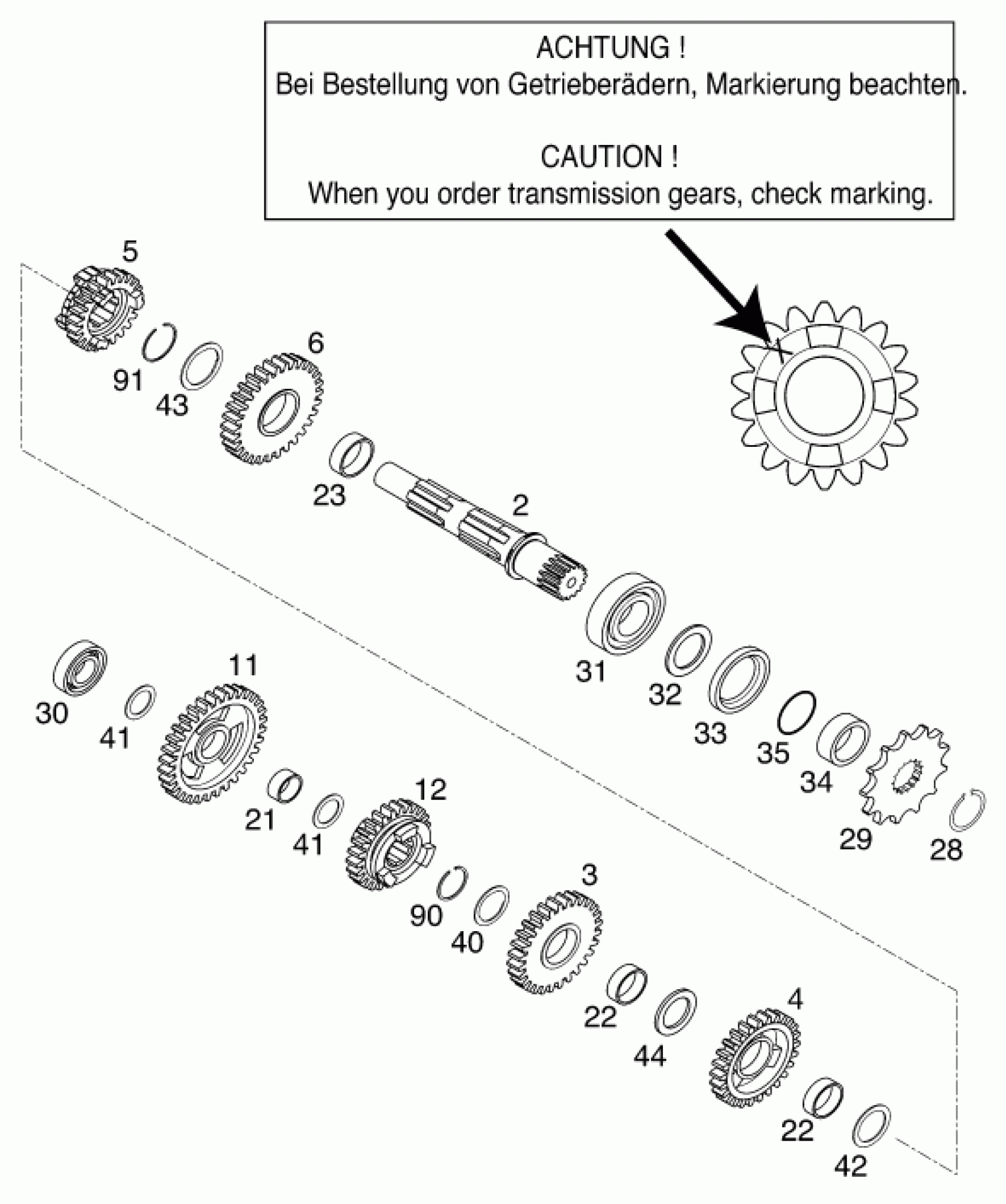

KTM 125 SUPERMOTO 100 2000 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

2

COUNTER SHAFT 125/200 '98

50333002000

$194.85

3

IDLE G.3RD G.28-T ''3S28'' '

50333003000

Unavailable

4

IDLE G.4TH G.26-T ''4S26'' '

50333004000

$117.71

5

SLIDING G.6TH G.24-T ''6S24'''

50333005000

$68.22

6

IDLER G. 2ND G. 31-T ''2G31'''

50333006100

$100.69

11

IDLER G. 1ST G. 33-T ''1G33'''

50333011300

$106.86

12

SLIDING G.5TH G.25-T ''5S25'''

50333012000

$118.64

21

IDLER GEAR BUSHING 17X20X9,7 B

50333021000

$21.59

22

IDLER GEAR BUSHING 22X25X8,1 C

50333022000

$21.12

23

IDLER GEAR BUSHING 25X28X9,7 D

50333023000

$28.23

28

LOCK RING DIN0471-25X1,64SD

52033096000

$5.23

29

FRONT SPROCKET 13-T

50033029013

Unavailable

29

FRONT SPROCKET 14-T

50033029014

$30.94

29

FRONT SPROCKET 15-T

50033029015

Unavailable

30

BALL BEARING 6003 TN9 C4

0625060031

$23.46

31

BALL BEARING 6205 TN9 C3

0625062058

$32.53

32

STOP RING

56033020000

$6.91

33

SHAFT SEAL RING 32X45X6,5

0760324565

$5.23

34

SPACER BUSHING 12MM

54633014100

$20.94

35

O-RING 23,00X2,00 NBR70

0770230020

$2.05

40

STOP DISC 22,2X27,8X1 A

50333040000

$5.23

41

STOP DISC 17,2X26X1 B

50333041000

$3.08

42

STOP DISK 22,2X28X1 C

50333042000

$5.23

43

STOP DISC 25,2X32X1

50333043000

$3.08

44

STOP DISC 22,2X30X2,5

50333044000

$6.26

90

LOCK RING 22X1,2

50133090000

$2.05

91

LOCK RING 25X1,2

52033090100

$3.08
