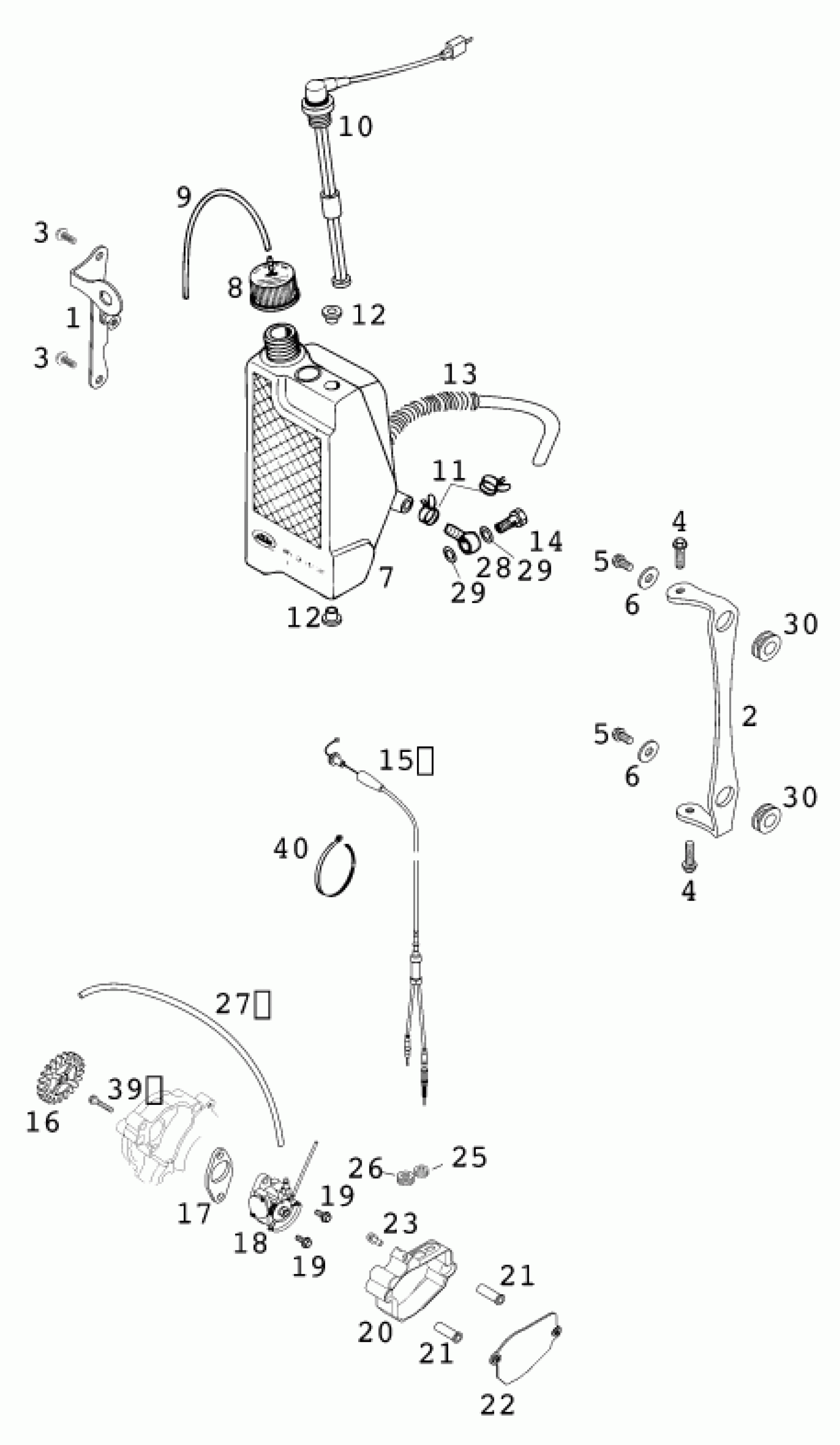

KTM 125 SUPERMOTO 100 2000 LUBRICATING SYSTEM Diagram

#

Description
Price

1

SPOILER BRACKET 125 EXE 2000

51208051020

Unavailable

2

OIL TANK BRACKET 125 EXE 2000

51238050050

Unavailable

3

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

4

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

5

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

6

Washer DIN9021-A 6.4

0021060003

$2.05

7

OIL TANK LOOSE COLOURLESS '97

51138061000

Unavailable

8

OIL TANK CAP

49138491044

$10.11

9

VENT HOSE 3X5X270

50131137000

Unavailable

10

OIL CONTR.SWITCH CPL. 185MM'97

51138062000

Unavailable

11

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

12

BUSHING

54635036000

$1.49

13

OIL LINE WITH SPRING L=330MM

42403467

Unavailable

14

HOLLOW SCREW M10 X 1

54313025000

$6.44

15

THROT.CABLE W.DISTRIBUT.SGP'99

52302091000

Unavailable

16

OIL PUMP WHEEL 21-T

52338001000

Unavailable

17

OIL PUMP GASKET '99

52338070010

Unavailable

18

COIL

51238070000

Unavailable

19

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

20

OIL PUMP COVER CPL. '99

52338074000

Unavailable

21

PASSPORT SOCKET D=12,3X34 '99

52338071000

Unavailable

22

COVER OIL PUMP '99

52338073000

Unavailable

23

* THREADED BUSH L=12MM WS=8 '

52338072000

Unavailable

25

RUBBER SLEEVE 5X7X3

52338075000

Unavailable

26

rubber grommet D=8mm open

31008060000

$2.05

27

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

28

RING COMPONENT 10/6MM

49138493000

$10.74

29

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

30

RUBBER SLEEVE D=12MM

41001052000

$4.11

39

HH COLLAR SCREW M 5X30 WS=8

0015050303

$2.05

40

CABLE TIE 100/2,5MM BLACK

44011076100

$1.49
