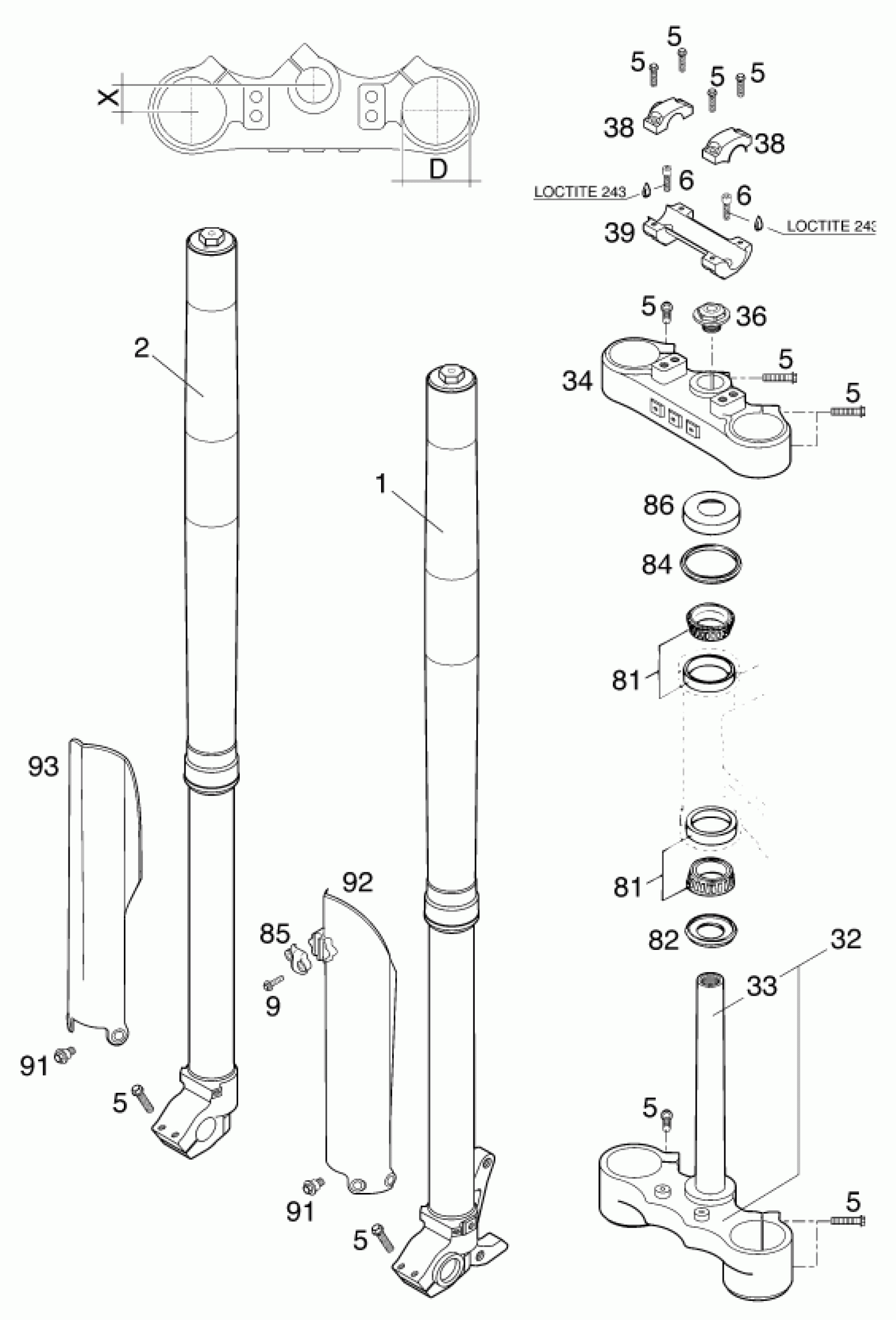

KTM 125 SUPERMOTO 100 2000 FRONT FORK, TRIPLE CLAMP Diagram

FORK LEG L/S WP 125 EXE 2000

0618T777LS

Unavailable

FORK LEG R/S WP 125 EXE 2000

0618T777RS

Unavailable

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

BOT.TRIP.CL.CPL.X=20MM/D=57M

59001132020

Unavailable

FORK TUBE L=244 '91

50101033100

$85.17

TOP TRIPLE CLAMP X=20MM/D=54

59001034020

Unavailable

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

$10.38

HANDLEBAR CLAMP 22MM 2T 20

59001038000

Unavailable

HANDLEBAR SUPPORT 22MM 2T 2000

59001039000

$53.05

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

STEARING HEAD GASKET TOP

54601184000

$7.10

CLAMP F. BRAKE HOSE SC '99

59001085000

$1.49

STEERING HEAD COVER

54201086000

$8.50

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

59001092000

Unavailable

59001093000

Unavailable
