FRONT FORK DISASSEMBLED

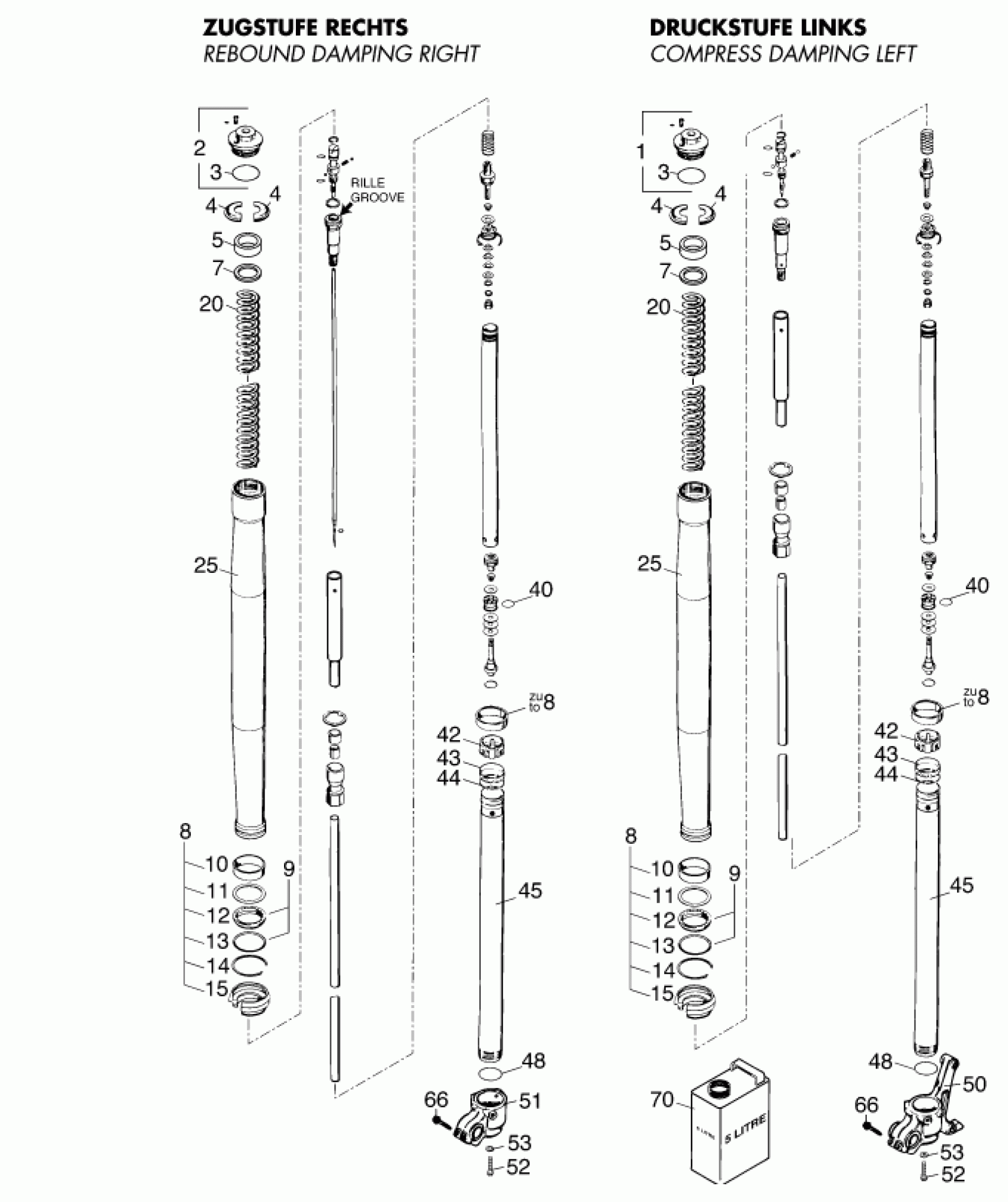

KTM 125 SUPERMOTO 100 2000 FRONT FORK DISASSEMBLED Diagram
#
Description
Price
1
% SCREW CAP CPL. L/S "COM"
58301008600
Unavailable
2
% SCREW CAP CPL. R/S "REB"
58301009600
Unavailable
3
O-RING 43,00X3,00
0770430030
Unavailable
4
% KEY HALF
54501050000
Unavailable
5
* PRELOAD BUSHING 25X34X5
56401022000
Unavailable
5
% PRELOAD BUSHING 25X34X10
56401022100
Unavailable
5
* PRELOAD BUSHING 25X34X2,5
56401022200
Unavailable
7
WASHER 24,5X34X2
54501019000
Unavailable
8
% REPAIR KIT SEAL S.RINGS+BUSH
50201668244
Unavailable
9
REPAIR KIT SEAL SHAFT RINGS
50201669244
Unavailable
10
GUIDE BUSHING 40 X 44 X 20-1
57501026000
Unavailable
11
RING 42X49,2X1,5
56401027000
Unavailable
12
SHAFT SEAL RING 40X49,5X9LF
58001805000
Unavailable
13
RING 49,5X45X1
56401127000
Unavailable
14
SEEGER LOCK RING SB50
56401029000
Unavailable
15
DUST BELLOWS D40 '
56401025100
Unavailable
20
* SPRING 4,2 N/MM SET
96010051S
Unavailable
25
OUTER TUBE L=550MM '97
58301004900
Unavailable
40
O-RING 15,60X1,78
0770020160
Unavailable
42
BUSHING
54501077000
Unavailable
43
ANILLO DE RODAMIENTO 42,8X13
54501045000
Unavailable
44
% RING 39X42X1
54501046000
Unavailable
45
% INNER TUBE L=520MM DUKE'
58301203000
Unavailable
48
O-RING 38,00X2,00 NBR 70 SH
0770380020
$3.08
50
AXLE CLAMP L/S 125 EXE 2000
40541389
Unavailable
51
AXLE CLAMP R/S 125 EXE 2000
40541388
Unavailable
52
* HH COLLAR SCREW M 8X30
54501082100
Unavailable
53
SEAL RING 8 X 12 X 2
58038032100
$1.49
66
HH COLLAR SCREW M 8X30
50600061
$3.08
70
FORKOIL REZ 71 SAE 5
40540882
Unavailable
