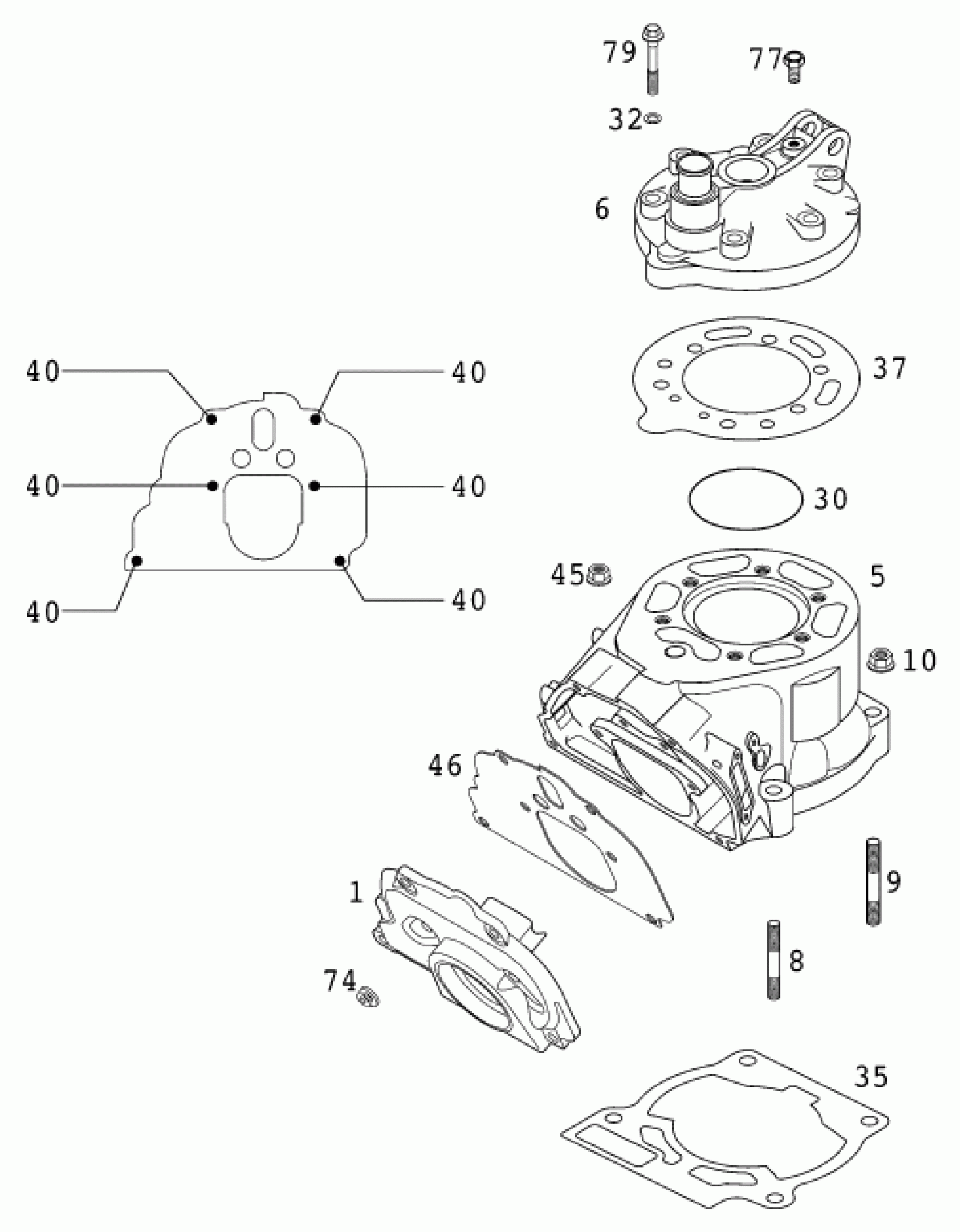

KTM 125 SUPERMOTO 100 2000 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

INTERMEDIATE FLANGE 125 2000

50337001100

$84.57

5

CYLINDER 54MM 125 EXE 2000

51230005000

Unavailable

6

CYLINDER HEAD 125 EXE 2000

51230006000

Unavailable

8

STUD DIN0835-M 8X27

0835080273

$3.08

9

STUD DIN0835-M10X35

0835100351

$5.23

10

COLLAR NUT M10 WS=13

54630044000

$1.49

30

O-RING 62,00X2,00 VITON

0770062020

$9.34

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

35

CYL.BASE GASKET 0,07MM PAPER

50330035007

Unavailable

35

CYLINDER BASE GASKET 0,15MM

50330035015

Unavailable

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

37

CYL.HEAD GASKET 1,1MM 125'98

50330037000

$15.15

40

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

45

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

46

INTERMED.GASKET 1,1MM 125 2000

50337046100

$13.60

74

RETAINING PLATE

51005074000

$3.08

77

HH SCREW DIN0933-M 6X10

0933060103

$1.49

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

$9.90
