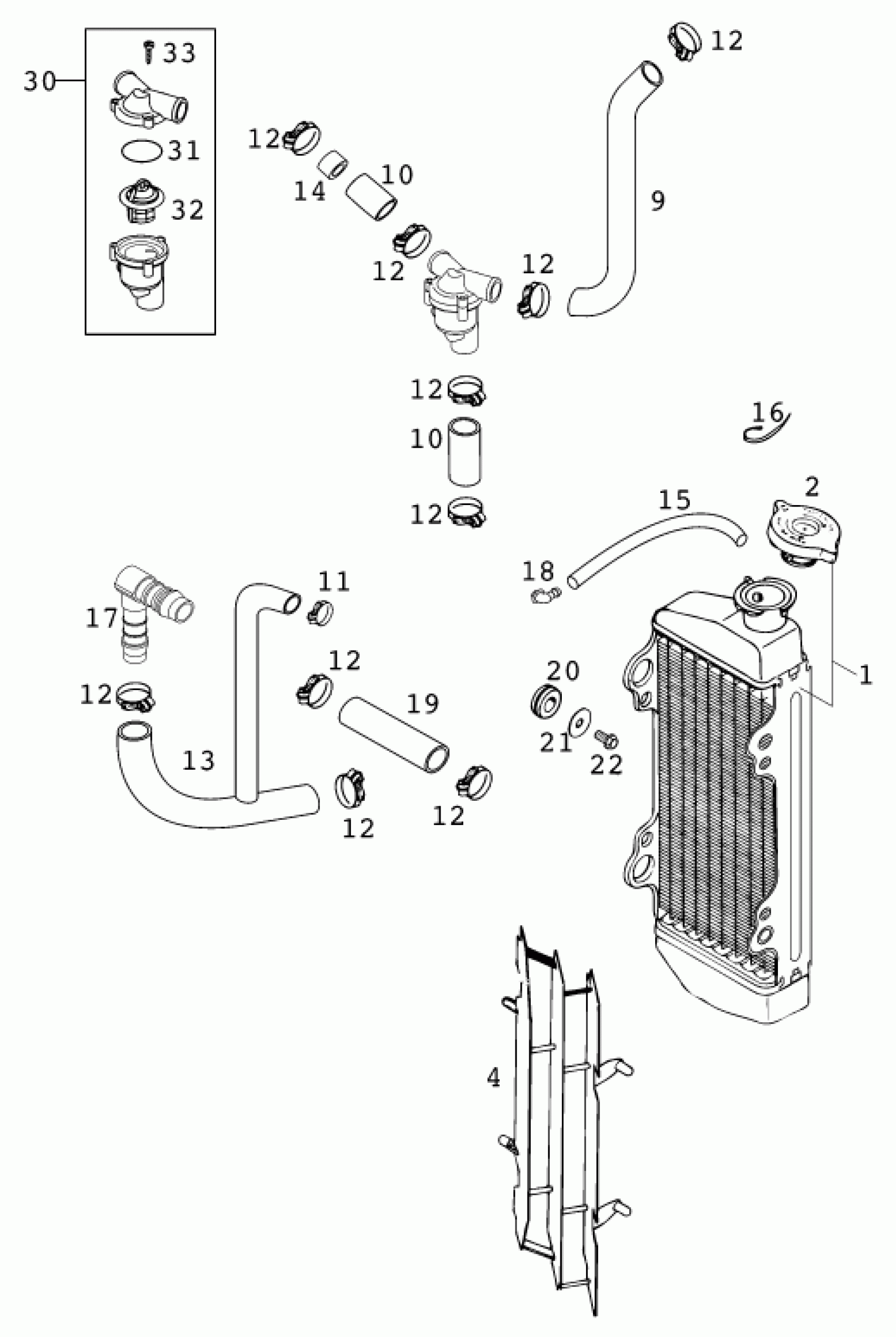

KTM 125 SUPERMOTO 100 2000 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S NATURE (45286)98

50335007000

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

4

RADIATOR PROTECTION LEFT '95

54635034200

Unavailable

9

RADIATOR HOSE 125/200'99

50335026100

Unavailable

10

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

11

HOSE CLAMP GEMI 10-16

58335099000

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

PREFORMED HOSE WAPU-RADIATOR

50335027100

Unavailable

14

LOCK PIECE

51235026000

Unavailable

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

17

ANGLE PIECE COOLING SYSTEM

51235027000

Unavailable

18

ANGLE PIECE '97

50303089000

Unavailable

19

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

Unavailable

21

Washer DIN9021-A 6.4

0021060003

Unavailable

22

HH COLLAR SCREW M 6X12 W.LOC

0015060120

Unavailable

30

THERMOSTAT CPL. RACING 2000

59035013044

Unavailable

31

O-RING 32,00X2,00

0770320020

Unavailable

32

THERMOSTAT 70 DEGREES '94

58335017000

Unavailable

33

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable
