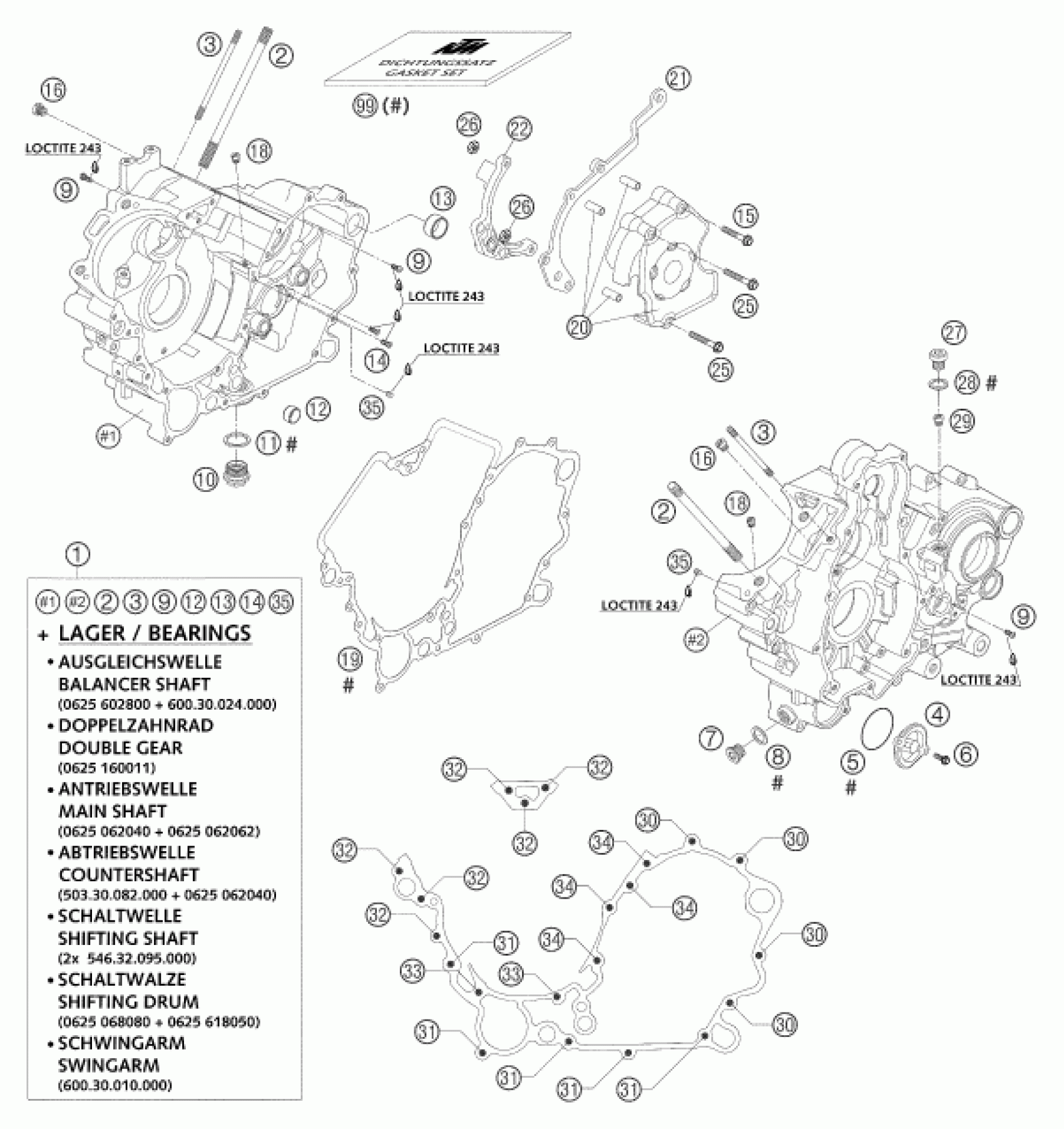

KTM 1190 RC 8 2007 ENGINE CASE Diagram

#

Description
Price

1

ENG CASE CPL. W.BEARINGS 03

60030000044

Unavailable

2

STUD M 10X161 10.9 03

60030043000

Unavailable

3

STUD M 6X101 10.9 03

60030043010

Unavailable

4

OIL FILTER COVER RACING

59038041000

Unavailable

5

O-RING 40,00X2,50 NBR 70

0770400025

Unavailable

6

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

7

PLUG SCREW M14X1,5 ALU AH

60038033050

Unavailable

8

CU-SEAL RING 14X20X1,5 LC8 02

0603142016

Unavailable

9

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

10

DRAIN PLUG W. MAGNET

58038019050

Unavailable

11

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

12

DOWEL 17 X 14 X 9,5

58330023000

Unavailable

13

DOWEL 20,1X24X12 03

60030023000

Unavailable

14

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

15

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

16

JET 60 DELLORTO M6X0,75

59030054000

Unavailable

18

CARBURETOR JET DELLORTO 90

57031523090

Unavailable

19

ENGINE CASE GASKET LC8

60030039000

Unavailable

20

CHAIN SPROCKET COVER CPL. 03

60030060044

Unavailable

21

CHAIN FAIL. PROTECTION LC8 03

60030047000

Unavailable

22

ADAPTER F. HYDR. CLUTCH 03

60032063000

Unavailable

25

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

26

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

29

REDUCING JET ''30'' M6X0,75

60038029000

Unavailable

30

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

31

HH COLLAR SCREW M 6X60 WS=8

0015060603

Unavailable

32

HH COLLAR SCREW M 6X65 WS=8

0015060653

Unavailable

33

HH COLLAR SCREW M 6X75 WS=8

0015060753

Unavailable

34

HH COLLAR SCREW M 6X90 WS=8

0015060903

Unavailable

35

THREAD PIN DIN0551-M 6X 5

0551060050

Unavailable

99

GASKET SET CPL. 03

60030099000

Unavailable
