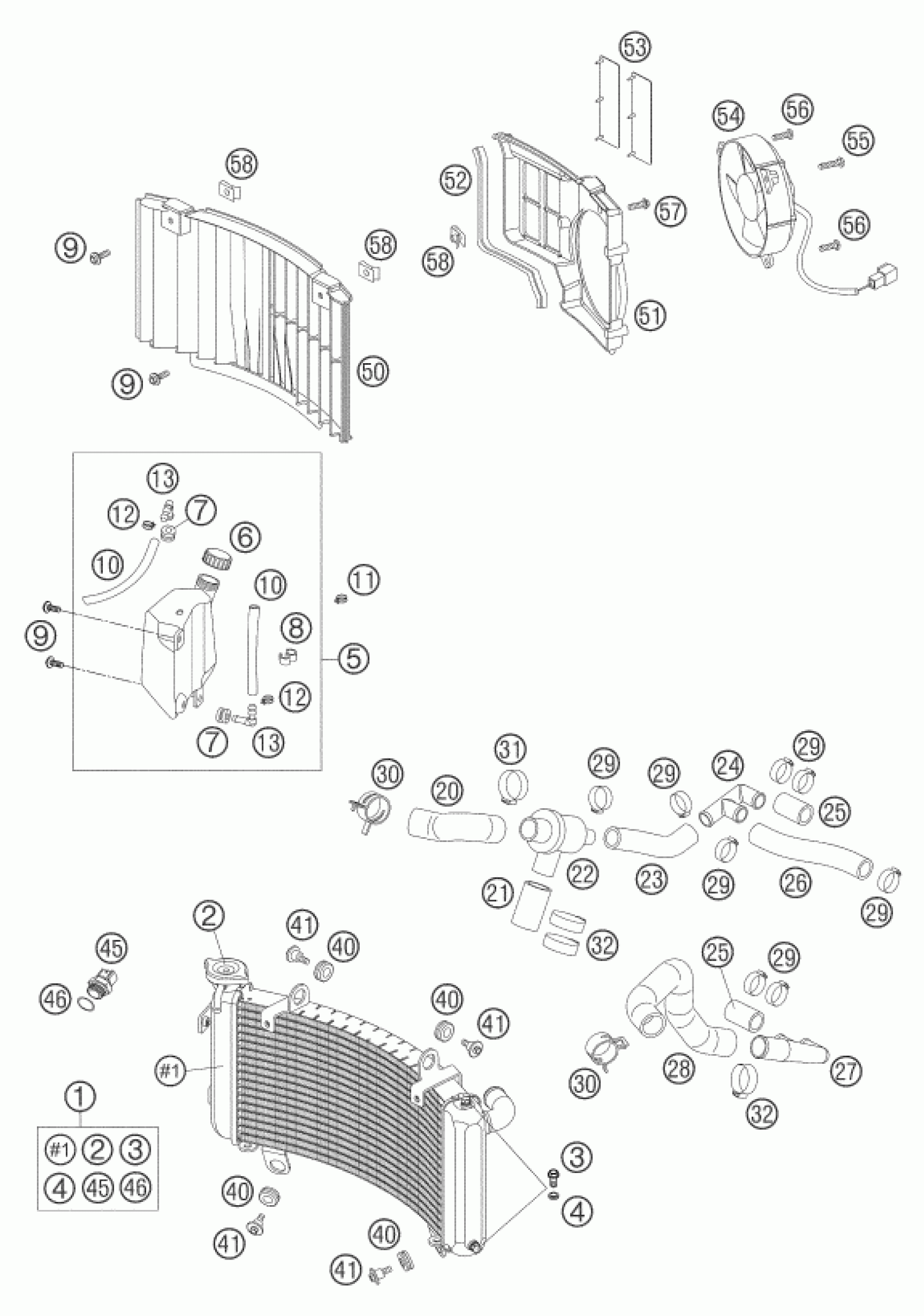

KTM 1190 RC 8 2007 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR LC8 03

60035010000

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

3

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

4

WASHER DIN0125-A 6,4

0125060003

Unavailable

5

WATER EXPANSION TANK 03

60035065000

Unavailable

6

PLUG F. EXPANSION TANK

60035066000

Unavailable

7

RUBBER GROMMET 6X9X13MM 04

60035069000

Unavailable

8

DISTANCE HOLDER 10/10 BLACK

60038039000

Unavailable

9

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

11

HOSE CLAMP YDNAC 10119 11MM

50231005000

Unavailable

12

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

13

Angle piece, reservoir

60035068000

Unavailable

20

RADIATOR HOSE THERM./RAD.

60035031000

Unavailable

21

RADIATOR HOSE THERM./PUMP 03

60035030000

Unavailable

22

THERMOSTAT 75° CPL. W. CASE 03

60035017000

Unavailable

23

RADIATOR HOSE THERM./DISTR. 03

60035025000

Unavailable

24

DISTRIBUTOR R/S 18/18/18MM 03

60035019000

Unavailable

25

RADIATOR HOSE CYL./DISTR. 03

60035026000

Unavailable

26

RADIATOR HOSE DISTR./DISTR. 03

60035027000

Unavailable

27

DISTRIBUTOR L/S 18/18/25MM 03

60035028000

Unavailable

28

RADIATOR HOSE RADIATOR L/S 03

60035024000

Unavailable

29

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

Unavailable

30

CLAMP STD DN32

00049320121

Unavailable

31

VARIABLE ONE-EAR CLAMP 34,6MM

00050346706

Unavailable

32

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

41

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

45

THERMOSWITCH LC8 102DG '03

60035045000

Unavailable

46

O-ring 17X1.5

0770017015

Unavailable

50

RADIATOR PROTECTOR 03

60035040000

Unavailable

51

FAN COWL L/S 03

60035044000

Unavailable

52

EDGE PROTECTOR PER METER

58312085100

Unavailable

53

FAN FLAP RUBBER LC4 2000

58435044050

Unavailable

54

FAN L/S 03

60035041000

Unavailable

55

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

56

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

57

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

58

clip nut M6

54603048100

Unavailable
