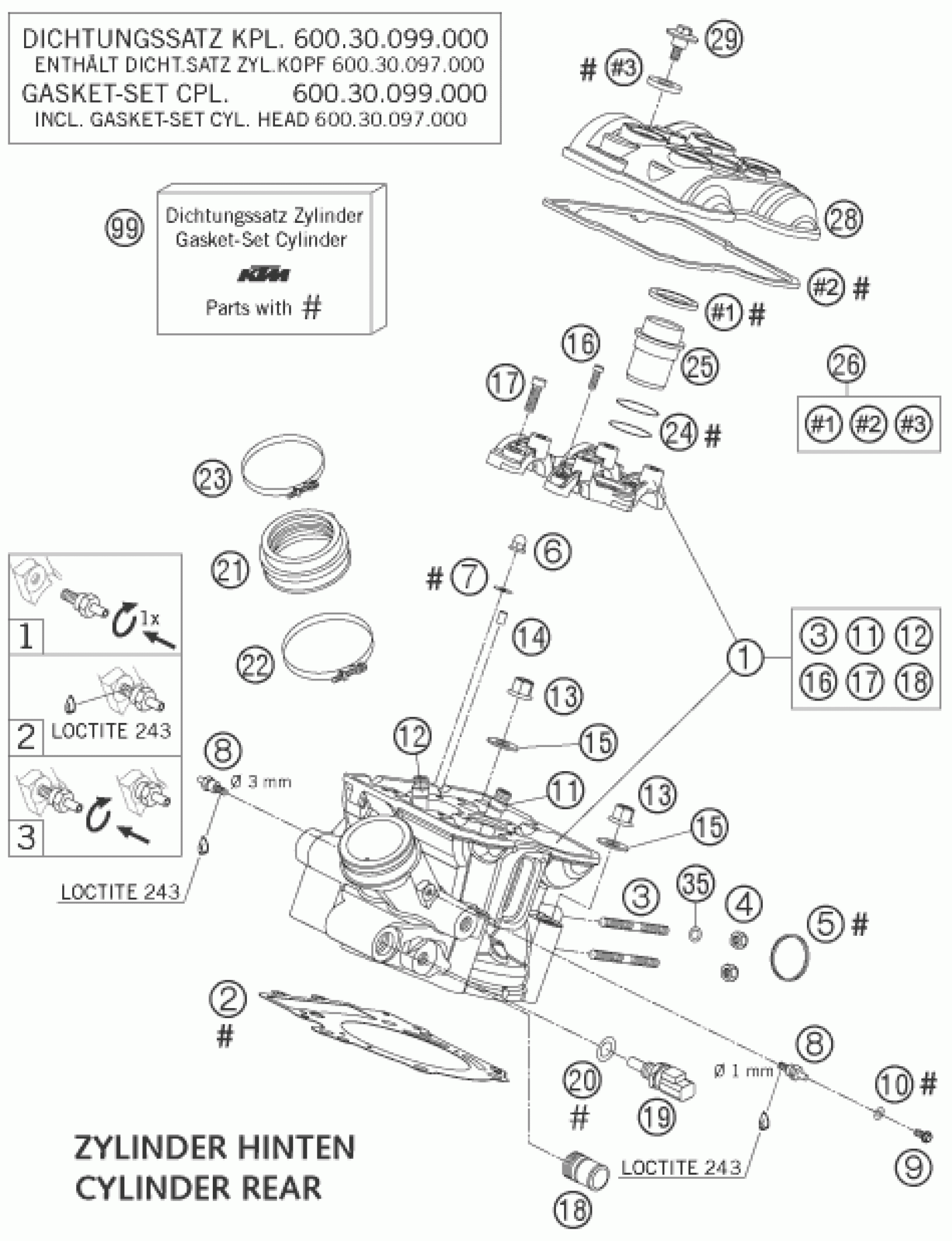

KTM 1190 RC 8 2007 CYLINDER HEAD REAR Diagram

#

Description
Price

1

CYLIDNER HEAD CPL. REAR 03

60036120044

Unavailable

2

CYLINDER HEAD GASKET 0,5 101MM

60030036000

Unavailable

3

STUD M 8X16 10.9

0835080165

Unavailable

4

self-locking nut M8 Cu

51010086100

Unavailable

5

GASKET 03

60005005000

Unavailable

6

CAP NUT M6 DIN1587 02

0587060000

Unavailable

7

WASHER DIN0125-A 6,4

0125060003

Unavailable

8

VACUUM CONECTION M6/3MM '97

58336020190

Unavailable

8

VACUUM CONECTION 05

61036023000

Unavailable

9

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

10

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

11

VALVE GUIDE EXHAUST 03

60036026000

Unavailable

12

VALVE GUIDE INTAKE 03

60036025000

Unavailable

13

COLLAR NUT M 10 WS=13

60036078100

Unavailable

14

needle roller DIN 5402 5x9.8

0402050980

Unavailable

15

SHIM 10,2X19X1,5MM 05

60036078050

Unavailable

16

AH SCREW DIN0912-M 6X25 10.9

0912060255

Unavailable

17

AH SCREW DIN7984-M 8X30 10.9

0984080305

Unavailable

18

HOSE CONNECTOR M 20 X 1,5

58030010000

Unavailable

19

TEMPERAT.-SENSOR WATER LC8 02

60011252000

Unavailable

20

o-ring 10.00x2.00 silicone

0770100020

Unavailable

21

INTAKE BOOT 03

60036044000

Unavailable

22

HOSE CLAMP GEMI 62 MM 03

60036047100

Unavailable

23

HOSE CLAMP GEMI 56MM 03

59030061100

Unavailable

24

O-RING 29,87X1,78 VITON

0770298178

Unavailable

25

INSERT SPARK-PLUG SHAFT LC8 03

60036075000

Unavailable

26

VALVE COVER GASKET SET FR+RR

60036099000

Unavailable

28

VALVE COVER REAR 03

60036152000

Unavailable

29

collar screw M 6 WS=10 03

60036052020

Unavailable

35

washer DIN 125 A -8.4

0125080003

Unavailable

99

GASKET SET CYL. HEAD KPL. 03

60030097000

Unavailable
