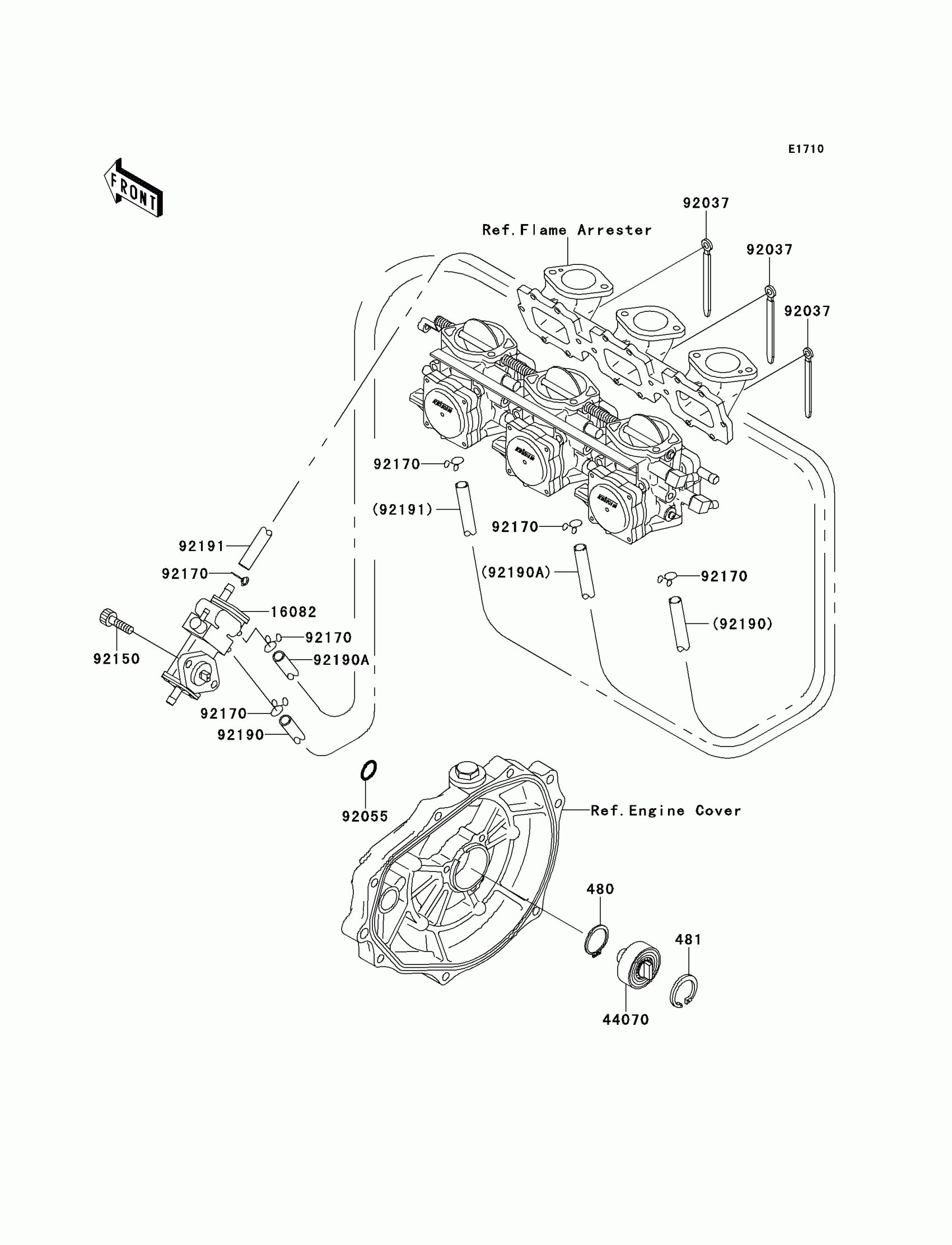

Kawasaki 1100 STX Oil Pump Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

16082

PUMP-ASSY-OIL

16082-3720

$333.73

44070

DAMPER-ASSY

44070-3701

$194.54

92037

CLAMP,L=100

92037-3736

$4.85

92055

RING-O,19.5X1.5

92055-055

$3.29

92150

BOLT,SOCKET,6X25

92150-3830

Unavailable

92170

CLAMP

92170-3750

$3.65

92190

TUBE,6X12X600

92190-3947

$17.72

92190A

TUBE,RR,CARBURETOR

92190-3967

$16.98

92191

TUBE

92191-3780

Unavailable
